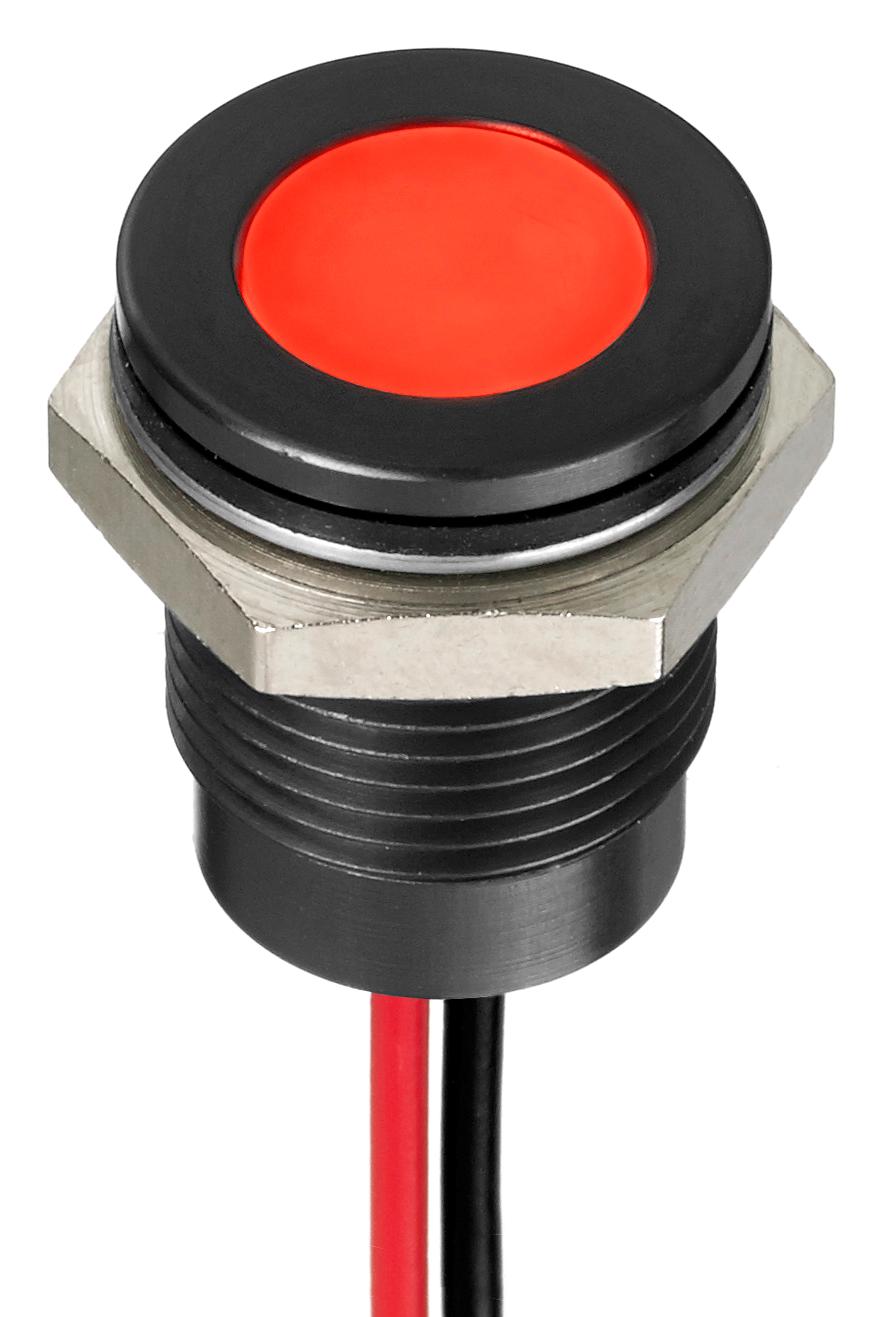

Apem Q14F5BXXHR24E LED Indicator
The Q14 series are 14 mm panel mount LED indicators designed for reliable illumination in various applications. These indicators feature high-brightness LEDs, including options for RGB, bi-color, and tri-color configurations, with diffused epoxy lenses for water-clear brightness. They come with multiple mounting options such as flush, recessed, or with solder lug/faston terminals, and are constructed with plated brass bezels finished in chrome, black, or satin grey. Sealed versions with IP67 protection are available, operating efficiently within temperature ranges of -40 °C to +85 °C, offering long life expectancy of 100,000 hours, and suitable for diverse industrial environments.
Apem Q14F5BXXHR24E LED Indicator Specifications:
- Diameter: 14 mm
- Lens Types: Diffused epoxy for water-clear brightness
- LED Types: High Brightness, Super Bright, RGB, Bi-color, Tri-color
- Materials: Plated brass bezel in chrome, black, satin grey; molded polycarbonate rear body
- Mounting Options: Flush, recessed, with solder lug or faston terminals
- Sealing: IP67 water-resistant option
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -30 °C to +65 °C
- Viewing Angle: 30-100° (model dependent)
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Panel Thickness: Max 11 mm
- Torque: 75 cNm
Buy the Buy APEM Q14 Series LED Indicator Part Number Q14F5BXXHR24E Online
Discover the high-quality Q14 series LED indicators for industrial applications. These 14 mm panel mount indicators feature high-brightness, waterproof IP67 protection, and multiple mounting styles including flush and recessed. Available with diffused epoxy lenses for water-clear visibility, they support RGB, bi-color, and tri-color configurations for versatile signaling needs. Constructed with durable plating and sealed enclosures, they operate efficiently from -40 °C to +85 °C, offering long-lasting performance of 100,000 hours, ideal for demanding environments requiring clear, reliable illumination.
Order your APEM Q14 Series LED Indicator Part Number Q14F5BXXHR24E today and ensure reliable, bright illumination for your industrial panels and equipment.
