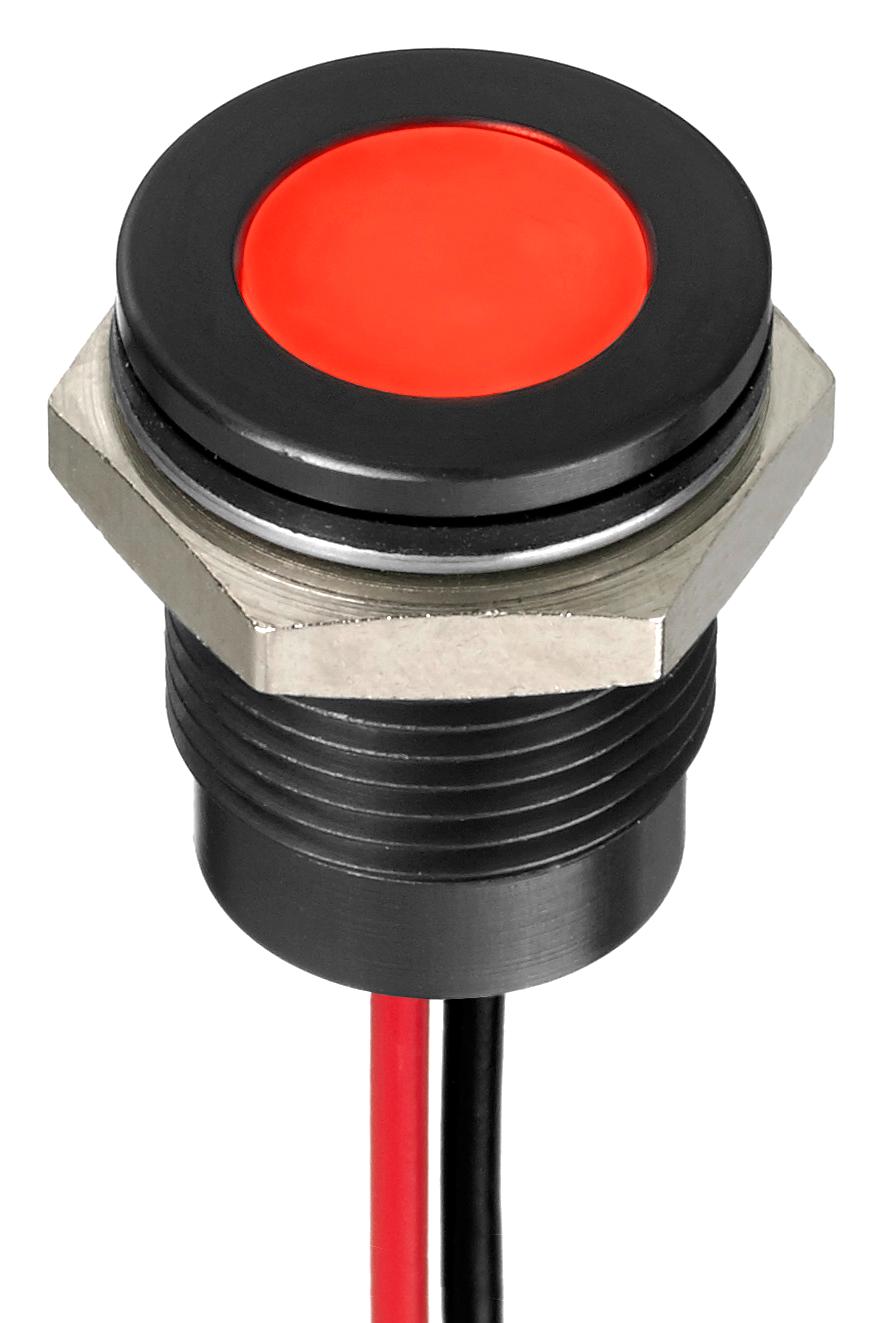

Apem Q14F5BZZRGB24ECA LED Indicator
The Q14 series is a range of 14 mm panel mount LED indicators designed for various industrial and electronic applications. These indicators feature high brightness LEDs available in RGB, water-clear or diffused lenses, and a prominent or recessed bezel style in different finishes. They support multiple mounting options including solder lug, faston terminals, pins, or long wires up to 200 mm. Sealing options include IP67, and they function across a wide temperature range with durable materials like plated brass and molded polycarbonate. Ideal for signaling and status indication, these indicators offer high longevity and environmental resistance.
Apem Q14F5BZZRGB24ECA LED Indicator Specifications:
- Lens Diameter: 14 mm
- Lens Type: Diffused or water clear
- LED Types: RGB, Super Bright, Hyper Bright, Bi-color, Tri-color
- Operating Voltage: 1.8V to 28V DC, 110VAC, 220VAC
- Viewing Angles: 30-100°
- Life Expectancy: 100,000 hours
- Sealing: IP67 option available
- Materials: Plated brass bezel, molded polycarbonate body
- Max Panel Thickness: 11 mm
- Reverse Voltage: 5V max
- Temperature Range: -30°C to +85°C depending on body
- Torque: 75 cNm
- Terminals: Solder lug, Faston, pins, or 200 mm wires
Buy the APEM Series Q14 LED Indicators: Q14F5BZZRGB24ECA
Purchase the APEM Q14F5BZZRGB24ECA LED indicator online today for reliable performance in industrial signaling. These 14 mm panel-mounted indicators are designed for high brightness and durability with multiple mounting options including solder lug, faston terminals, pins, or long wires up to 200 mm. Ideal for indicators with IP67 sealing, they operate across wide temperature ranges and feature high longevity of up to 100,000 hours. Perfect for control panels, machinery, and electronic devices needing clear visual status communication.
Get APEM Q14F5BZZRGB24ECA today—built for precise signaling and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q14F5BZZRGB24ECA?
You can click on the BUY or RFQ button to purchase Q14F5BZZRGB24ECA from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5BZZRGB24ECA?
You can download the Q14F5BZZRGB24ECA datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5BZZRGB24ECA?
Apem
