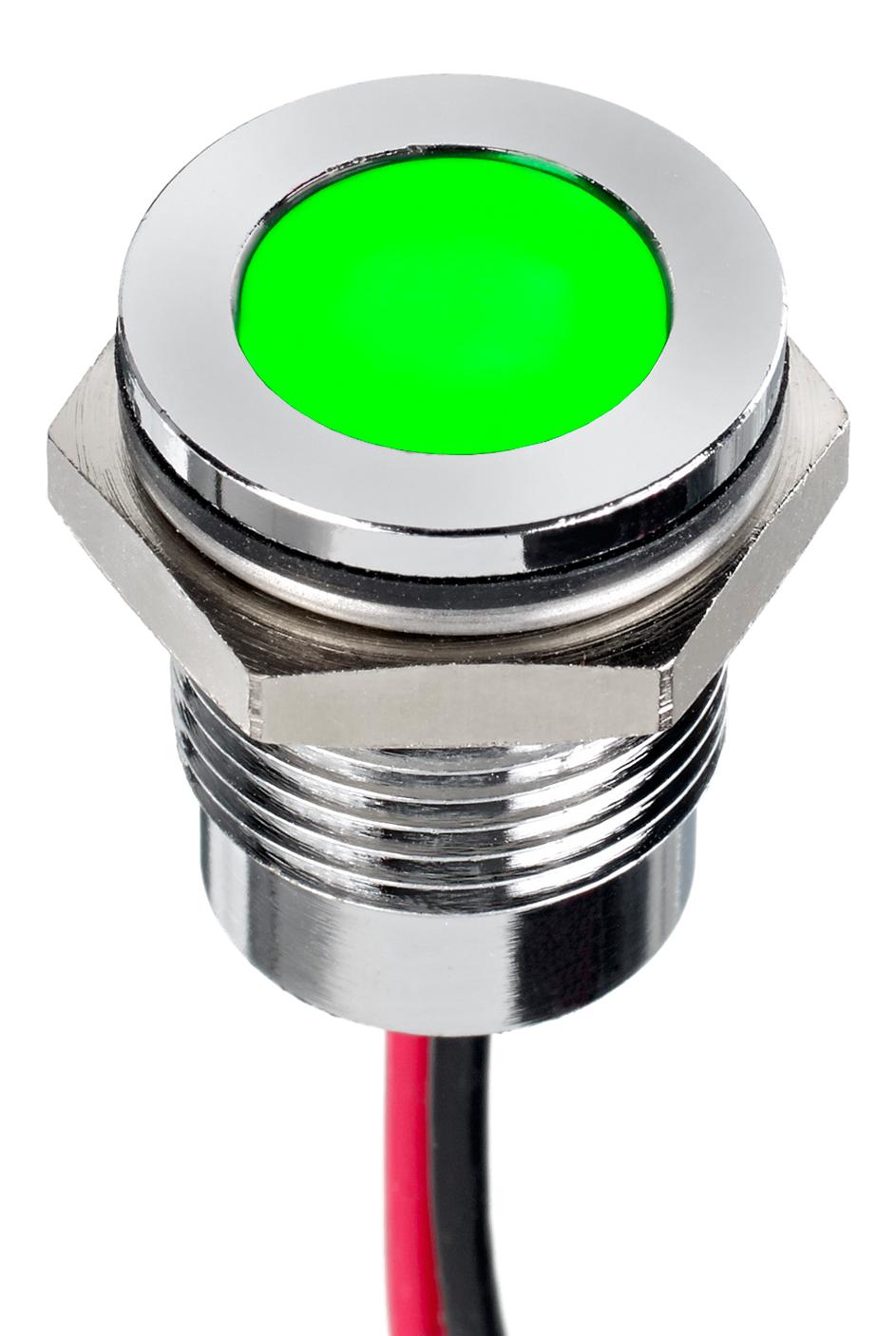

Apem Q14F5CYYRG02E LED Indicator Light
The Q14 series panel mount LED indicators feature 14 mm diameter with various bezel styles including prominent and recessed options. They offer bright and super bright LED illumination in multiple colors such as red, green, yellow, blue, and white, including bi-color and tri-color configurations. These indicators are designed with waterproof IP67 sealing, mounting on panels up to 11 mm thickness, and have a life expectancy of 100,000 hours. They can be terminated via solder lug, faston terminals, pins, or long wire leads, with customizable engraving options for branding or labeling.
Apem Q14F5CYYRG02E LED Indicator Light Specifications:
- Diameter: 14 mm
- Bezel Styles: Prominent, Recessed, Flush
- Sealing: IP67 (optional)
- Operating Temperature Rear plastic body: -30°C to +65°C, Rear epoxy body: -40°C to +85°C
- LED Colors: Red, Green, Yellow, Blue, White, RGB, Bi-color, Tri-color
- Forward Voltage: Red 2V, Green 2.2V, Yellow 2V, Blue 3V, White 3V, Orange 2V
- Luminous Intensity: Prominent, Super Bright, Hyper Bright options
- Lifespan: 100,000 hours
- Max Panel Thickness: 11 mm
- Terminals: Solder lug, Faston, Pins, 200 mm wire leads
- Operating Voltage: 1.8V to 33V DC, 110V/220V AC options
- Mounting Hole: M14x1.0
Buy the APEM Series Q14 LED Indicators: Q14F5CYYRG02E
Purchase the Q14 series LED indicator online today for reliable, bright illumination in control and industrial panels. These durable indicators feature waterproof IP67 sealing, multiple color options including RGB and bi-color, and various mounting styles like prominent, recessed, and flush. With a lifespan of 100,000 hours and optional custom engraving, they are ideal for demanding environments. The easy-to-install indicators support multiple termination methods such as solder lug, faston, pins, or long wire leads, ensuring flexible integration into your control systems. Order now for long-lasting, high-visibility indicator solutions.
Get APEM Q14F5CYYRG02E today—designed for durability, high brightness, and versatile mounting for industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q14F5CYYRG02E?
You can click on the BUY or RFQ button to purchase Q14F5CYYRG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5CYYRG02E?
You can download the Q14F5CYYRG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5CYYRG02E?
Apem
