Apem Q14P1BXXHG12E Panel Mount LED Indicator
The Q Series 14mm Panel Mount LED Indicators offer a robust and versatile lighting solution suitable for various industrial and control panel applications. Featuring prominent, flush-bezel designs with options including water-clear or diffused epoxy lenses, these indicators are available in multiple colors such as red, green, yellow, blue, white, and orange. Capable of operating at voltages from 2VDC to 220VAC, they include solder lug, faston terminals, or wire terminations, and can be sealed to IP67 standards for harsh environments. The indicators have a lifespan of 100,000 hours, with high brightness levels and custom engraving options, making them ideal for visibility and customization needs in industrial systems.
Apem Q14P1BXXHG12E Panel Mount LED Indicator Specifications:
- Diameter: 14mm (.551 inch)
- Lens: 10mm colored diffused epoxy or water-clear super bright LEDs
- Bezel: Plated brass in bright chrome, black chrome, or satin grey
- Body: Moulded polycarbonate rear body
- Electrical: 2VDC to 220VAC operation, 20mA max current
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100° depending on model
- Lifespan: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Sealing: IP67 (optional)
- Terminals: Solder lug, faston, pins, or wire (200mm)
- Max Torque: 75 cNm
- Physical Size: Panel cutout 14mm, maximum panel thickness 11mm
- Colors: Red, green, yellow, blue, white, orange
- Brightness: 17,000mcd (bright red), 11,000mcd (green), 4,000mcd (yellow), 250mcd (blue), 850mcd (orange), 1000mcd (white)

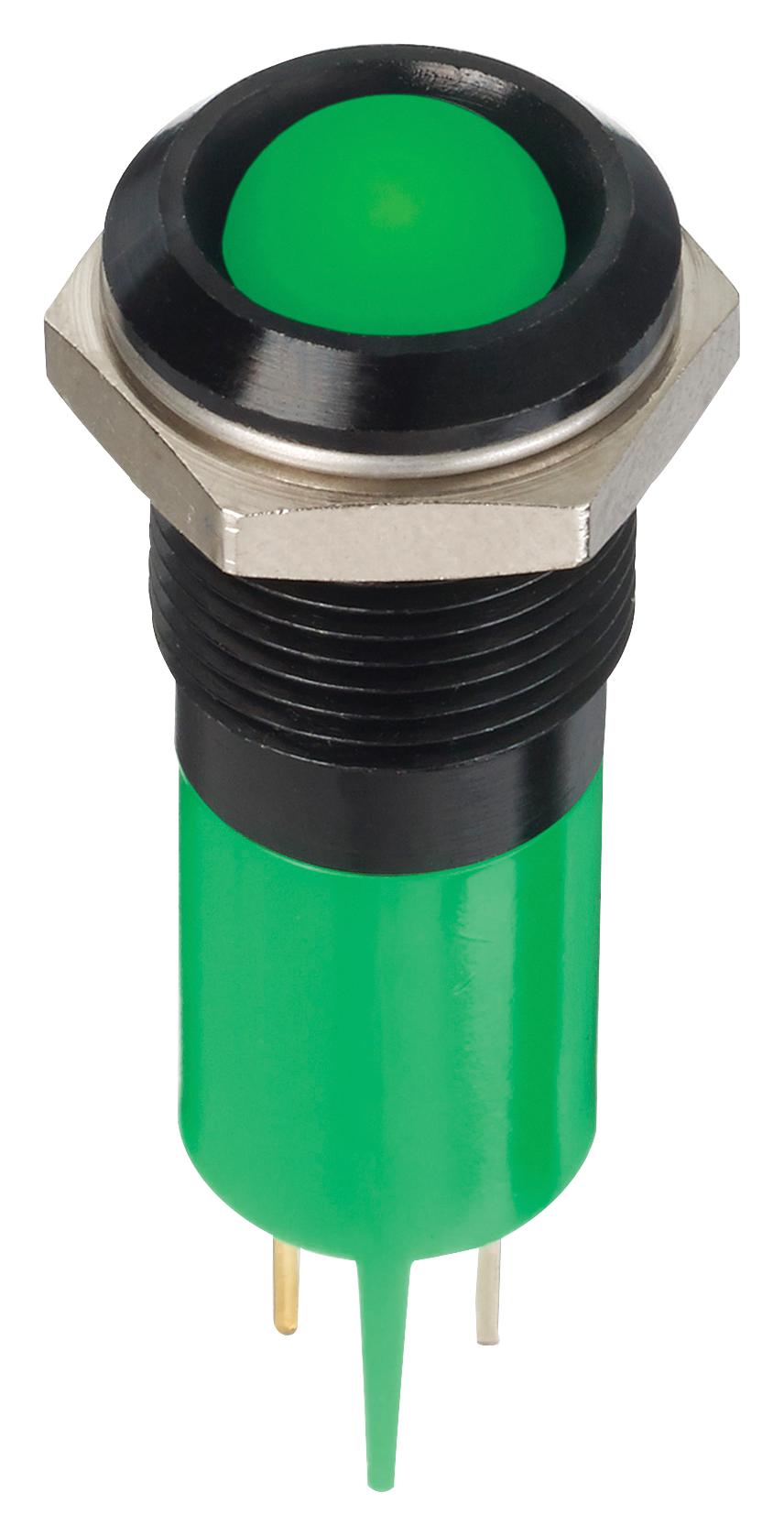

Buy the Apen Series Q14 LED Indicator: Q14P1BXXHG12E
Discover the reliable and highly visible Panel Mount LED Indicator from the Q Series by Apen, featuring a 14mm diameter, multiple color options, and sealed IP67 design. Perfect for industrial control systems, this indicator offers long lifespan up to 100,000 hours, operating at voltages from 2VDC to 220VAC. With easy-terminals like solder lug, faston, or wire, and optional custom engraving, it provides both flexibility and durability. Purchase online today to upgrade your control panels with clear, bright, and customizable LED indicators that withstand harsh environments.
Buy Apen Q14P1BXXHG12E LED indicator now and enhance visibility with high brightness and customizable options for industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q14P1BXXHG12E?
You can click on the BUY or RFQ button to purchase Q14P1BXXHG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1BXXHG12E?
You can download the Q14P1BXXHG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1BXXHG12E?
Apem
