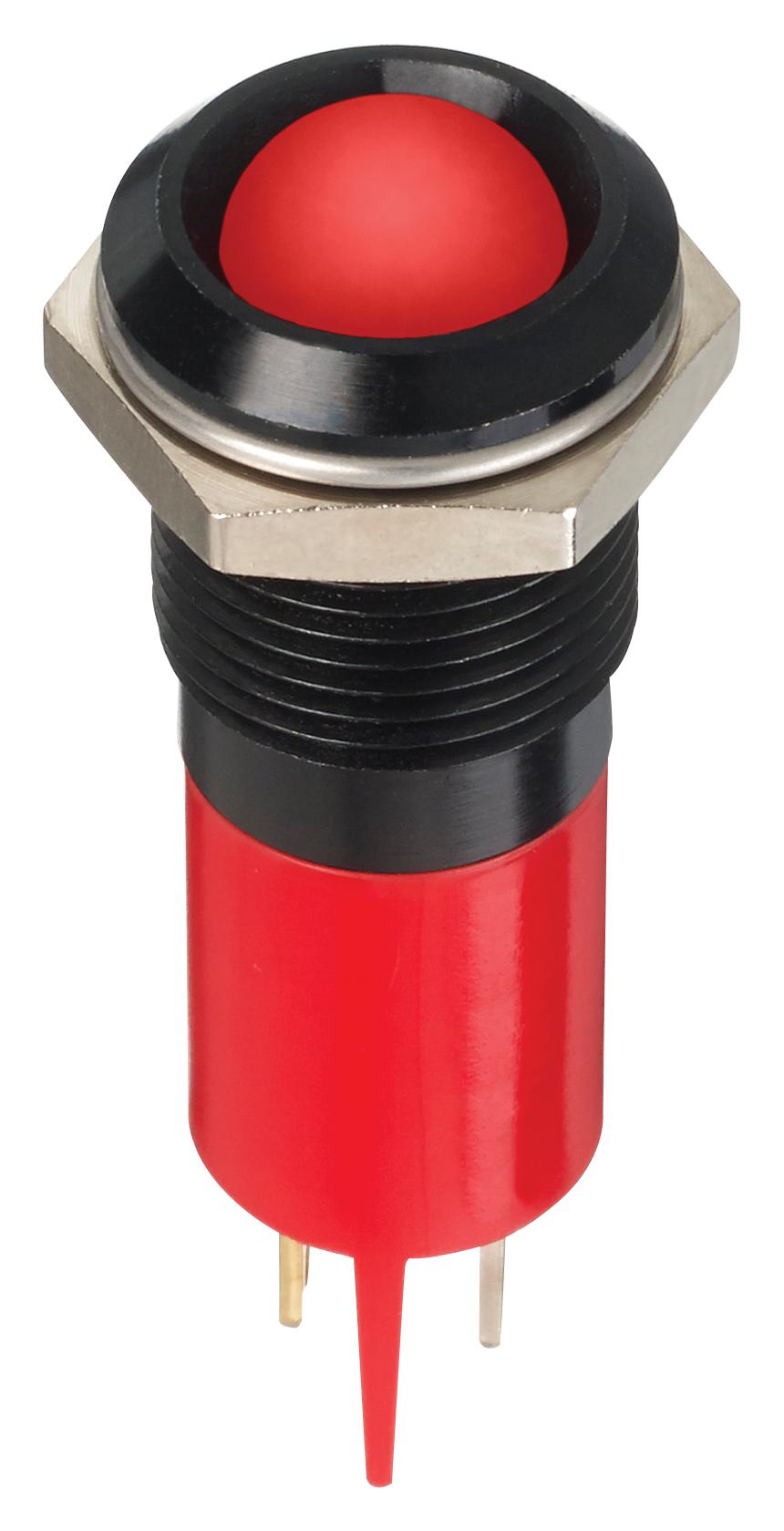

Apem Q14P1BXXHR12E LED Indicator
The Q series panel mount LED indicators feature 14mm prominent bezel designs with various color options, including red, green, yellow, blue, white, and orange. They are available with diffused epoxy lenses or super bright LED options, suitable for panel sealing up to IP67. Operating from 2VDC to 220VAC, these indicators offer a viewing angle of 30-100°, a lifespan of 100,000 hours, and a maximum reverse voltage of 5V. They include solder lug/faston terminals, optional custom engraving, and robust construction for industrial and automation applications.
Apem Q14P1BXXHR12E LED Indicator Specifications:
- Diameter: 14mm (0.551 inch)
- Bezel: Plated brass, bright chrome, black chrome, or satin grey finish
- Lens: 10mm diffused epoxy or water clear super bright LED
- Voltage Range: 2VDC to 220VAC (varies by model)
- Operating Current: 20mA max
- Reverse Voltage: Max 5V
- Viewing Angle: 30-100°
- Lifespan: 100,000 hours
- Temperature Range: -40°C to +85°C
- Sealing: IP67 (optional) for panel sealing
- Terminals: Solder lug, faston, pins, or wire termination (200mm)
- Operating Temperature: -40°C to +85°C
- Standards: UL Recognized, IP67 sealing option
- Max Panel Thickness: Up to 11mm
Buy the Buy APEM Q Series Panel Mount LED Indicator Part Number Q14P1BXXHR12E Online
Secure your APEM Q Series LED Indicator online today to ensure dependable signaling for industrial, automation, and control panel applications. Featuring wide voltage compatibility, IP67 sealing, and long lifespan, these 14mm indicators deliver superb visibility and durability. Easy to install with various terminal options, they support customized engraving and come in vibrant colors like red, green, yellow, blue, and white. Perfect for demanding environments, they ensure efficient operation and are UL recognized, making them an excellent choice for complex electrical systems.
Order your APEM Q Series Q14P1BXXHR12E bright LED indicator today and enhance your control panels with reliable, high-quality lighting components.
