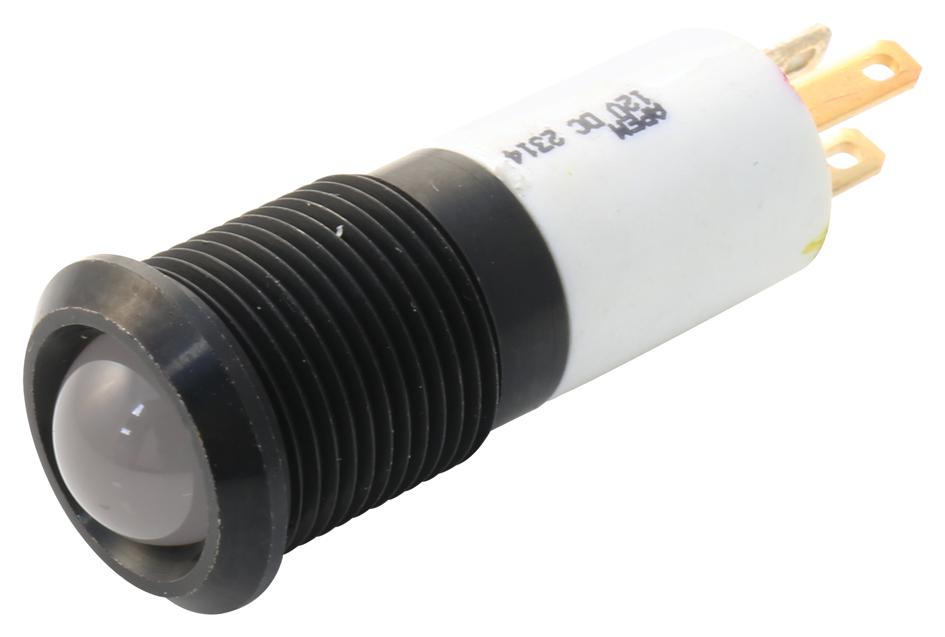

Apem Q14P1BZZRYG12E Tri-Color Panel Mount LED
The 14mm diameter panel mount LED indicator features prominent tri-color illumination with red, green, and yellow colors. Designed for durability and versatility, it is IP67 sealed, offering protection against dust and water ingress. The bezel comes in bright chrome, black chrome, or satin grey finishes, with options for custom engraving. It operates across multiple voltages including 12VDC, 24VDC, 110VAC, and 220VAC, with a life expectancy of 100,000 hours. Suitable for industrial and control panel applications, it boasts a flush or prominent bezel style and various termination options for flexible installation.
Apem Q14P1BZZRYG12E Tri-Color Panel Mount LED Specifications:
- Diameter: 14mm (.551 inches)
- Sealing: IP67 for dust and water resistance
- LED Colors: Red, Green, Yellow (Tri-color)
- Operating Voltages: 12V, 24V, 110VAC, 220VAC, others available
- Life Expectancy: 100,000 hours
- Bezel Finish: Bright chrome, black chrome, satin grey
- Terminals: Solder lug / Fastons, pins, or wire termination
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Operating Temperature Range: -40°C to +85°C
- Forward Voltage: Red 2.0V, Green 2.2V, Yellow 2.1V
- Housing Material: Moulded polycarbonate, plated brass bezel
- Max Panel Thickness: 11mm
- Cable Length: Standard 200mm, 22AWG
- Certification: UL Recognized
Buy the APEM Series Q14 Tri-Color LED: Q14P1BZZRYG12E
Enhance your control panels with the durable APEM Tri-Color Panel Mount LED indicator. Featuring prominent illumination, IP67 sealing for water and dust resistance, and a sleek bezel in various finishes. Ideal for industrial environments, it supports multiple voltages including 12V, 24V, 110VAC, and 220VAC, providing up to 100,000 hours of reliable service. Easy to install with various termination options, this versatile LED indicator combines visibility, robustness, and customization, making it perfect for machinery, automation, and control solutions.
Get APEM Q14P1BZZRYG12E today—built for durability and versatile control applications.
Frequently Asked Questions
Where can I buy Apem Q14P1BZZRYG12E?
You can click on the BUY or RFQ button to purchase Q14P1BZZRYG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1BZZRYG12E?
You can download the Q14P1BZZRYG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1BZZRYG12E?
Apem
