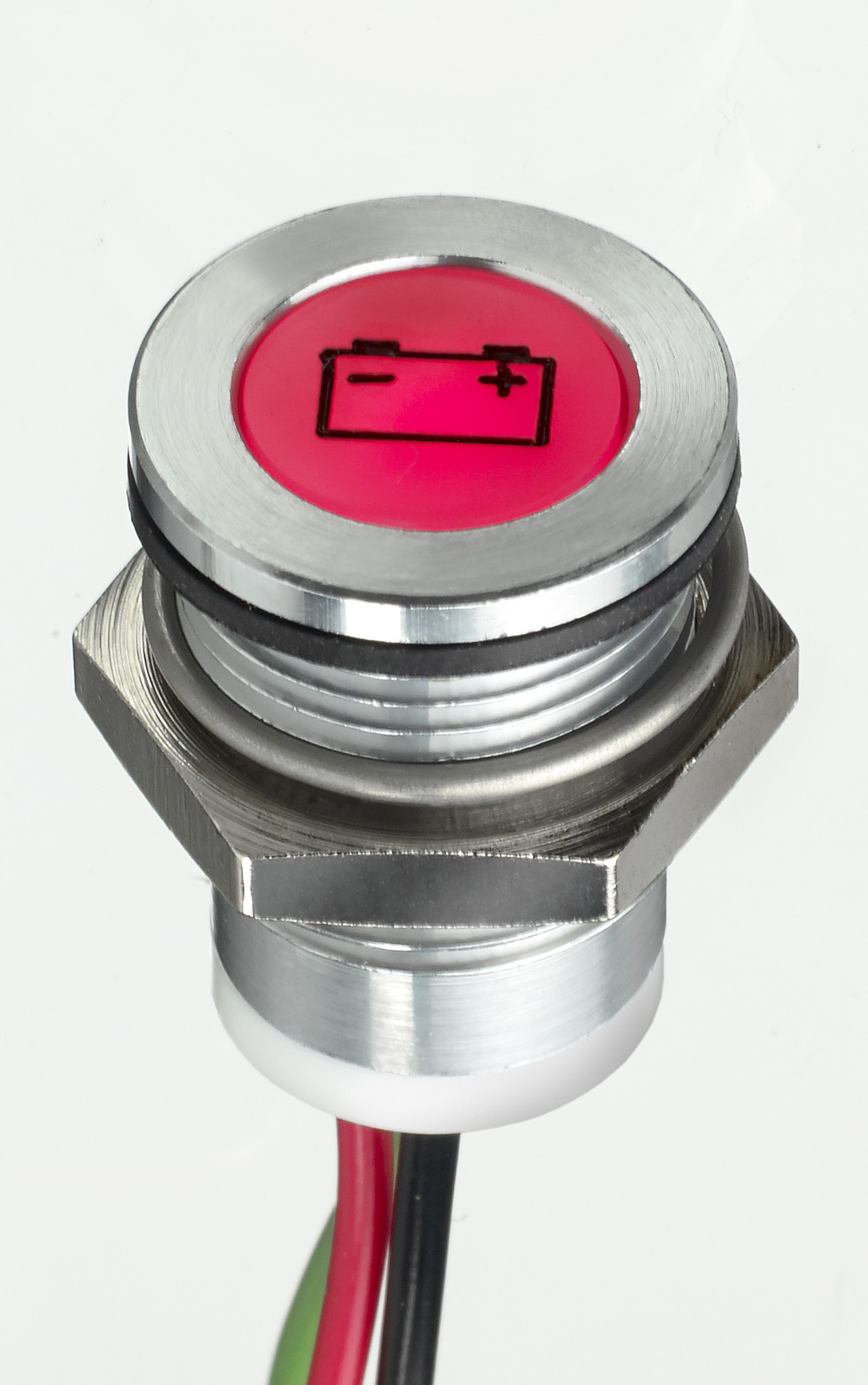

Apem Q14P1CXXG24E LED Indicator Light
The 14mm panel mounting LED indicator features a bright chrome bezel and prominent flush style, offering high visibility with diffused epoxy lenses. It operates across a voltage range from 2VDC to 220VAC, with options including bi-color and tri-color indicators. Designed for durability, it is IP67 sealed, resistant to dust and water ingress, and supplied with fixing nut and spring washer for secure mounting. Suitable for industrial applications such as status indication, automation, and machinery control panels. It provides long life expectancy of 100,000 hours and a wide operating temperature range from -40°C to +85°C, ensuring reliable performance in harsh environments.
Apem Q14P1CXXG24E LED Indicator Light Specifications:
- Bezel Diameter: 14mm
- Bezel Style: Prominent, flush
- Bezel Finish: Bright chrome, black chrome, satin grey options
- Lens Type: 10mm diffused epoxy or water-clear super bright LEDs
- Voltage Range: 2VDC to 220VAC (including bi-color and tri-color options)
- Operating Voltage: 1.8 to 253VDC, 99 to 121VDC, 207 to 253VDC
- Operating Current: 3mA to 20mA depending on model and voltage
- Light Intensity: Up to 7500 mcd (super bright models)
- Viewing Angle: 100°
- Life Expectancy: 100,000 hours
- Operating Temperature: -40°C to +85°C
- IP Rating: IP67 sealing (EN60529)
- Housing Material: Metal bezel with epoxy lens
- Terminals: 2.8 x 0.8 mm or 200mm wire options
- Max Panel Thickness: 11mm
- Certifications: UL Recognized Component
Buy the Q-SERIES 14mm – Reliable Indicator Lights for Industrial Applications
Purchase the high-quality LED indicator light online today to enhance your industrial control systems. Featuring a 14mm chrome bezel, IP67 sealing for water and dust resistance, and multiple voltage options, this indicator ensures high visibility and durability. Its long life expectancy of 100,000 hours makes it ideal for harsh environments. With easy mounting, various color and style options, and UL recognition, it is perfect for automation, machinery, and signaling projects. Order now to ensure reliable performance and quick delivery for your industrial applications.
Get Q-SERIES 14mm LED indicator today—built for precision and long-lasting durability in industrial control panels.
