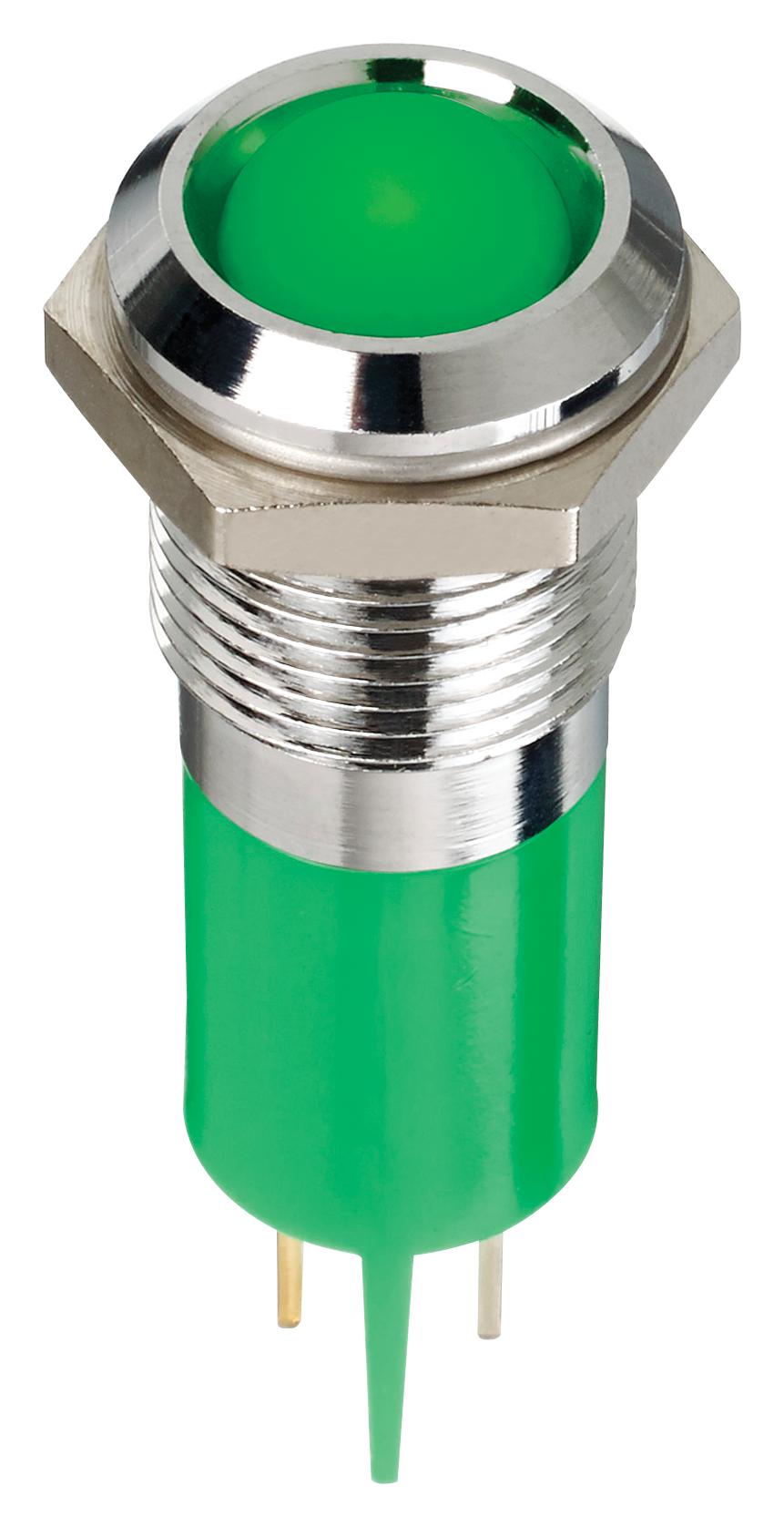

Apem Q14P1CXXHG24E Panel Mount LED Indicator
The Q14 series panel mount LED indicators feature 14 mm diameter with distinctive bezel styles, including prominent, flush, recessed, and rear epoxy designs. They utilize high-brightness LEDs with various coloration options such as red, green, yellow, blue, orange, and white, offering voltages from 2V to 220VAC. These indicators are sealed to IP67 standards, operate within -40°C to +85°C, and include multiple terminal configurations like solder lug, faston, pins, or wires. Constructed with plated brass bezels and molded polycarbonate bodies, they provide long-lasting performance suitable for dashboard or control panel applications.
Apem Q14P1CXXHG24E Panel Mount LED Indicator Specifications:
- Diameter: 14 mm
- Bezel Material: Plated brass, chrome or satin grey finish
- Body Material: Moulded polycarbonate
- Sealing: IP67 (optional)
- Operating Temperature Range: -40 °C to +85 °C
- Storage Temperature Range: -30 °C to +65 °C
- Ingress Protection: IP67 (optional sealing)
- LED Colors: Red, green, yellow, blue, orange, white
- Voltage Range: 2 V to 220 VAC/DC
- Viewing Angle: 30-100°
- Lifespan: 100,000 hours
- Panel Thickness: Max 11 mm
- Mounting Hole: 14 mm
- Terminals: Solder lug, faston, pins, or wires
- Construction: Brass bezel, epoxy or plastic body
- Special Features: Custom engraving available
Buy the APEM Series Q14 LED: Panel Mount Indicators
Order the APEM Q14 series panel mount LED indicator online today to ensure reliable, long-lasting illumination for your control applications. These premium indicators feature IP67 sealing, high-brightness LEDs, and a variety of mounting options, making them ideal for industrial, automotive, and instrumentation panels. Easy to install with solder lug, faston, pins, or wires, they deliver excellent visibility and durability in harsh conditions. Buy online now for fast delivery and professional-grade performance.
Get APEM Q14 LED indicators today—built for durability and high visibility in demanding control panel environments.
Frequently Asked Questions
Where can I buy Apem Q14P1CXXHG24E?
You can click on the BUY or RFQ button to purchase Q14P1CXXHG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1CXXHG24E?
You can download the Q14P1CXXHG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1CXXHG24E?
Apem
