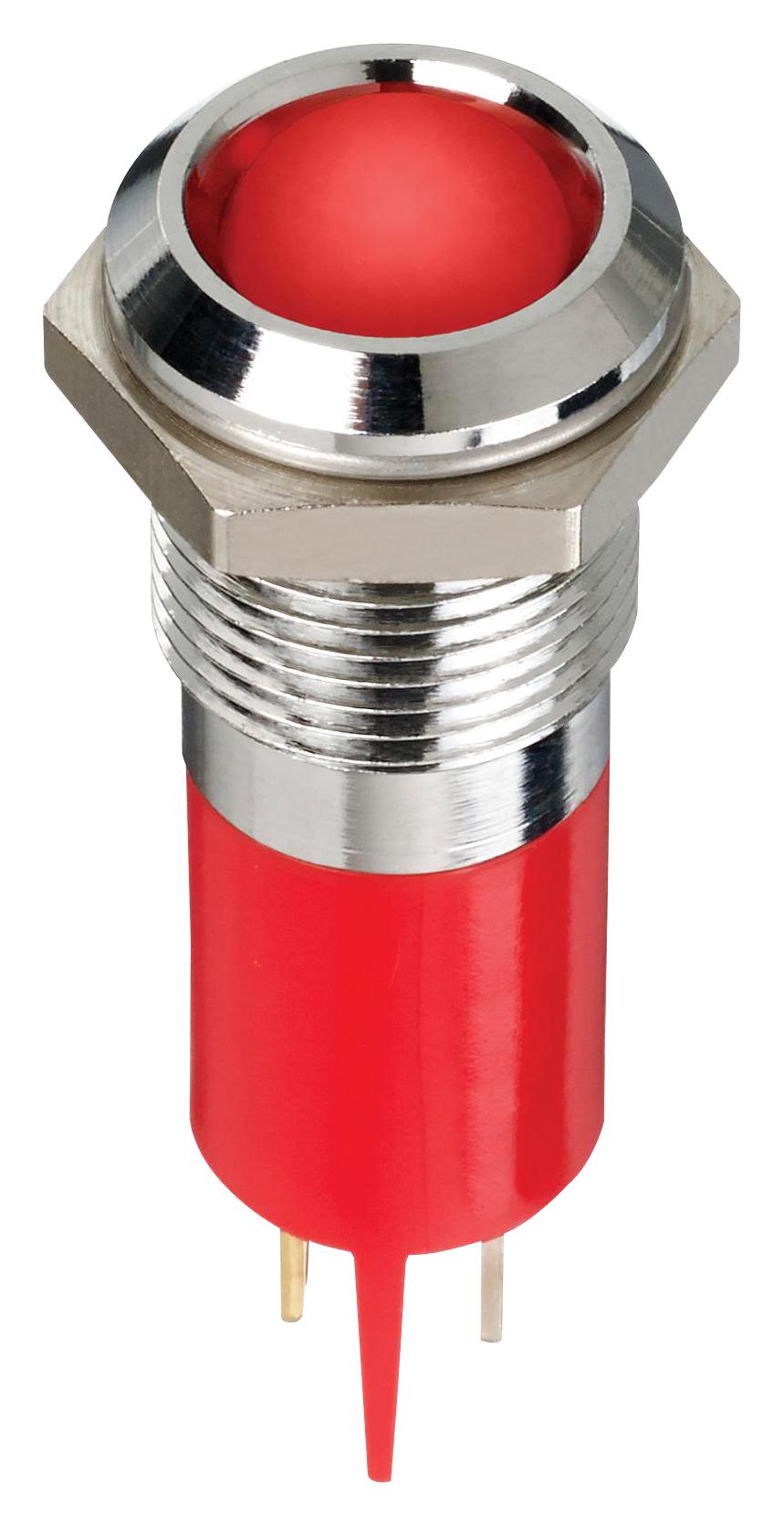

Apem Q14P1CXXR24 Panel Mount LED Indicator
The Q14P1CXXR24 from APEM is a high-quality 14mm panel mount LED indicator featuring a bright chrome-plated brass bezel and molded polycarbonate rear body. Ideal for process controls, electrical appliances, communication systems, and industrial equipment, it operates at 21.6 to 26.4V DC with 20mA current. It offers a 10mm diffused epoxy lens or water-clear super bright LED, with a built-in fixing nut and spring washer for secure mounting. Ensuring durability, it is unsealed, UL recognized, has a viewing angle of 30° to 100°, and a lifespan of 100,000 hours in temperatures from -40°C to +85°C.
Apem Q14P1CXXR24 Panel Mount LED Indicator Specifications:
- Material: Plated brass bezel finished in bright chrome
- Rear body: Moulded polycarbonate
- Lens: 10 mm diffused epoxy or water-clear super bright LED
- Operation Voltage: 21.6 to 26.4V DC
- Current: 20 mA
- Viewing Angle: 30° to 100°
- Luminous Intensity: 80mcd (standard)
- Life Expectancy: 100,000 hours
- Temperature Range: -40°C to +85°C
- Max Reverse Voltage: 5V
- Forward Voltage: 2V (Red LED)
- Terminals: Solder lug or faston 2.8 x 0.8mm
- Sealing: Unsealed
- Mounting: Fixing nut and spring washer included
- Dimensions: Panel thickness up to 11mm
Buy the APEM Series Q14 Panel Mount LED Indicator: Q14P1CXXR24
Order the APEM Q14P1CXXR24 panel mount LED indicator online today. Featuring a durable chrome bezel, super bright LED, and secure mounting hardware, it's ideal for industrial control panels and communication systems. Operating between 21.6 and 26.4V DC with a lifespan of 100,000 hours, this indicator ensures long-term performance in temperature ranges from -40°C to +85°C. Enhance your equipment with this reliable, professional-grade LED indicator for clear, visible signaling in various industrial applications.
Buy APEM Q14P1CXXR24 now and experience unmatched reliability and performance in industrial signaling solutions.
