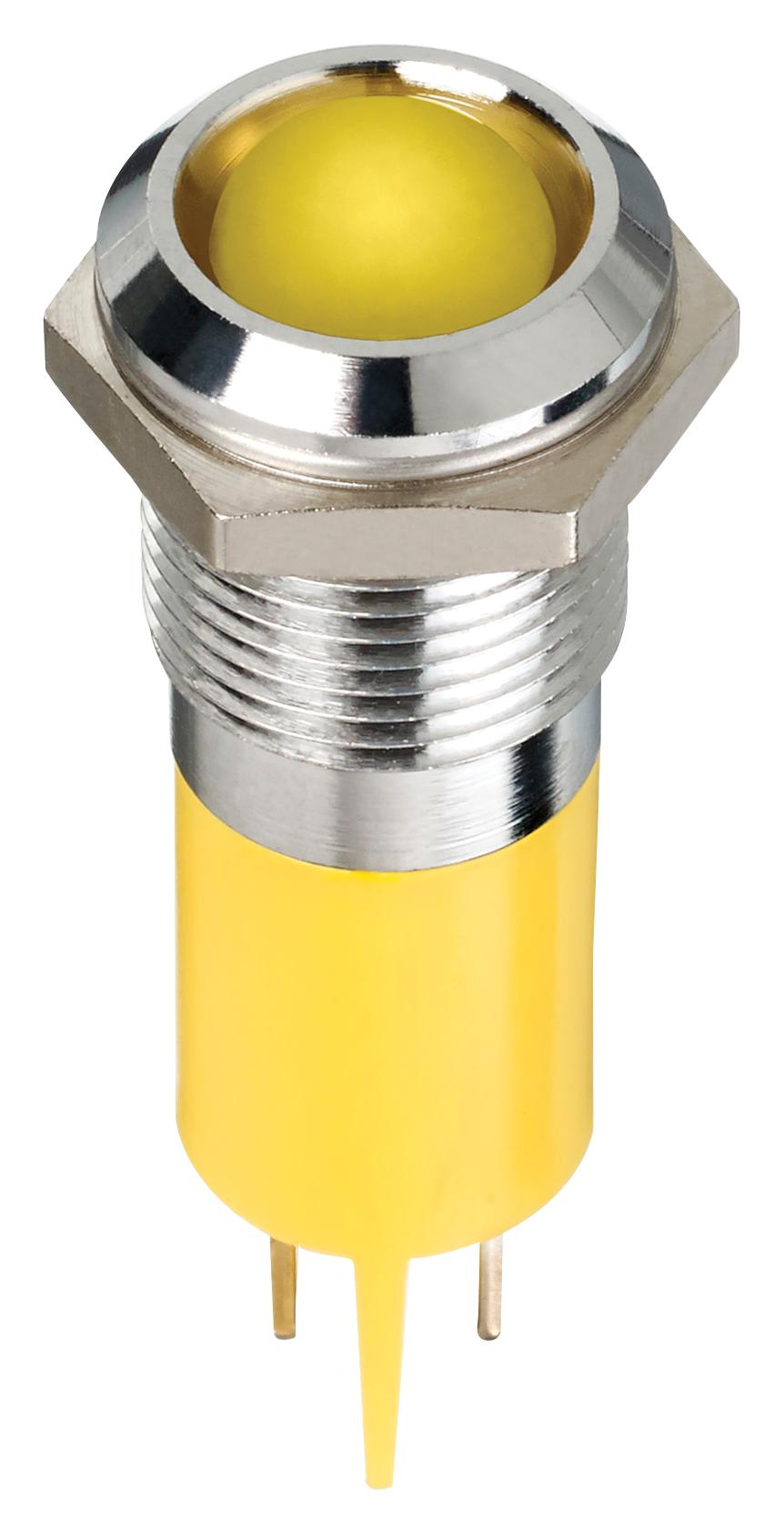

Apem Q14P1CXXY12 Panel Mount LED Indicator
The Q Series 14mm panel mount LED indicators are durable, high-brightness display lights suitable for various industrial applications. Featuring a 14mm prominent bezel and multiple color options including red, green, yellow, blue, white, and orange, these LEDs operate on various voltages from 2VDC to 220VAC. They are IP67 sealed for water resistance, with a life expectancy of 100,000 hours. Easy to install with solder lug or wire terminations, these indicators are available with custom engravings and different bezel finishes like bright chrome, black chrome, or satin grey, making them ideal for panel marking and status indication.
Apem Q14P1CXXY12 Panel Mount LED Indicator Specifications:
- Lens Diameter: 14mm (0.551 inch)
- Bezel Finish: Bright chrome, black chrome, satin grey
- Housing Material: Moulded polycarbonate rear body
- Sealing: IP67 waterproof option
- Operating Voltage: 2VDC to 220VAC based on model
- Operating Current: Max 20mA
- Life Expectancy: 100,000 hours
- Temperature Range: -40°C to +85°C
- Viewing Angle: 30-100° depending on model
- Max Reverse Voltage: 5V
- Light Intensity: Up to 17,000mcd for bright LEDs, varied for different colors
- Connection: Solder lug, faston terminals, pins, or 200mm wire
- Additional Features: Custom engraving, flush or prominent bezel styles
Buy the Buy APEM Q Series 14mm Panel Mount LED Indicators Part Number Q14P1CXXY12 Online
Purchase the APEM Q Series 14mm panel mount LED indicator online to benefit from superior visibility, IP67 sealing, and versatile color options. Perfect for industrial panels, these LEDs feature a lifespan of 100,000 hours, easy wiring options, and customizable engravings. With a compact 14mm diameter and robust construction, they ensure durable performance across various voltage ranges from 2VDC to 220VAC. Order now for quick delivery and improve your control panel's visibility with high-brightness LED indicators designed for demanding environments.
Buy APEM Q Series 14mm LED indicator now and enhance your panel with reliable, high-brightness illumination suitable for industrial and equipment control.
Frequently Asked Questions
Where can I buy Apem Q14P1CXXY12?
You can click on the BUY or RFQ button to purchase Q14P1CXXY12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1CXXY12?
You can download the Q14P1CXXY12 datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1CXXY12?
Apem
