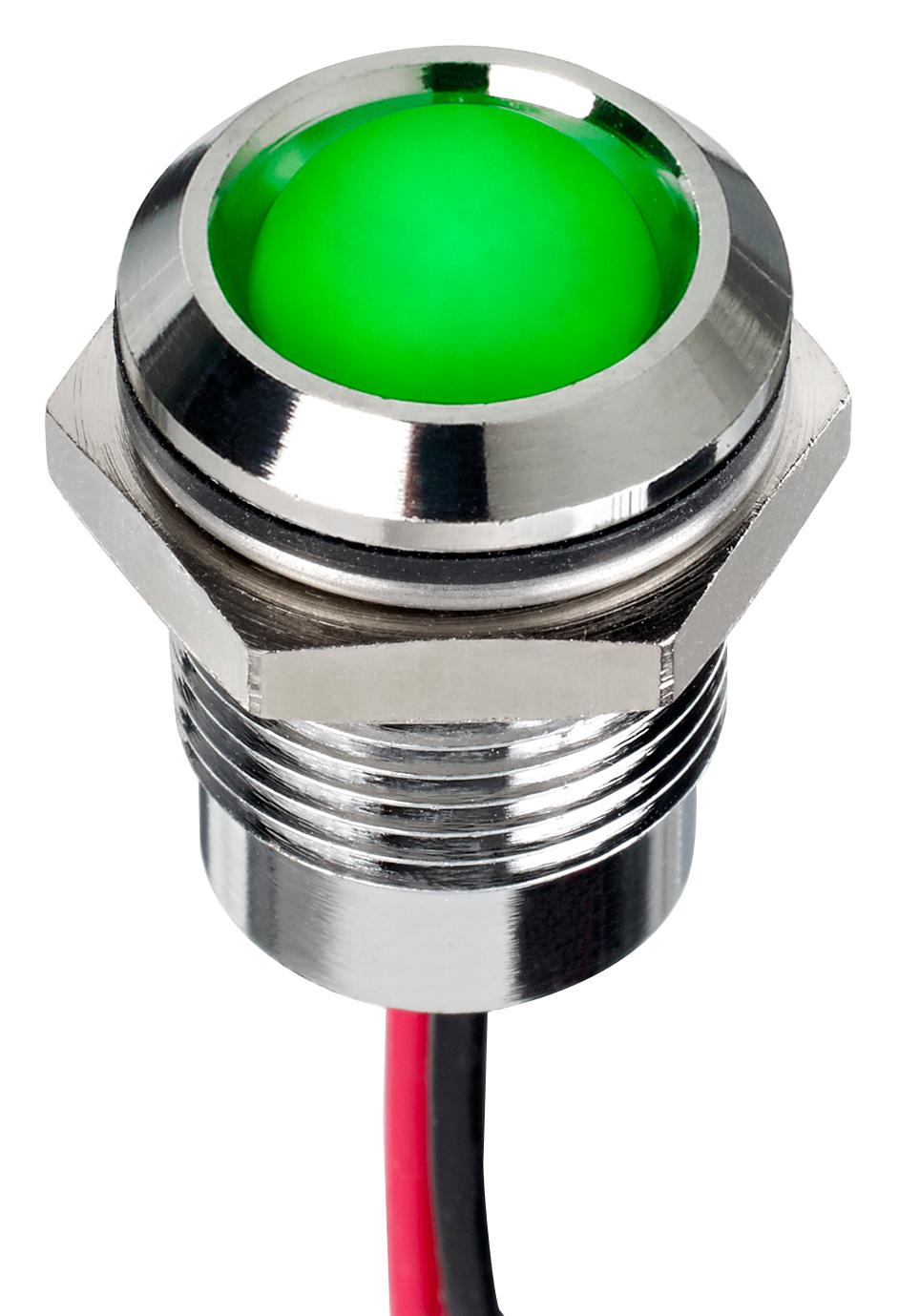

Apem Q14P5CXXHG24E Panel Mount LED Indicator
The Q14 series panel mount LED indicators offer high brightness illumination with options for diffused or water-clear lenses, suitable for industrial applications requiring visibility and durability. Featuring prominent bezel styles with quick termination options like solder lug, faston terminals, or wire connections, they are rated IP67 for sealing against environmental elements. Available in multiple colors, including RGB, these LED indicators are ideal for signaling, status indication, and control panels in harsh environments, with lifetime expectancy exceeding 100,000 hours and operating temperatures up to 85°C.
Apem Q14P5CXXHG24E Panel Mount LED Indicator Specifications:
- Lens Size: 14 mm diameter
- Sealing: IP67 (optional)
- Operating Temperature: -30 °C to +85 °C (rear epoxy body), -40 °C to +85 °C (rear plastic body)
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Bezel Material: Plated brass, finished in bright chrome, black or satin grey
- Body Material: Moulded polycarbonate
- Max Panel Thickness: 11 mm
- LED Types: Red, Green, Yellow, Blue, White, Orange, RGB, Bi-color, Tri-color
- LED Brightness: Standard, Super Bright, Hyper Bright options available
- Electrical Ratings: 1.8 V to 33 V DC, 110 V AC, 220 V AC
Buy the APEM Q14P5CXXHG24E – Reliable Indicator for Industrial Applications
Purchase the APEM Q14 series LED indicator online today and experience reliable, high-brightness signaling for industrial control panels. With IP67 sealing, multiple color options including RGB, and diverse termination methods like solder lug, faston, or wire connections, these indicators are perfect for harsh environments. Offering a life expectancy of over 100,000 hours and operating temperatures up to 85°C, they provide long-lasting performance and visibility. Whether for automation, machinery, or signaling, order now and enhance your project’s reliability and clarity.
Order your APEM Series Q14P5CXXHG24E high-brightness LED indicator today and ensure clear, durable signaling in your industrial projects.
Frequently Asked Questions
Where can I buy Apem Q14P5CXXHG24E?
You can click on the BUY or RFQ button to purchase Q14P5CXXHG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P5CXXHG24E?
You can download the Q14P5CXXHG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P5CXXHG24E?
Apem
