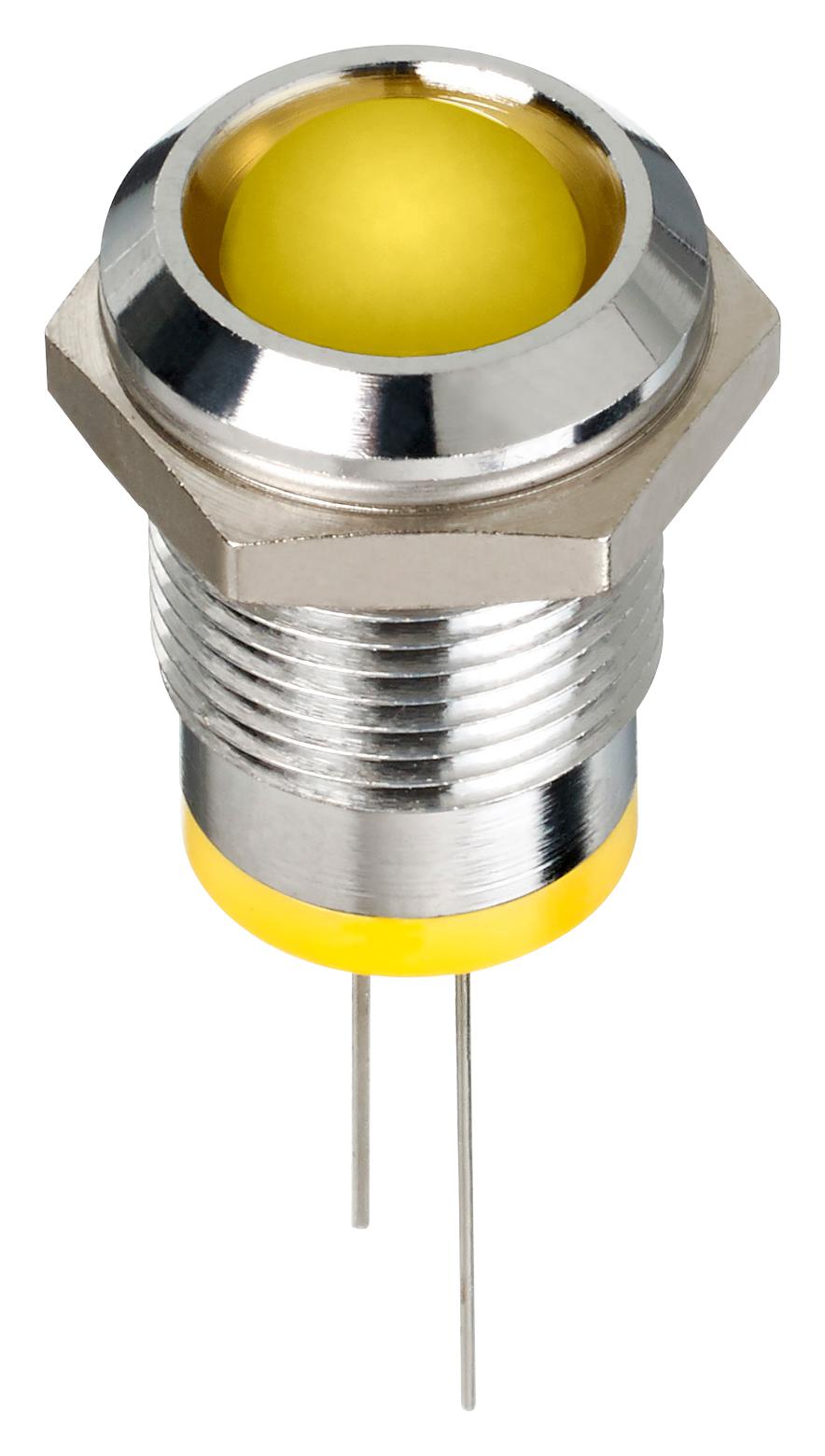

Apem Q14P6CXXY02 LED Indicator
The Q series 14mm panel mount LED indicators are highly visible, durable, and versatile with multiple colors including red, green, yellow, and blue. Featuring various mounting options such as flush bezel, water-clear or diffused lenses, and IP67 sealing for rugged environments. They operate across a wide voltage range from 2VDC to 220VAC, with long life expectancy of up to 100,000 hours. Suitable for industrial and control panel applications, these indicators offer custom engraving, multiple terminal options, and prominent bezel styles for enhanced visibility and functionality.
Apem Q14P6CXXY02 LED Indicator Specifications:
- Lens Diameter: 14mm
- Body Material: Polycarbonate rear body
- Bezel Finish: Bright chrome, black chrome, or satin grey
- Sealing: IP67 (optional)
- Operating Voltage: 2VDC to 220VAC
- Operating Current: Max 20mA (varies with voltage)
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100° (dependant on model)
- Life Expectancy: 100,000 hours
- Temperature Range: -40 to +85°C
- Dimensions: Panel cutout 14mm, panel thickness up to 11mm
- Connection Types: Solder lug, faston terminals, pins, or 200mm wires
- Color Options: Red, Green, Yellow, Blue, White, Orange
- Certifications: UL Recognized Component
Buy the APEM Series Q LED Indicator: Q14P6CXXY02
Experience reliable signaling with the durable 14mm LED indicator from APEM. Perfect for industrial machinery and control panels, it features multiple colors, options for IP67 sealing, and easy mounting. Designed to operate across a broad voltage range from 2VDC up to 220VAC, with a life span of 100,000 hours, ensuring long-term performance. Custom engraving is available, along with various terminal options like solder lug and faston. Upgrade your control systems with this robust and energy-efficient indicator today.
Get APEM Q14P6CXXY02 LED indicator today—built for precision and long-lasting durability in industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q14P6CXXY02?
You can click on the BUY or RFQ button to purchase Q14P6CXXY02 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P6CXXY02?
You can download the Q14P6CXXY02 datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P6CXXY02?
Apem
