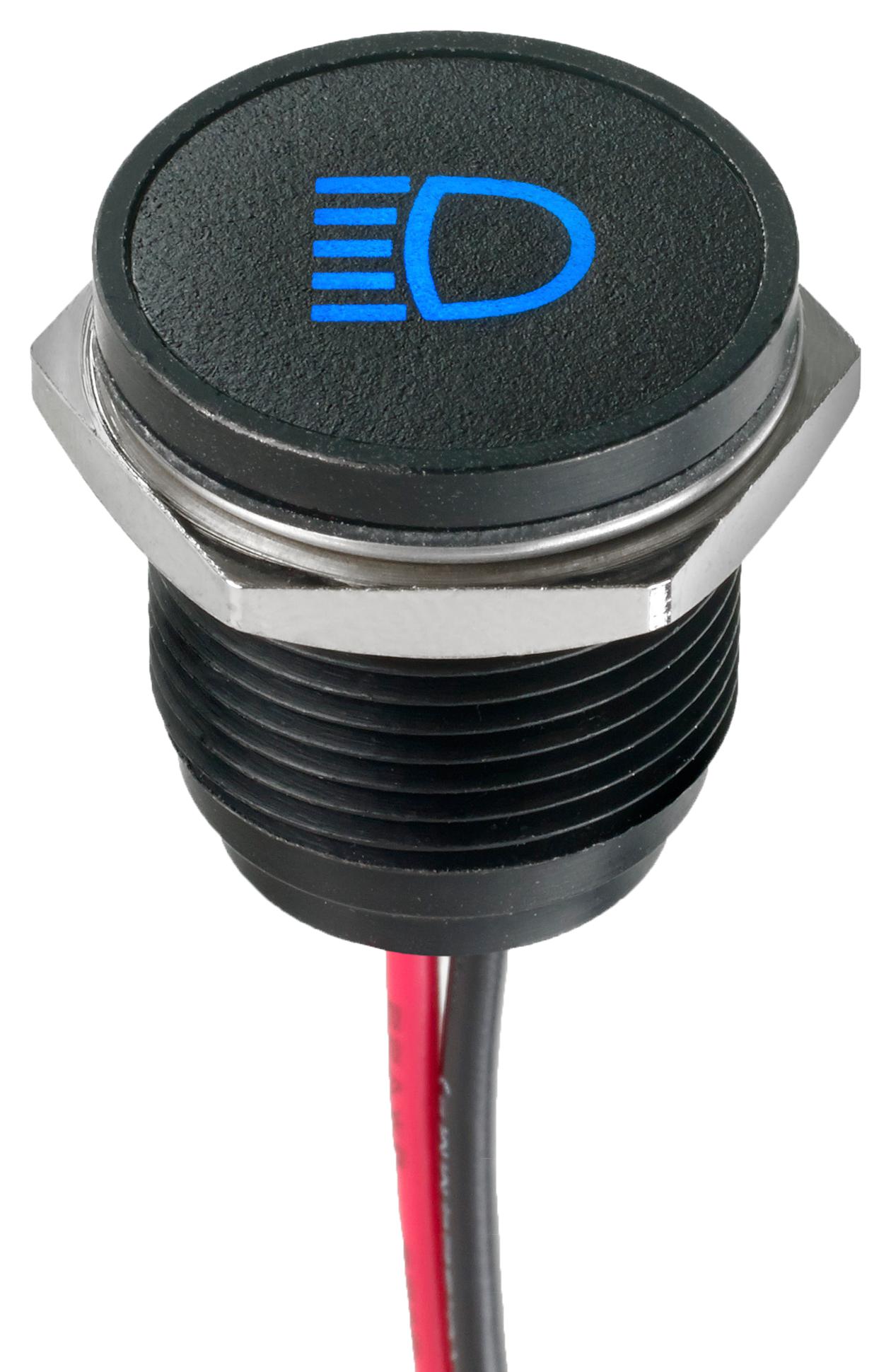

Apem Q16F5BXXB12E3AJ LED Indicator
The Q16 series comprises 16 mm panel mount LED indicators designed for various applications, featuring secret until lit polycarbonate decals or custom engraving for distinctive signaling. They include super bright and hyperbright LEDs in multiple colors, with options for RGB, bi-color, and tri-color illumination. These indicators are sealed to IP67 standards with operating temperatures ranging from -40°C to +85°C depending on the body, and typical life expectancy of 100,000 hours. Mountable through a 16 mm hole with metal bezels, they offer versatile wiring, including solder lug, faston terminals, and customizable cable lengths, making them ideal for industrial control panels, warning systems, and automation equipment, ensuring high visibility and durability in demanding environments.
Apem Q16F5BXXB12E3AJ LED Indicator Specifications:
- Diameter: 16 mm
- Sealing: IP67 (optional)
- Operating Temperature: -40°C to +85°C (rear epoxy body), -30°C to +65°C (rear plastic body)
- Life Expectancy: 100,000 hours
- Viewing Angle: 30-100°
- Max Reverse Voltage: 5 V
- Mounting Hole: 16 mm
- Bezel Material: Plated brass, finished in bright chrome, black or satin grey
- Body Material: Moulded polycarbonate
- Sockets & Terminals: Solder lug, faston, pins, or wires
- LED Colors: Red, green, yellow, blue, white, orange, RGB, bi-color, tri-color
- Forward Voltage (Standard / Super Bright / Hyper Bright): Red 2.0 / 17,000 / 2,800 med V, Green 5 / 11,000 / 2,200 med V, Yellow 4 / 4,000 / 1,300 med V, Blue 3.3 / 2,500 / 250 med V, White 3.3 / 4,400 / 250 med V, Orange 2 / 2,800 / 200 med V
- Operating Voltage: 6 VDC to 220 VAC
- Current: 20 mA (typical) with resistor as needed
- Connections: Rear epoxy wires, pins, short body wires, or custom connectors
- Customization: Engraving options available; secret until lit feature for flush bezel only
Buy the Buy APEM Q16 Series LED Indicators Part Number Q16F5BXXB12E3AJ Online
Enhance your control panels with APEM's Q16 series LED indicators, offering secret until lit illumination, IP67 sealing options, long lifespan of up to 100,000 hours, and versatile wiring configurations. These indicators provide superior visibility in demanding environments, available in multiple colors including RGB, bi-color, and tri-color options, with customizable engraving. Easy to install through standard 16 mm mounting holes, they are suitable for industrial automation, warning signals, and control systems, delivering high reliability and durability for critical applications.
Order your APEM Q16 Series LED indicator with secret until lit feature today and enhance visibility and durability in your industrial controls.
Frequently Asked Questions
Where can I buy Apem Q16F5BXXB12E3AJ?
You can click on the BUY or RFQ button to purchase Q16F5BXXB12E3AJ from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16F5BXXB12E3AJ?
You can download the Q16F5BXXB12E3AJ datasheet or visit the Apem website for support.
Who is the manufacturer of Q16F5BXXB12E3AJ?
Apem
