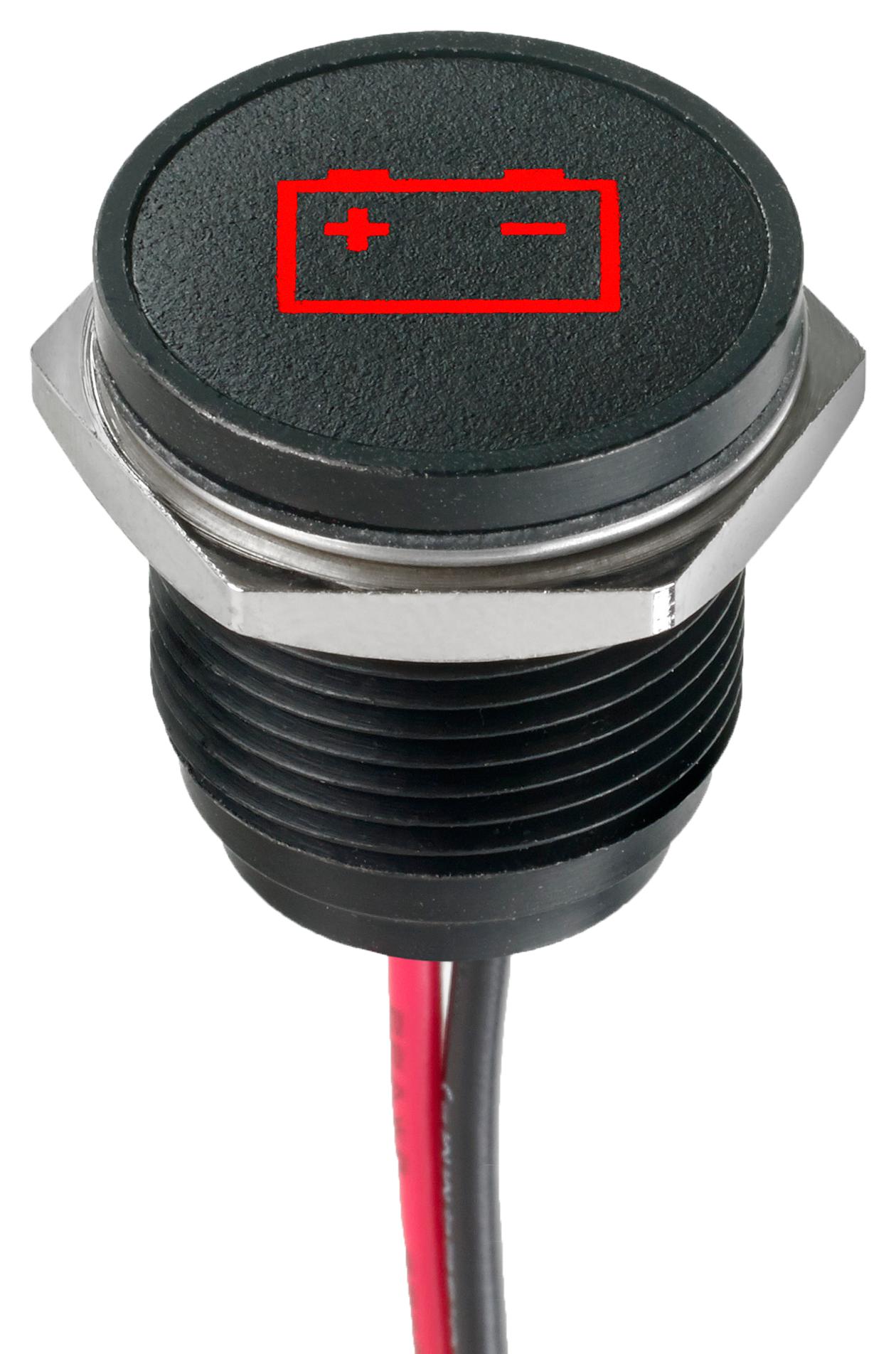

Apem Q16F5BXXHR12E3AG LED Indicator
The Q16 series panel mount LED indicators feature 16 mm diameter, distinctive secret until lit polycarbonate inserts, and various illumination options including super bright and hyper bright LEDs. Compatible with multiple mounting styles such as flush, recessed, short body, and with different terminal types like solder lug, faston, pins, or wires. Their environmental ratings include IP67 sealing, with operating temperatures ranging from -40°C to +85°C depending on the body. Designed for industrial displays, these LED indicators offer long life expectancy, vibrant illumination, and reliable performance in harsh conditions.
Apem Q16F5BXXHR12E3AG LED Indicator Specifications:
- Diameter: 16 mm
- Sealing: IP67 option available
- Operating Temperature: -40°C to +85°C based on body
- Reverse Voltage: Max 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Bezel Material: Plated brass, chrome, black, satin grey
- Body: Moulded polycarbonate or epoxy
- Mounting Hole Diameter: 16 mm
- Max Panel Thickness: 11 mm
- Electrical: Forward voltage varies by color; Red: 2.0 V, Green: 2.2 V, Yellow: 2.0 V, Blue: 3.3 V, White: 3.3 V, Orange: 2 V
- Luminosity: Standard, Super Bright, Hyper Bright options available
- Wiring: 200 mm wire length, UL1007, 22 AWG
Buy the Zealot Q16F5BXXHR12E3AG – Reliable LED Indicators for Industrial Applications
Enhance your industrial systems with the Zealot LED indicator series, featuring secret until lit polycarbonate inserts and multiple illumination options. Designed for durability with IP67 sealing, these indicators perform reliably in extreme temperatures from -40°C to +85°C. With a long lifespan of 100,000 hours, they provide vibrant, energy-efficient light signals suitable for control panels, machinery, and safety devices. Easy to install with various mounting options and wiring configurations, this product ensures clear visual communication in demanding environments.
Order your Zealot series Q16F5BXXHR12E3AG high-brightness LED indicator today and ensure your industrial displays are always clearly visible in harsh environments.
Frequently Asked Questions
Where can I buy Apem Q16F5BXXHR12E3AG?
You can click on the BUY or RFQ button to purchase Q16F5BXXHR12E3AG from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16F5BXXHR12E3AG?
You can download the Q16F5BXXHR12E3AG datasheet or visit the Apem website for support.
Who is the manufacturer of Q16F5BXXHR12E3AG?
Apem
