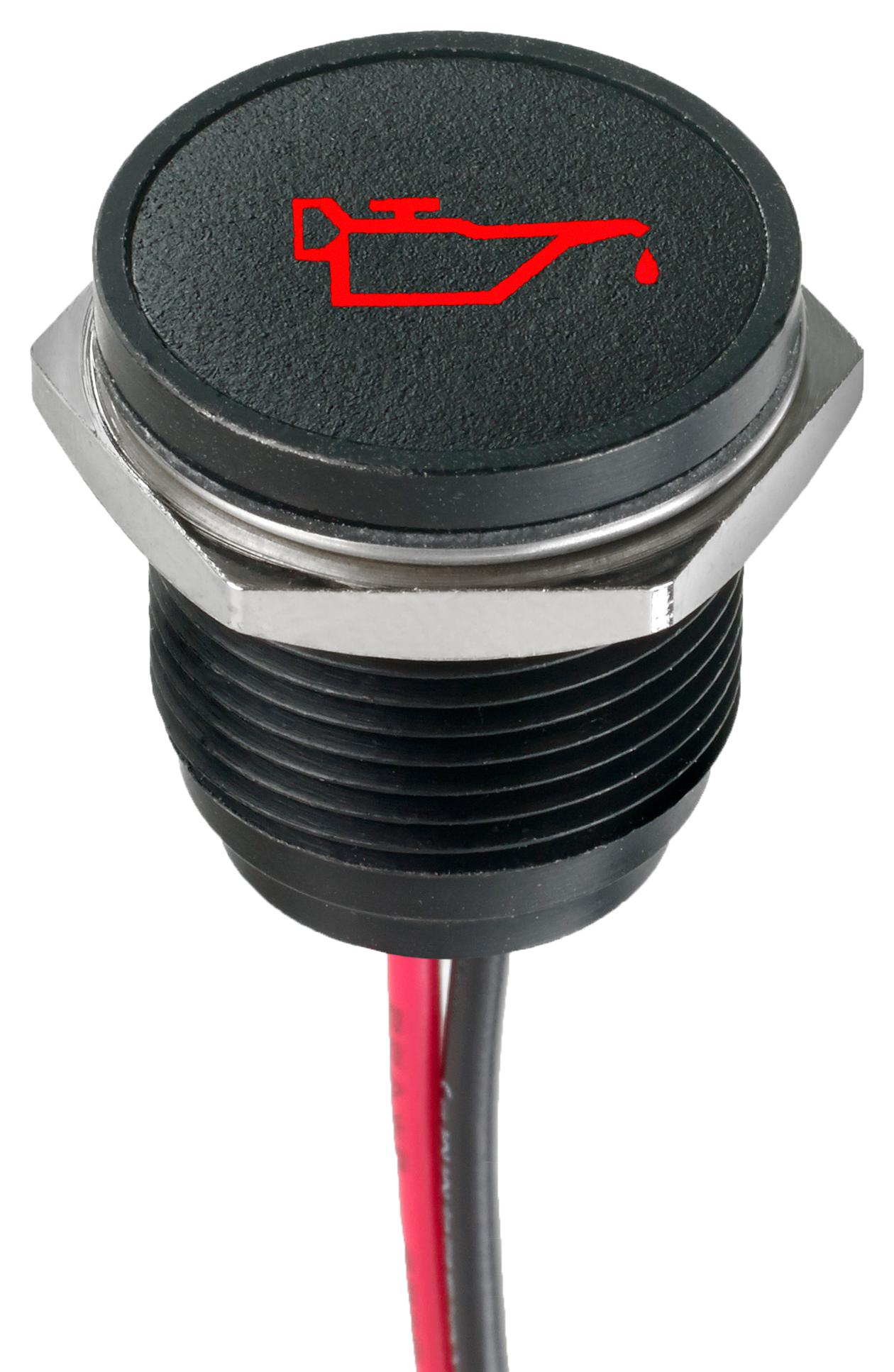

Apem Q16F5BXXHR12E3GP LED Indicator
The Q16 series panel mount LED indicators offer high-brightness illumination in a compact 16 mm size with versatile mounting options and environmental sealing up to IP67. Designed with secret until lit polycarbonate inserts and custom engraving, these indicators feature various LED colors including red, green, yellow, blue, white, and orange, with optional RGB and tricolor configurations. They support different electrical connections such as solder lug, faston, pin, and long wire terminations. Suitable for demanding industrial and safety applications, they ensure long-lasting operation with a lifespan of 100,000 hours and operate within a temperature range from -40°C to +85°C depending on the body material.
Apem Q16F5BXXHR12E3GP LED Indicator Specifications:
- Size: 16 mm diameter
- Sealing: IP67 option available
- Operating Temperature Range: -40°C to +85°C (epoxy body), -30°C to +65°C (plastic body)
- Viewing Angle: 30-100° depending on model
- Lifespan: 100,000 hours
- Max Reverse Voltage: 5 V
- Terminal Types: Solder lug, faston, pins, wire terminations (up to 200 mm)
- Body Material: Moulded polycarbonate, plated brass bezel in chrome, black or satin grey
- Mounting Hole: 16 mm diameter, maximum panel thickness 11 mm
- LED Colors: Red, Green, Yellow, Blue, White, Orange; Optional RGB; Bi-color, Tricolor configurations
- LED Forward Voltage: Red 2V (med/super brightness), Green 2.2-11V, Yellow 2-23V, Blue 3.3V, White 3.3V, Orange 2V
- Electrical Operating Voltage: 6VDC to 220VAC, with resistor requirements for certain voltages
- LED Brightness Levels: Standard, Super Bright, Hyper Bright options available
Buy the APEM Series Q16 LED Indicator: Q16F5BXXHR12E3GP
Order the Q16 series LED indicator today from our online store to ensure fast delivery and reliable performance. These 16 mm panel mount indicators feature high brightness LEDs available in multiple colors including red, green, yellow, blue, white, and orange. They support custom engravings and secret until lit inserts, making them suitable for industrial and safety applications. The robust design includes IP67 sealing, long operational lifespan of 100,000 hours, and versatile termination options like solder lug, faston, pins, and long wires. Ensure your project’s success by choosing high-quality, durable LED indicators from APEM online now.
Buy APEM Q16F5BXXHR12E3GP LED indicator now and experience unmatched reliability and performance for industrial signaling and control systems.
