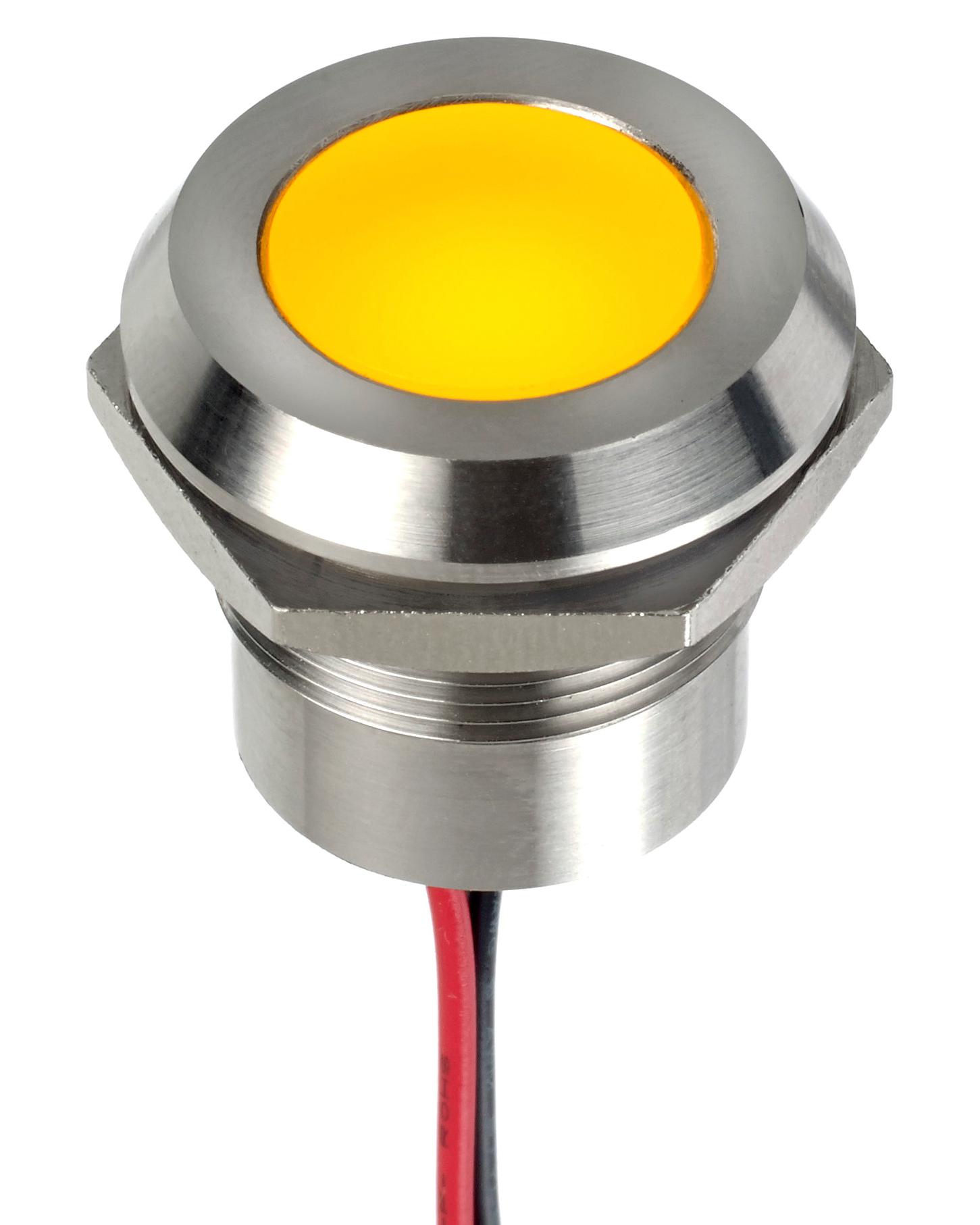

Apem Q22Y5SXXSY24E Panel Mount LED Indicator
The Q22 series is a range of 22 mm panel mount LED indicators designed for industrial applications, offering various illumination options including super bright, RGB, bi-color, and tricolor LEDs. These indicators feature durable materials like plated brass bezels, polycarbonate rear bodies, and a range of bezel finishes such as bright chrome, black, and satin grey. They support multiple mounting styles, wiring options, and sealing degrees up to IP67, ensuring reliable performance in harsh environments. Ideal for control panels, machinery, and automation systems with long lifespan and customizable engraving options.
Apem Q22Y5SXXSY24E Panel Mount LED Indicator Specifications:
- Size: 22 mm diameter, maximum panel thickness 12 mm for prominent, 10 mm for flush
- Materials: Plated brass bezel in bright chrome, black, satin grey; polycarbonate rear body
- Sealing: Unsealed or IP67 sealing option available
- Operating Temperature Range: Rear plastic body -30°C to +65°C, rear epoxy body -40°C to +85°C
- Voltage: 3.3V to 235V DC/AC depending on model, with resistor if required
- LED Type: Super bright, RGB, bi-color (red/green/yellow), tri-color (red/green/blue)
- Forward Voltage: Red 7V, Green 6V, Yellow 9V, Blue 101V, White 33V (approximate for standard LEDs)
- Viewing Angle: 30° to 100°, varies by model
- Life Expectancy: 100,000 hours
- Connection: Solder lug, faston, rear epoxy wires, pins, or custom cables
- Additional Features: Secret until lit polycarbonate decals, customizable engraving, wide variety of terminal options
- Electrical: Max reverse voltage 5V, operating current up to 40 mA, sealed and unsealed options available
Buy the APEM Q22Y5SXXSY24E – Reliable Industrial Panel Mount LED Indicators for Control Systems
Purchase the APEM Panel Mount LED Indicator Q22Y5SXXSY24E online today to enhance your industrial control panels with dependable illumination. Designed for durability and visibility, this indicator features customizable engraving, multiple mounting options, and high IP sealing standards for harsh environments. Its long lifespan of 100,000 hours ensures reliable operation, while the variety of LED colors and sealed wiring options support versatile installation in automation, machinery, and process control applications. Order now for swift delivery and seamless integration into your systems.
Get APEM Q22Y5SXXSY24E today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem Q22Y5SXXSY24E?
You can click on the BUY or RFQ button to purchase Q22Y5SXXSY24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q22Y5SXXSY24E?
You can download the Q22Y5SXXSY24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q22Y5SXXSY24E?
Apem
