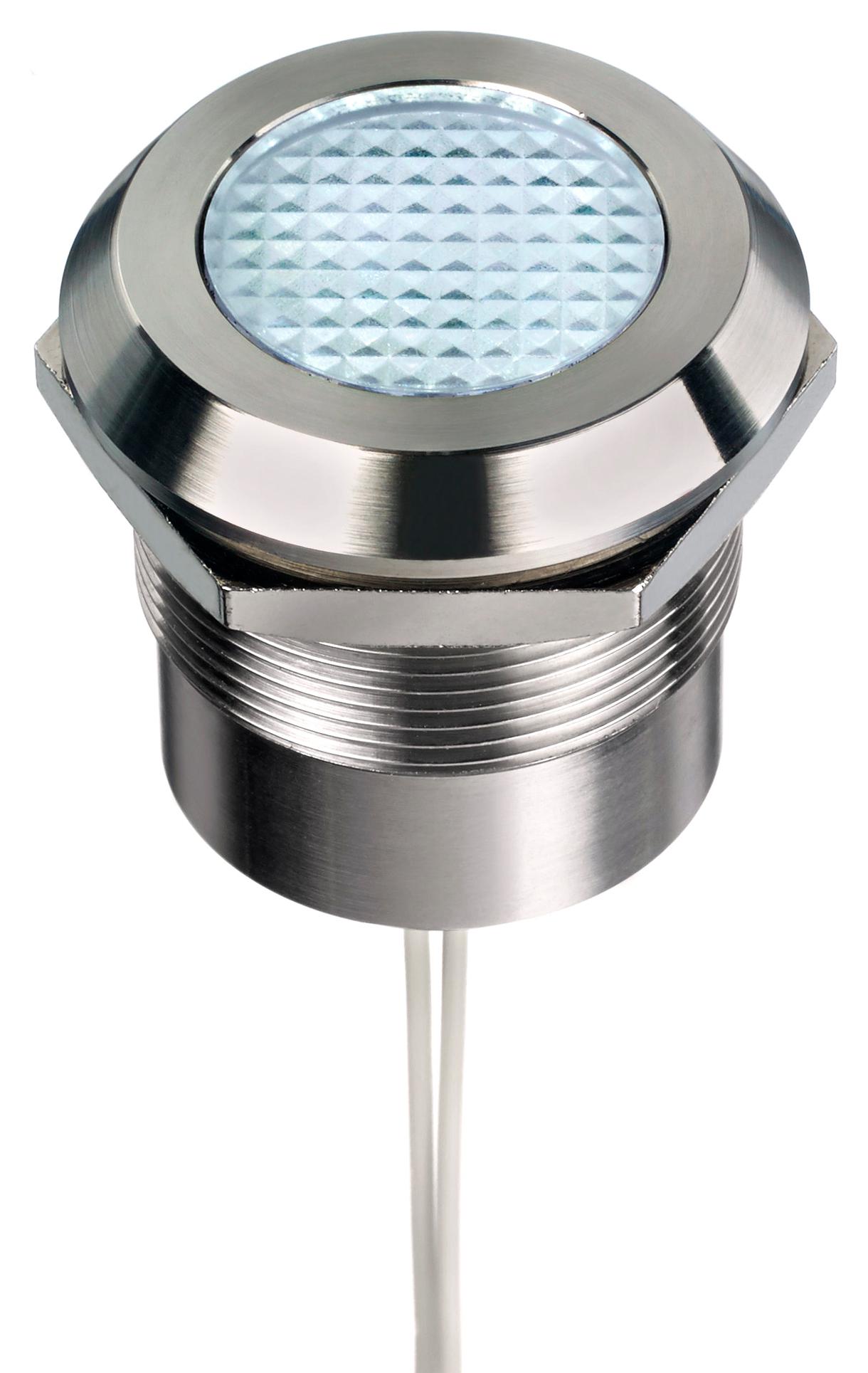

Apem Q25Y5SXXW1AE Industrial LED Indicator
The Q25 series panel mount LED indicators feature a 25mm diameter with a durable stainless steel 316L body and PC lens. They include a 18.2mm colored Fresnel lens, 200mm long wire terminations, and are rear epoxy sealed for IP67 & IP69K protection. Operating at 12-24 VAC/DC with a current of 30mA, these indicators support voltages up to 36V over-voltage protection. With a viewing angle of 60° and a lifespan of 100,000 hours, they are suitable for industrial environments, offering reliable visual status indicators in various colors including red, green, yellow, blue, and white.
Apem Q25Y5SXXW1AE Industrial LED Indicator Specifications:
- Diameter: 25mm
- Material: Stainless steel 316L body
- Lens: PC, 18.2mm colored Fresnel lens
- Wire Terminations: 200mm long, 20 AWG UL1007
- Sealing: Rear epoxy sealed, rated IP67 & IP69K
- Operating Voltage: 12 to 24 VAC/DC
- Current Consumption: 30mA
- Reverse Voltage Protection: None (polarity independent)
- Over-voltage Protection: activates at 36 V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 9mm
- Environmental Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Mounting Torque: 75 cNm/0.75 Nm
- Ingress Protection: IP67 & IP69K
Buy the Buy Stainless Steel LED Indicator Part Number Q25Y5SXXW1AE Online
Order the stainless steel industrial LED indicator Q25Y5SXXW1AE online for reliable status indication in demanding environments. Featuring a 25mm diameter, sealed IP67/IP69K protection, and a lifespan of 100,000 hours, it suits various industrial applications. The indicator operates at 12-24V AC/DC, with a 200mm wire length for versatile installation. Its durable stainless steel body and PC lens ensure long-lasting performance. Available in multiple colors including red, green, yellow, blue, and white, this LED indicator provides clear visual signals while resisting harsh conditions and temperature extremes.
Get Stainless Steel LED Indicator Q25Y5SXXW1AE today—built for durability in industrial environments with sealed, IP67-rated design and 100,000-hour lifespan.
Frequently Asked Questions
Where can I buy Apem Q25Y5SXXW1AE?
You can click on the BUY or RFQ button to purchase Q25Y5SXXW1AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q25Y5SXXW1AE?
You can download the Q25Y5SXXW1AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q25Y5SXXW1AE?
Apem
