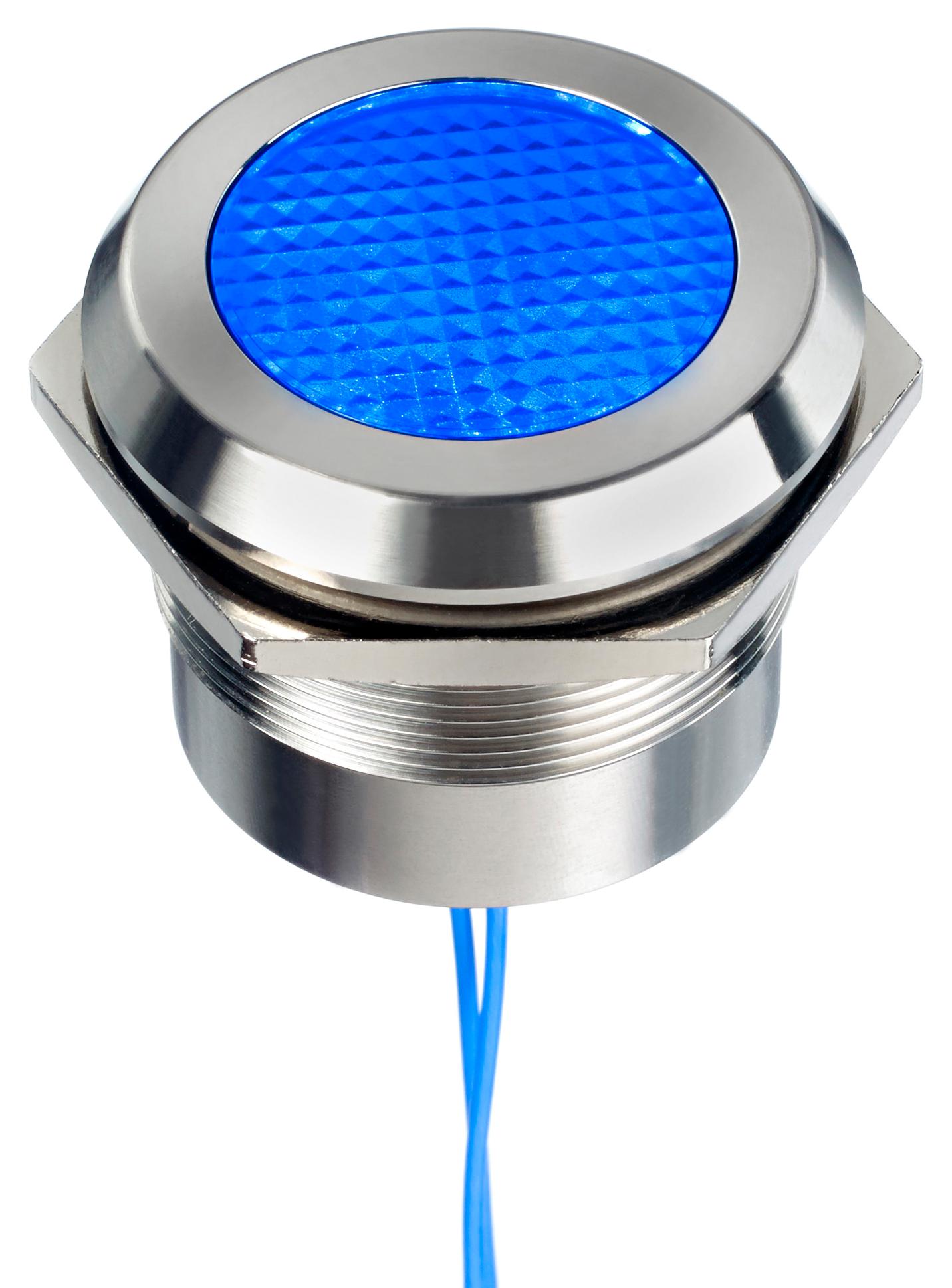

Apem Q30Y5SXXB1AE Panel Mount LED Indicator
The Q30 Series panel mount LED indicators are designed with a 23.2mm coloured Fresnel lens, stainless steel 316L body, and PC lens for durability. They feature 200 mm long wire terminations and rear epoxy sealing for environmental protection, tested up to IP69K. Operating within -40 °C to +85 °C and with a life expectancy of 100,000 hours, these indicators support voltages from 12 to 24Vac/dc, with over-voltage protection at 36V. The LEDs offer high luminous intensity, broad viewing angles, and include reverse polarity protection, making them ideal for industrial automation and control applications.
Apem Q30Y5SXXB1AE Panel Mount LED Indicator Specifications:
- Lens Diameter: 23.2 mm
- Wire Length: 200 mm
- Material: Stainless steel 316L body, PC lens, Nitrile o-ring
- Sealing: IP67 & IP69K
- Operating Voltage: 12 to 24Vac/dc
- Voltage Protection: Over-voltage at 36V
- Current Consumption: 30mA (nominal)
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Maximum Panel Thickness: 9mm
- Mounting Torque: 75cNm/0.75Nm
- LED Colors: Red, Green, Yellow, White, Blue
- Ingress Protection: IP67 & IP69K
- Connection: 2x wires, 200mm long, 20 AWG UL1007
- Seal Material: Epoxy
- Thread Size: M30 x 1.0
- Med Luminous Intensity: 38 to 5200 mcd depending on color
Buy the Buy APEM Q30Y5SXXB1AE Part Number Q30Y5SXXB1AE Online
Order the APEM Q30Y5SXXB1AE panel mount LED indicator today online to enjoy reliable illumination with IP69K sealing, stainless steel durability, and versatile color options. Designed for industrial environments, this indicator features a 23.2mm lens, 200mm wiring, and a lifespan of 100,000 hours. Its robust construction ensures resistance to harsh conditions, making it ideal for machinery, automation, and control panels. Easy to install with a 30mm mounting hole and over-voltage protection for enhanced safety and durability in demanding applications.
Get APEM Q30Y5SXXB1AE today—built for durability, environmental sealing, and long-lasting LED signaling in industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q30Y5SXXB1AE?
You can click on the BUY or RFQ button to purchase Q30Y5SXXB1AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q30Y5SXXB1AE?
You can download the Q30Y5SXXB1AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q30Y5SXXB1AE?
Apem
