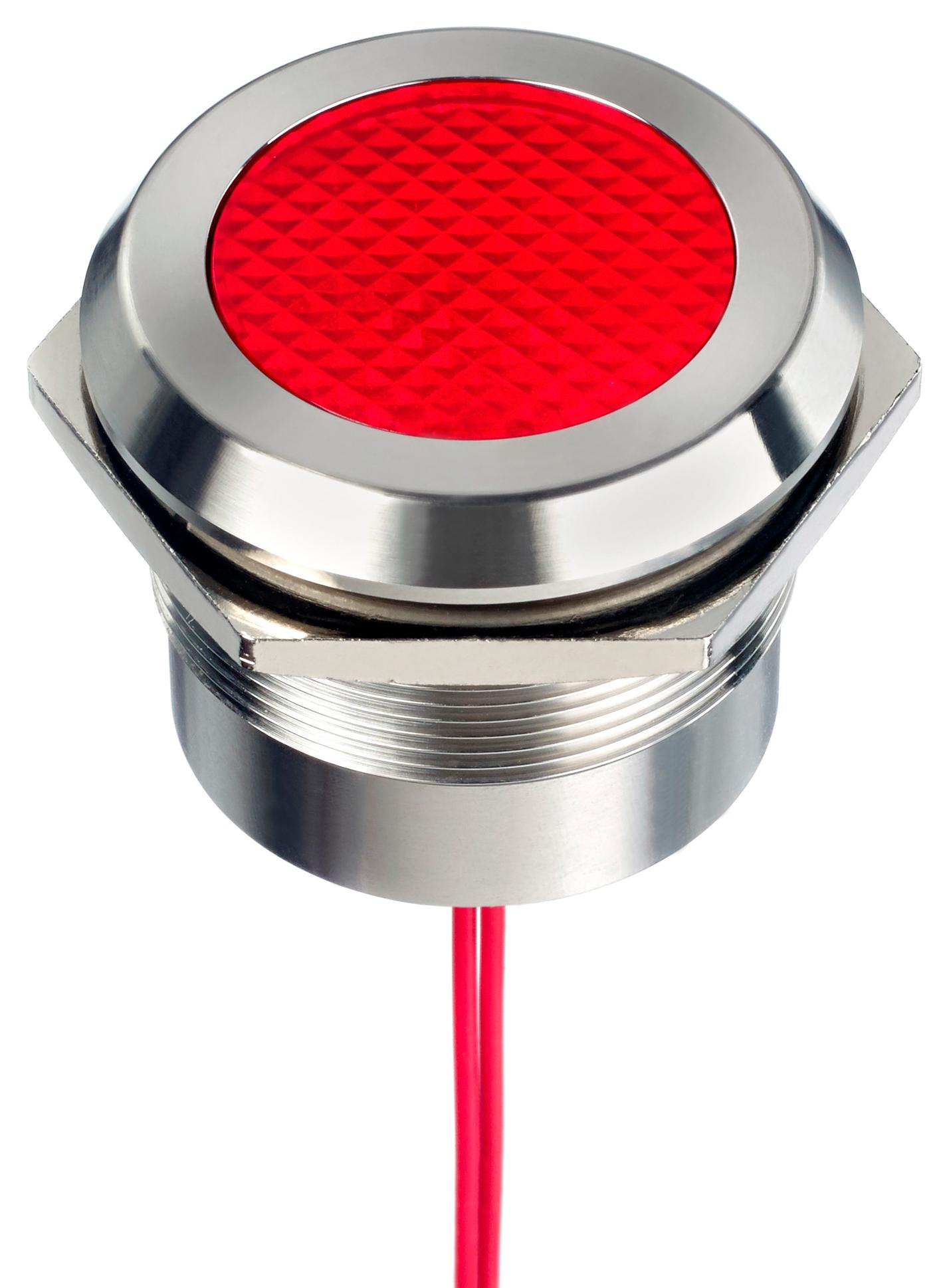

Apem Q30Y5SXXR1AE Industrial LED Indicator
The Q30 Series is a 30mm panel mount LED indicator designed for industrial and automation applications. Featuring a stainless steel 316L body, PC lens, and Nitrile o-ring, it offers IP67 & IP69K sealing for harsh environments. Operating at 12-24Vac/dc with 30mA current, it includes reverse voltage and over-voltage protections, with a lifespan of 100,000 hours. The indicator has a 60° viewing angle, maximum panel thickness of 9mm, and 200mm wire length. Available in various colors, it ensures durability and reliable illumination in demanding conditions.
Apem Q30Y5SXXR1AE Industrial LED Indicator Specifications:
- Material: Stainless steel 316L body, PC lens, Nitrile o-ring
- Sealing: IP67 & IP69K
- Operating Voltage: 12 to 24Vac/dc
- Current Consumption: 30mA typical
- Reverse Voltage Protection: Yes
- Over-voltage Protection: Activates at 36V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 9mm
- Wire Length: 200mm, 20 AWG UL1007
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Mounting Torque: 75cNm/0.75Nm
- Bezel Style: Metal with chamfer
- Terminals: Wires
- LED Colors: Red, Green, Yellow, Blue, White
- Power Supply: 24 VAC/DC
- Luminous Intensity: 38-5200 med (depending on color)
Buy the Buy Industrial LED Indicator Part Number Q30Y5SXXR1AE Online
Enhance your industrial control panels with the durable and reliable stainless steel LED indicator. The Q30 series offers IP67 & IP69K sealing, perfect for harsh environments, with a lifespan of 100,000 hours. Operates at 12-24V AC/DC with low 30mA current, ensuring energy efficiency. Its stainless steel body and sealed design provide resistance to moisture, dust, and extreme temperatures. Easy to install, this indicator ensures clear visibility with a wide 60° viewing angle and multiple color options, making it ideal for automation, machinery, and safety signaling applications.
Get Q30Y5SXXR1AE stainless steel panel mount LED indicator today—designed for harsh environments with IP67/IP69K sealing and 100,000 hours of lifespan.
Frequently Asked Questions
Where can I buy Apem Q30Y5SXXR1AE?
You can click on the BUY or RFQ button to purchase Q30Y5SXXR1AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q30Y5SXXR1AE?
You can download the Q30Y5SXXR1AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q30Y5SXXR1AE?
Apem
