A Premier B2B Part Search

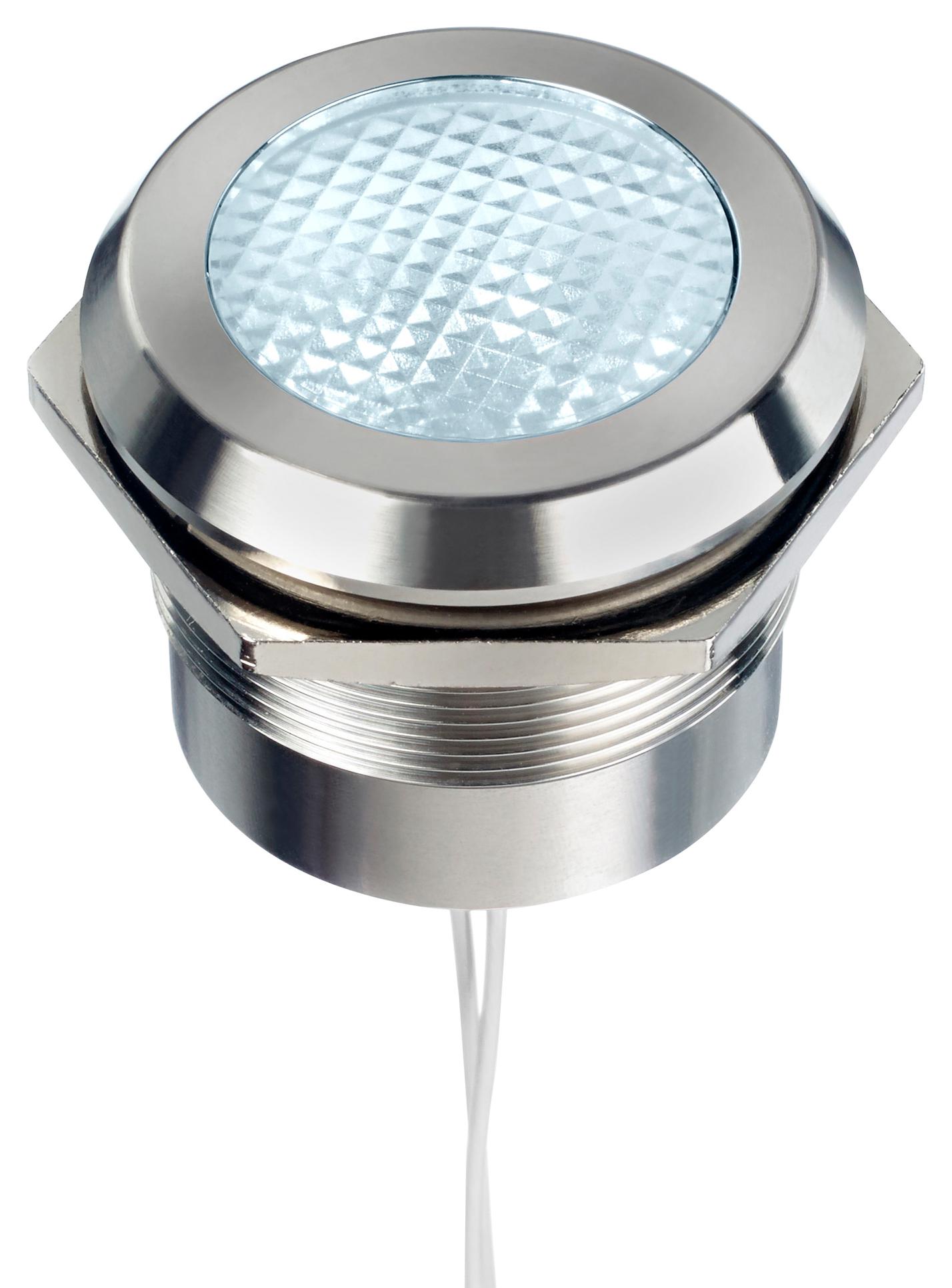

Apem Q30Y5SXXW1AE LED Indicator
The Q30 series panel mount LED indicators feature a 23.2mm coloured Fresnel lens with a 60° viewing angle, a stainless steel 316L body, and a PC lens. They offer IP67 & IP69K sealing for harsh environments, operate between -40°C and +85°C, and have a life expectancy of 100,000 hours. The indicators include rear epoxy sealing, 200 mm long wires, and over-voltage protection at 36V. Suitable for panel thickness up to 9mm, they are ideal for industrial and control applications needing reliable, durable LED indicators.
Apem Q30Y5SXXW1AE LED Indicator Specifications:
- Lens Diameter: 23.2mm
- Lens Material: PC
- Body Material: Stainless steel 316L
- Seal: Rear epoxy sealed, IP67 & IP69K rated
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Operating Voltage: 12 to 24Vac/dc
- Current Consumption: 30mA (nominal)
- Over-voltage Protection: activates at 36V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 9mm
- Wire Length: 200 mm, 20 AWG UL1007
- Mounting Torque: 75cNm / 0.75Nm
- Sealing: Sealed, suitable for harsh environments
- LED Colors Available: Red, Green, Yellow, White, Blue
Buy the Buy APEM Q30Y5SXXW1AE Part Number Q30Y5SXXW1AE Online
Purchase the APEM Q30Y5SXXW1AE LED indicator online today and enhance your control panels with durable, IP67/IP69K rated illumination. Featuring a 23.2mm coloured Fresnel lens, stainless steel body, and sealed construction, it is built for harsh environments. Its 200 mm long wires simplify installation, and over-voltage protection ensures reliability. With a lifespan of 100,000 hours, this indicator offers long-term performance, making it an ideal choice for industrial, automation, and control applications seeking high durability and visibility.
Order your APEM SeriesQ30Y5SXXW1AE panel mount LED indicator today and ensure reliable, long-lasting illumination for harsh industrial environments.
Frequently Asked Questions
Where can I buy Apem Q30Y5SXXW1AE?
You can click on the BUY or RFQ button to purchase Q30Y5SXXW1AE from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q30Y5SXXW1AE?
You can download the Q30Y5SXXW1AE datasheet or visit the Apem website for support.
Who is the manufacturer of Q30Y5SXXW1AE?
Apem
