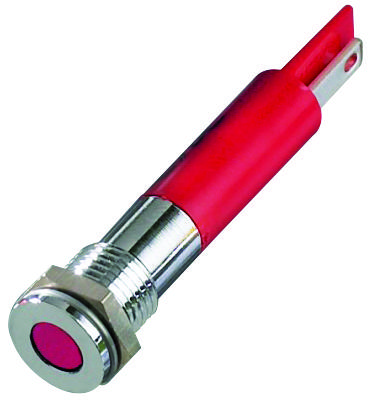

Apem Q6F1CXXR24E LED Indicator
The 6mm flush mount LED indicator offers durable bright chrome finish and IP67 sealing, ensuring reliable operation in demanding environments. It features a vibrant red LED at 24VDC, with options for prominent, recessed, or flush bezel styles. The indicator's wide viewing angle and high life expectancy of 100,000 hours make it suitable for industrial control panels. It is supplied with fixing nut and spring washer, with solder lug, pins, or wire terminations, and is UL recognized for safety and performance in various applications.
Apem Q6F1CXXR24E LED Indicator Specifications:
- Size: 6mm panel mount
- Bezel Finish: Bright chrome, black chrome, satin grey
- Sealing: IP67 (optional)
- Voltage Range: 2VDC to 28VDC
- Operating Voltage: 24VDC
- Operating Current: 20mA
- Luminous Intensity: 600mcd (Super Bright), 3500mcd (Hyper Bright)
- Forward Voltage: 2.2V (Red), 3.3V (Blue, White), 2.0V (Orange, Yellow)
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Operating Temperature: -40°C to +85°C
- Mechanical: M6 x 0.5 threading, solder lug, pins, or wires
- Ingress Protection: IP67 (optional)
Buy the APEM Series Q6 LED Indicator: Q6F1CXXR24E
Purchase the APEM Series Q6 LED indicator online today to ensure your projects benefit from high-quality, IP67 sealed, 6mm panel mount lights. This LED indicator features a bright chrome bezel, operating at 24VDC with a prominent red light, perfect for industrial control panels. It offers multiple mounting styles including prominent, recessed, and flush bezels, with solder lug, pins, or wire terminations for versatile installation. Durable and UL recognized, this indicator ensures long-lasting performance in demanding environments. Act now for quick, reliable delivery and improve your device visibility.
Order your APEM Series Q6 LED Indicator with red 24VDC light today and enhance your control panel with reliable, durable visual signaling.
Frequently Asked Questions
Where can I buy Apem Q6F1CXXR24E?
You can click on the BUY or RFQ button to purchase Q6F1CXXR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F1CXXR24E?
You can download the Q6F1CXXR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F1CXXR24E?
Apem
