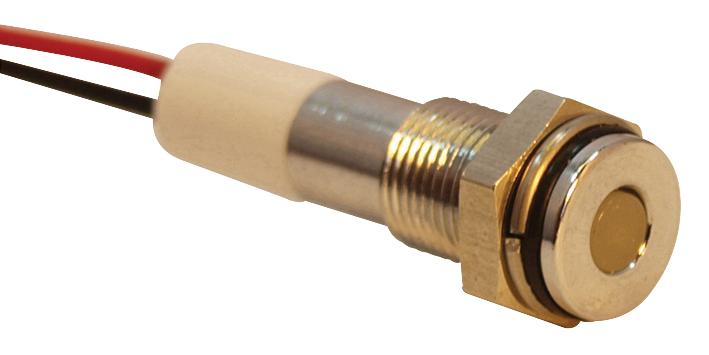

Apem Q6F3CXXW24E panel mount LED indicator
The Q6F3CXXW24E is a durable white panel-mounted LED indicator designed for industrial signaling with a sleek flush bright chrome bezel and wire terminals for easy installation. It offers high brightness illumination with a long life expectancy of 100,000 hours, operating reliably across a temperature range of -40°C to +85°C. Compatible with 24VDC systems, it features a sealed IP67 housing for harsh environments, and is suitable for panel thicknesses up to 7mm. This high-quality LED indicator combines robust construction with vibrant illumination for various industrial applications.
Apem Q6F3CXXW24E panel mount LED indicator Specifications:
- Lens Type: Diffused epoxy
- Bezel Finish: Bright chrome
- Panel Mounting Diameter: 6mm
- Operating Voltage: 24VDC
- Forward Voltage: 3.6V
- Luminous Intensity: 600med
- Viewing Angle: 100°
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Seal: IP67
- Material: Plastic bezel, epoxy lens
- Maximum Panel Thickness: 7mm
- Terminals: Wire terminals, 200mm length, 24AWG
- Reverse Voltage: 5V max
Buy the Buy APEM Q6F3CXXW24E Panel Mount LED Indicator Online
Enhance your industrial signaling systems with the APEM Q6F3CXXW24E white panel mount LED indicator. Featuring a sleek bright chrome bezel, IP67 sealing for protection against dust and water, and a long lifespan of 100,000 hours, this high-quality indicator operates reliably at 24VDC. Its compact 6mm diameter and sealed housing make it ideal for harsh environments, ensuring clear, bright illumination for your panel applications. Purchase online today for quick delivery and dependable performance in demanding industrial settings.
Order your APEM Q6F3CXXW24E white panel-mount LED indicator today and ensure reliable, bright illumination for your industrial signaling needs.
Frequently Asked Questions
Where can I buy Apem Q6F3CXXW24E?
You can click on the BUY or RFQ button to purchase Q6F3CXXW24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F3CXXW24E?
You can download the Q6F3CXXW24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F3CXXW24E?
Apem
