A Premier B2B Part Search

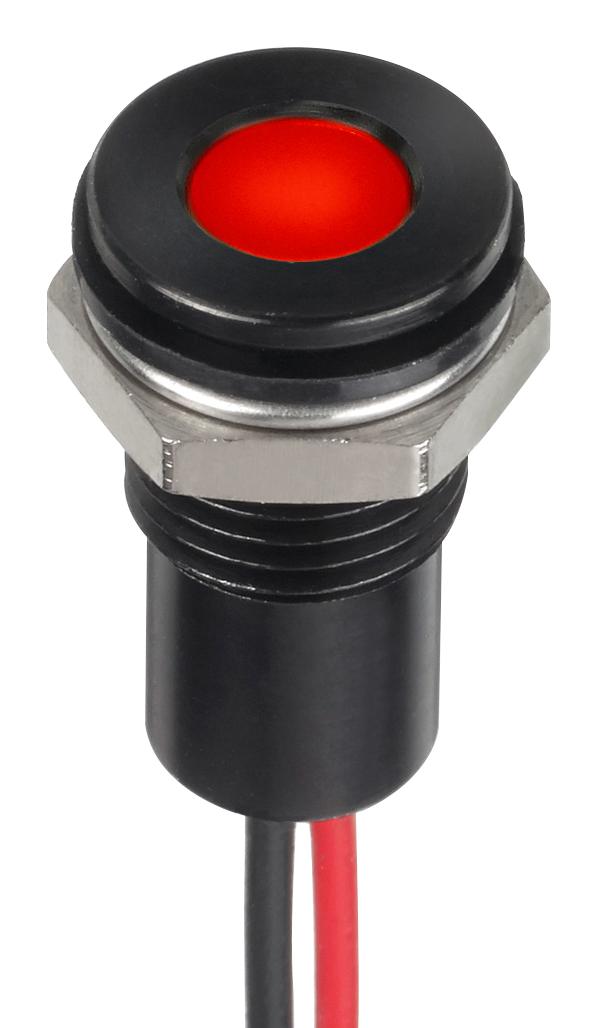

Apem Q6F5BXXHR12E Panel Mount LED Indicator
The Q6 series panel mount LED indicators are designed for industrial use, featuring 6 mm size, with options including diffused epoxy lenses and water clear lenses. These LEDs are super bright, with prominent recessed and flush bezel styles, and various terminal options like solder lug, pins, or wire terminations. They offer IP67 sealing, operate in temperatures from -40°C to +85°C, and have a life expectancy of 100,000 hours. Available in multiple colors such as red, green, yellow, blue, white, orange, and bi-color options, they suit demanding industrial and control panel applications.
Apem Q6F5BXXHR12E Panel Mount LED Indicator Specifications:
- Size: 6 mm diameter
- Bezel materials: Plated brass, chrome, black, satin grey options
- Sealing: IP67 optional
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Lifespan: 100,000 hours
- Panel Thickness: Max 7 mm
- Electrical: Forward Voltage varies by color, typically 2V to 33V
- Current: 20 mA max, resistor needed for specific voltage
- Operation: Standard, flashing, or bi-color options available
- Material: Polycarbonate rear body with plated brass bezel
- Termination Options: Solder lug, pins, wires up to 200 mm
Buy the Acme Q6F5BXXHR12E – Reliable LED Indicator for Industrial Applications
Purchase the Panel Mount LED Indicator online today and enhance your automation or control systems with bright, reliable illumination. Designed for ease of installation, these indicators feature various bezel styles, multiple terminal options, and sealed protection against dust and water, making them suitable for harsh industrial environments. With a long lifespan of 100,000 hours and high visibility in different colors and brightness levels, they ensure your control panels are clearly visible and fully functional, all available for quick online ordering.
Get Acme Q6F5BXXHR12E today—built for precision, durability, and high brightness in control panels and industrial environments.
Frequently Asked Questions
Where can I buy Apem Q6F5BXXHR12E?
You can click on the BUY or RFQ button to purchase Q6F5BXXHR12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5BXXHR12E?
You can download the Q6F5BXXHR12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5BXXHR12E?
Apem
