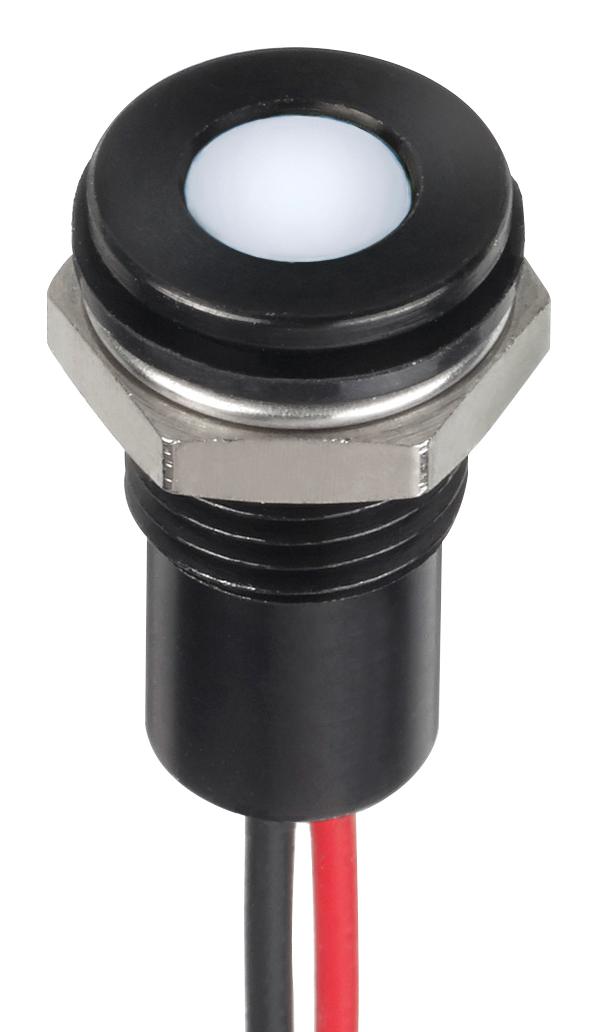

Apem Q6F5BXXW12E Panel Mount LED Indicator
The Q6 series 6 mm panel mount LED indicators feature high brightness LEDs with various color options including red, green, yellow, blue, white, and orange. They are designed with diffused epoxy lenses or water-clear options, featuring prominent, recessed, and flush bezel styles for versatile applications. These indicators operate efficiently within temperature ranges of -40°C to +85°C depending on the body material and have a maximum reverse voltage of 5V. With a life expectancy of 100,000 hours, they are suitable for industrial control panels requiring durable and reliable indicator lights.
Apem Q6F5BXXW12E Panel Mount LED Indicator Specifications:
- Lens Type: 3 mm diffused epoxy or water clear
- Operating Temperature Range: Rear plastic body -30°C to +65°C, rear epoxy body -40°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Bezel Material: Plated brass, finished in bright chrome, black, or satin grey
- Rear Body Material: Moulded polycarbonate
- Maximum Panel Thickness: 7 mm
- Electrical Specifications: Forward voltage varies by color, operating voltage from 1.8 to 33 VDC, typical current 20 mA
- LED Intensity: Standard, Super Bright, and Hyper Bright options available
- Mounting: Panel hole diameter 6 mm, various terminal types including solder lug, pins, wires
- Sealing Options: Unsealed or IP67 sealing available
- Environmental Durability: Suitable for harsh conditions with IP67 sealing if specified
- Terminals: Solder lug, Faston, wire leads, or pins
- Construction: Brass bezel, polycarbonate rear body, multiple mounting styles
Buy the Buy Industrial Equipment Panel Mount LED Indicators Part Number Q6F5BXXW12E Online
Purchase the innovative high-brightness panel mount LED indicator Q6F5BXXW12E online today and enhance your control panel's visibility and reliability. Designed with durable materials, these indicators offer excellent performance in harsh environments and feature multiple color options with diffused lenses for clear indication. Their easy mounting, long life span of 100,000 hours, and excellent electrical ratings make them perfect for industrial use. Order now to secure fast delivery and boost your operational efficiency with trusted indicator lights.
Buy Industrial Equipment Q6F5BXXW12E now and experience unmatched reliability and performance in demanding industrial control applications.
