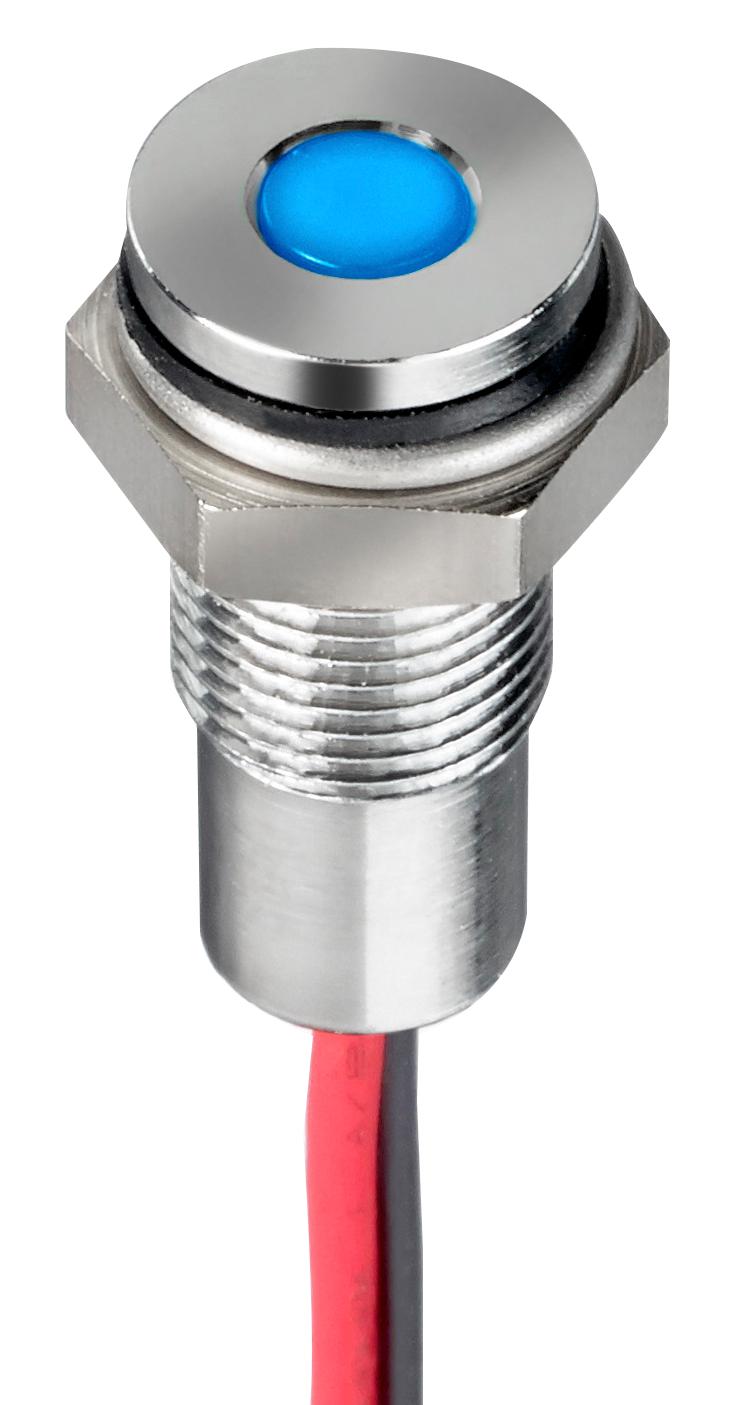

Apem Q6F5CXXB02E LED Indicator
The Q6 series 6 mm panel mount LED indicators feature bright, diffused epoxy lenses in various colors such as red, green, yellow, blue, and white, with options for super bright and hyper bright LEDs. They are designed for easy mounting with flush, recessed, and prominent bezel styles, and include solder lug terminals, pins, or wire terminations up to 200 mm. Environmental sealing options include IP67. They operate at voltages ranging from 1.8 to 33 VDC, with a life expectancy of 100,000 hours, and are made with plated brass bezels and molded polycarbonate bodies, suitable for industrial and electronic applications.
Apem Q6F5CXXB02E LED Indicator Specifications:
- Lens Size: 3 mm diffused epoxy or water clear
- Bezel Material: Plated brass, finished in bright chrome, black, or satin grey
- Body Material: Molded polycarbonate
- Max Panel Thickness: 7 mm
- Operating Temperature Range: Rear epoxy body from -40°C to +85°C, rear plastic body from -30°C to +65°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Sealing: IP67 sealing option available
- Electrical Operating Voltage: 1.8 to 33 VDC, with 20 mA max current
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- LED Intensity: Standard, Super Bright, and Hyper Bright versions
- Terminals: Solder lug, pins, wires (up to 200 mm), or Faston connectors
- Mounting Hole Diameter: 6 mm
- Maximum Power Ratings: Ranges up to 28 VDC, with specific forward voltages for each color
- Environmental Ratings: IP67 sealed options available, suitable for harsh environments
Buy the Buy LED Indicator Panel Mount Part Number Q6F5CXXB02E Online
Order the LED indicator Q6F5CXXB02E online today and enjoy fast delivery, competitive prices, and the reliability of high-quality LED components. Perfect for industrial control panels, electronic dashboards, and machinery indicators, these indicators are designed for easy installation with various bezel styles and wiring options. With excellent brightness levels, sealed IP67 options, and long life expectancy, upgrading your equipment for visibility and durability has never been easier. Purchase now to enhance your project's performance with proven LED technology.
Buy LED indicator panel mount Q6F5CXXB02E now and experience high brightness, durable construction, and versatile mounting options for industrial applications.
Frequently Asked Questions
Where can I buy Apem Q6F5CXXB02E?
You can click on the BUY or RFQ button to purchase Q6F5CXXB02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5CXXB02E?
You can download the Q6F5CXXB02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5CXXB02E?
Apem
