Apem Q6F5CXXB12E Panel Mount LED Indicator
The Q6 series is a line of 6 mm panel mount LED indicators designed for versatile applications. These indicators feature a water-clear or diffused epoxy lens with super bright LEDs, offering prominent, recessed, and flush bezel styles in various colors including red, green, yellow, blue, white, and orange. They provide high durability with a life expectancy of 100,000 hours, and environmental sealing options up to IP67. Suitable for panel thickness up to 7 mm, they support multiple terminal types such as solder lug, pins, and wire connections, ideal for electrical panel indications and signaling purposes.
Apem Q6F5CXXB12E Panel Mount LED Indicator Specifications:
- Lens: 3 mm diffused epoxy or water clear
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color variants
- Voltage Range: 1.8 to 33 VDC, with specific voltages like 6V, 12V, 24V, 28V
- Luminous Intensity: Up to 1,200 med, Hyper Bright and Super Bright options available
- Viewing Angle: 30-100° depending on model
- Operating Temperature: -30°C to +85°C (epoxy body), -40°C to +65°C (plastic body)
- Max Panel Thickness: 7 mm
- Material: Plated brass bezel in chrome, black, satin grey; Polycarbonate rear body
- Sealing: Optional IP67
- Life Expectancy: 100,000 hours
- Terminals: Solder lug, pins, short wires, wire length up to 200mm
- Mounting Hole: 6.00 +0.15/-0.0 mm
- Torque: 4 cNm
- Max Reverse Voltage: 5 V
- Electrical Specifications: Forward Voltage varies by color and brightness, operating current usually 20 mA.
- Environmental Ratings: Sealed and unsealed variants available, suitable for harsh environments

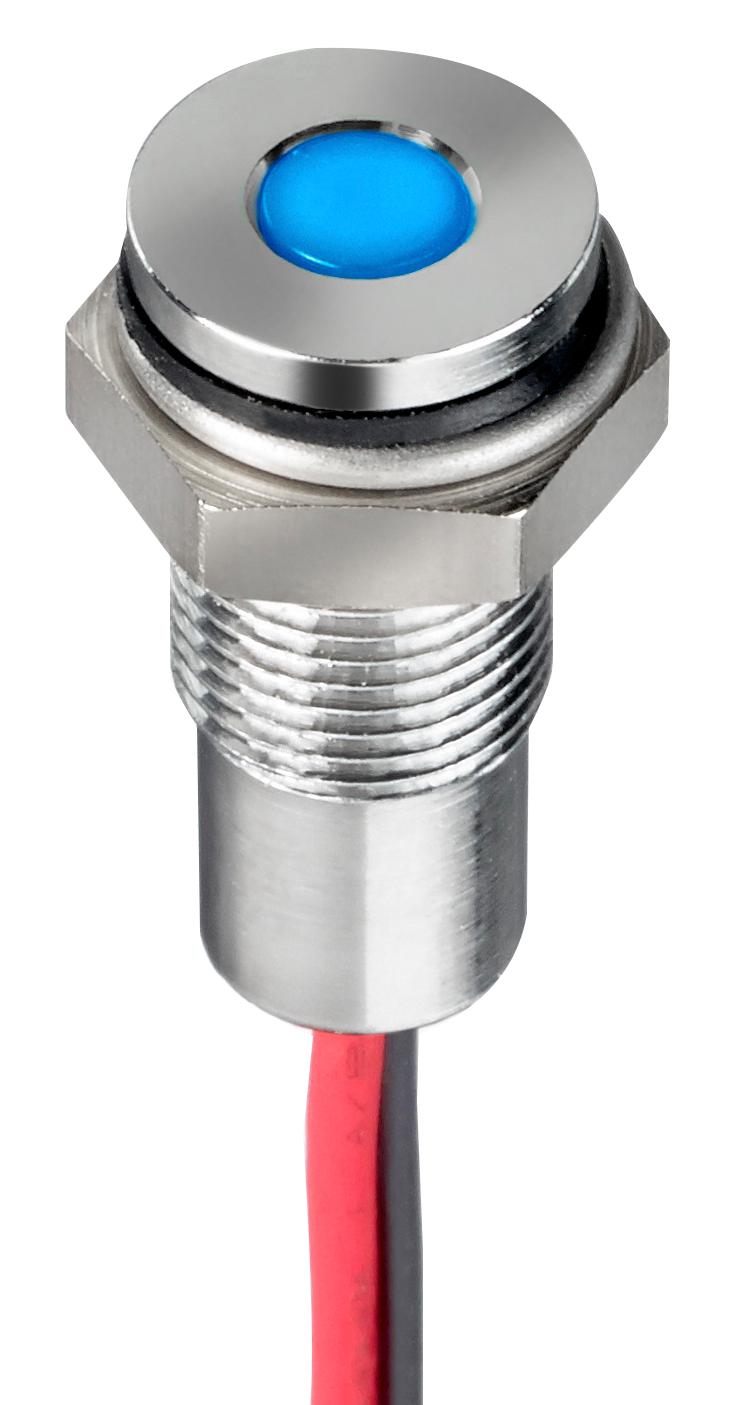

Buy the AMPEM Series Q6 LED Indicator: Q6F5CXXB12E
Purchase the AMPEM Q6 series panel mount LED indicator online today to ensure reliable signal indication in industrial environments. These indicators feature high brightness LEDs, multiple colors, and optional IP67 sealing for harsh conditions. Designed with a 6 mm mounting hole, they support various terminal types including solder lug, pins, and long wires, making installation straightforward. With a lifespan of 100,000 hours and an operating temperature up to 85°C, these LEDs are ideal for control panels, alarms, and machinery, combining performance with ease of use.
Get AMPEM Q6F5CXXB12E today—built for durability, visibility, and versatile panel mounting.
Frequently Asked Questions
Where can I buy Apem Q6F5CXXB12E?
You can click on the BUY or RFQ button to purchase Q6F5CXXB12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5CXXB12E?
You can download the Q6F5CXXB12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5CXXB12E?
Apem
