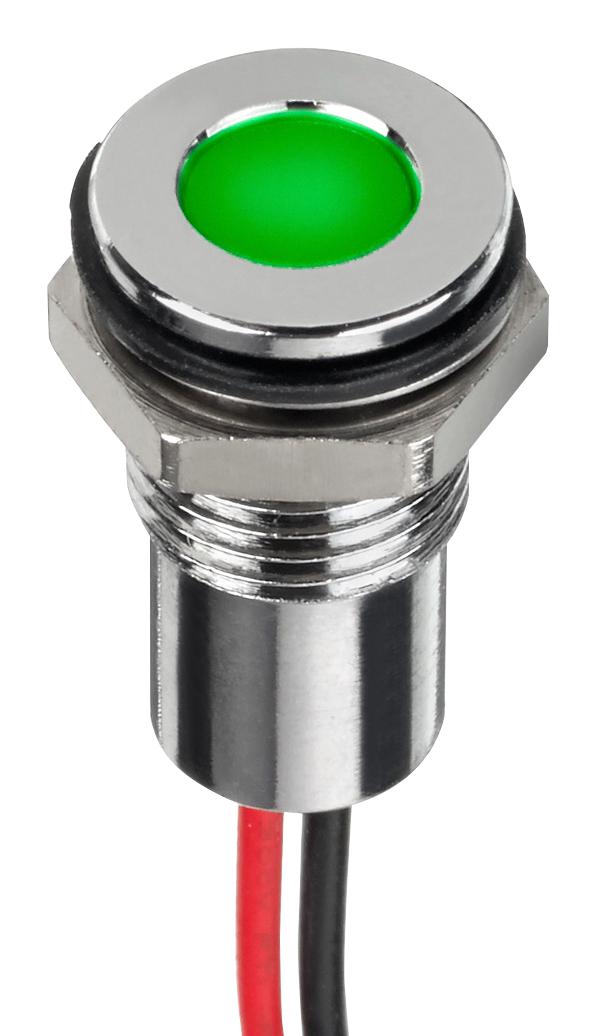

Apem Q6F5CXXHG12E Panel Mount LED Indicator
The Q6 series 6 mm panel mount LED indicators feature high-brightness LEDs with various colors including red, green, yellow, blue, white, and orange. They are designed with prominent, recessed, and flush bezel styles, offering IP67 sealing options for environmental protection. These indicators operate reliably in temperatures from -30°C to +85°C depending on body type and are suitable for panel thicknesses up to 7 mm. With a life expectancy of 100,000 hours, they provide clear visual signals for industrial and control applications with various connection options like solder lug, pins, or wire terminations.
Apem Q6F5CXXHG12E Panel Mount LED Indicator Specifications:
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options available
- Lens Type: 3 mm diffused epoxy or water clear
- Brightness Levels: Standard, Super Bright, Hyper Bright
- Operating Voltage Range: 1.8 V to 33 V DC, with specified variants at 6 V, 12 V, 24 V, 28 V
- Operational Temperature: -30°C to +85°C depending on body type, -40°C to +85°C for epoxy body
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Sealing: IP67 optional
- Max Panel Thickness: 7 mm
- Mounting Hole Diameter: 6 mm
- Materials: Plated brass bezel, molded polycarbonate rear body
- Terminals: Solder lug, pins, or wire terminations (200 mm length typical)
- Torque: 4 cNm
Buy the Buy Brand Q6 Series Panel Mount LED Indicators Part Number Q6F5CXXHG12E Online
Order the Q6 series panel mount LED indicator online today for high-brightness, durable, and versatile visual signaling solutions suitable for industrial and control applications. Featuring various colors, waterproof IP67 sealing options, and multiple connection types like solder lug, wire, or pins, these indicators ensure long-lasting performance even in harsh environments. With a lifespan of 100,000 hours and operating temperatures up to +85°C, they are ideal for panel mounting up to 7 mm thick. Experience quick online purchase for reliable, high-quality LED indicators designed for professional use.
Get Q6 series LED indicators today—built for durability, high brightness, and reliable visual signaling in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q6F5CXXHG12E?
You can click on the BUY or RFQ button to purchase Q6F5CXXHG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5CXXHG12E?
You can download the Q6F5CXXHG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5CXXHG12E?
Apem
