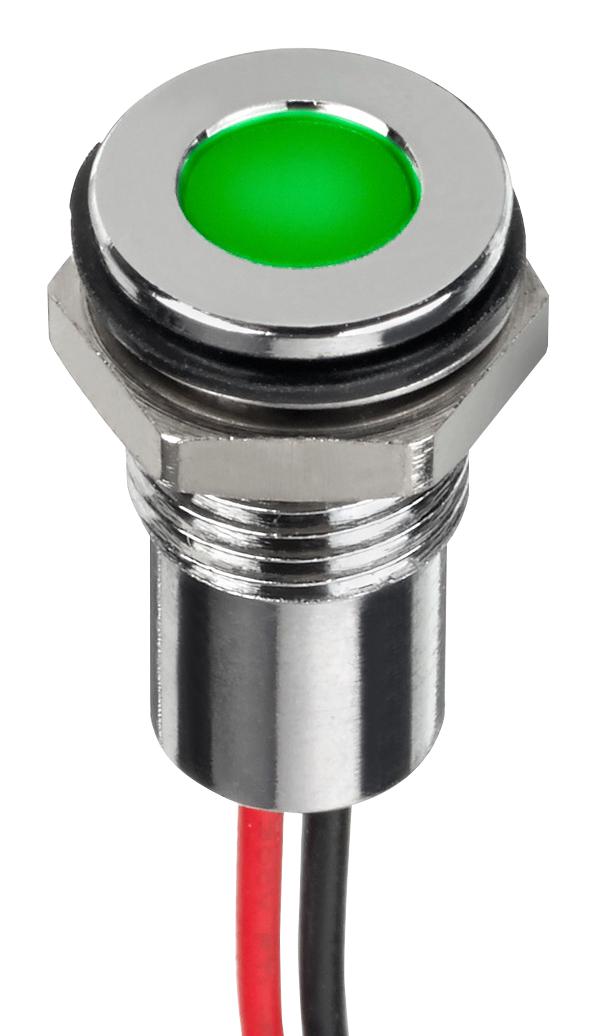

Apem Q6F5CXXHG24E Panel Mount LED Indicator
The Q6 series panel mount LED indicators features 6 mm size with high brightness LEDs, various colors including red, green, yellow, blue, white, and orange, and options for diffused or water-clear lenses. They are designed for easy mounting with solder lug, pins, or wire termination methods, and provide excellent visibility with viewing angles from 30 to 100 degrees. Sealing options up to IP67, plus high durability with a life expectancy of 100,000 hours, make these indicators suitable for diverse industrial applications. They operate within a temperature range of -40°C to +85°C depending on the body material, with maximum reverse voltage of 5 V, and are constructed from plated brass bezel, molded polycarbonate rear body, with finishes in bright chrome, black, or satin grey.
Apem Q6F5CXXHG24E Panel Mount LED Indicator Specifications:
- Size: 6 mm panel mount
- Lens: 3 mm diffused epoxy or water clear
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- Luminous Intensity: Up to 12,000 mcd for super bright and hyper bright types
- Viewing Angle: 30° to 100°, depending on model
- Operating Voltage: 1.8 to 33 VDC, with various standard voltages
- Current: 20 mA max, resistor required for some models
- Sealing: Up to IP67 available, sealed against dust and water
- Temperature Range: -40°C to +85°C, material-dependent
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Material: Plated brass bezel, molded polycarbonate body
- Finish: Bright chrome, black, or satin grey
- Mounting Hole: 6.00 ± 0.15 mm
- Terminals: Solder lug, pins, or wire termination
- Environmental: Sealed options available for outdoor or harsh environments
Buy the Buy Brand Q6 Series Panel Mount LED Indicators Part Number Q6F5CXXHG24E Online
Order the Q6 series panel mount LED indicators online today to enjoy high brightness, durable construction, and versatile mounting options. Ideal for industrial environments, these indicators feature multiple colors including red, green, yellow, blue, white, and orange, with diffused or water-clear lenses for optimal visibility. They are sealed up to IP67, supporting temperatures from -40°C to +85°C, and offer a long life of 100,000 hours. Convenient terminals include solder lug, pins, or long wire options, making installation quick and straightforward. Enhance your control panels and machinery with these reliable, high-performance LEDs, available for immediate purchase online.
Buy Brand Q6 Series LED Indicators now and ensure reliable, bright illumination for your industrial applications with long-lasting performance.
Frequently Asked Questions
Where can I buy Apem Q6F5CXXHG24E?
You can click on the BUY or RFQ button to purchase Q6F5CXXHG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5CXXHG24E?
You can download the Q6F5CXXHG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5CXXHG24E?
Apem
