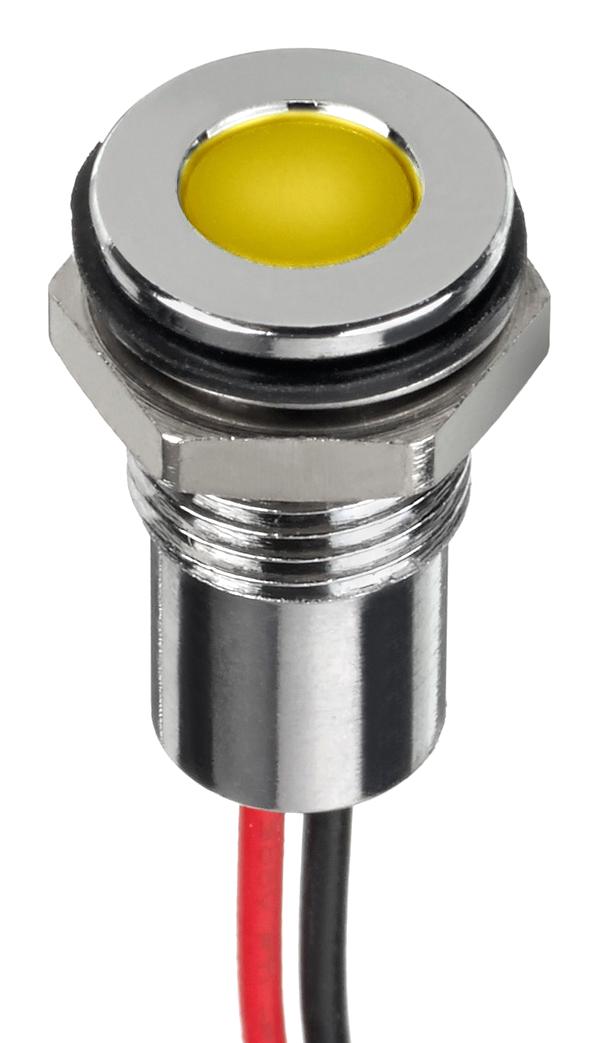

Apem Q6F5CXXHY02E LED Indicator
The Q6 series are 6 mm panel mount LED indicators designed for various electronic and industrial applications. They feature high brightness options, including super bright and hyper bright LEDs, with diffused or water clear lenses. The indicators offer different mounting styles such as prominent, recessed, and flush bezels, with terminal options like solder lug, pins, and wire terminations. Operating voltage ranges from 1.8 V to 28 V DC, with a lifespan of approximately 100,000 hours. Environmental sealing options include IP67 for enhanced durability in harsh conditions.
Apem Q6F5CXXHY02E LED Indicator Specifications:
- Diameter: 6 mm
- Lens Types: Diffused epoxy or water clear
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Operating Voltage Range: 1.8 V to 28 V DC
- Operating & Storage Temperature: -40°C to +85°C (Epoxy body), -30°C to +65°C (Plastic body)
- Panel Thickness Max: 7 mm
- Materials: Plated brass bezel in bright chrome, black, satin grey; molded polycarbonate rear body
- Sealing: IP67 options available
- Terminals: Solder lug, pins, wires (200 mm length)
- Brightness options: Standard, super bright, hyper bright LEDs
- Mountings: Prominent, recessed, flush styles
Buy the Buy Innovative Q6 Series LED Indicators Part Number Q6F5CXXHY02E Online
Enhance your electronic or industrial control systems by ordering the Q6 Series LED indicators online. These 6 mm panel mount indicators feature vibrant brightness levels, various mounting styles such as prominent, recessed, and flush, and terminal options including solder lug, pins, and wire connections. With operating voltages ranging from 1.8 V to 28 V DC and exceptional lifespan of 100,000 hours, they are suitable for demanding applications. Easy to install, sealed for environmental protection, and available in diffused or water clear lenses, these indicators ensure dependable signaling in diverse environments.
Order your Q6 Series LED indicators with high brightness and IP67 sealing today and give your projects reliable, durable signaling solutions.
Frequently Asked Questions
Where can I buy Apem Q6F5CXXHY02E?
You can click on the BUY or RFQ button to purchase Q6F5CXXHY02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5CXXHY02E?
You can download the Q6F5CXXHY02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5CXXHY02E?
Apem
