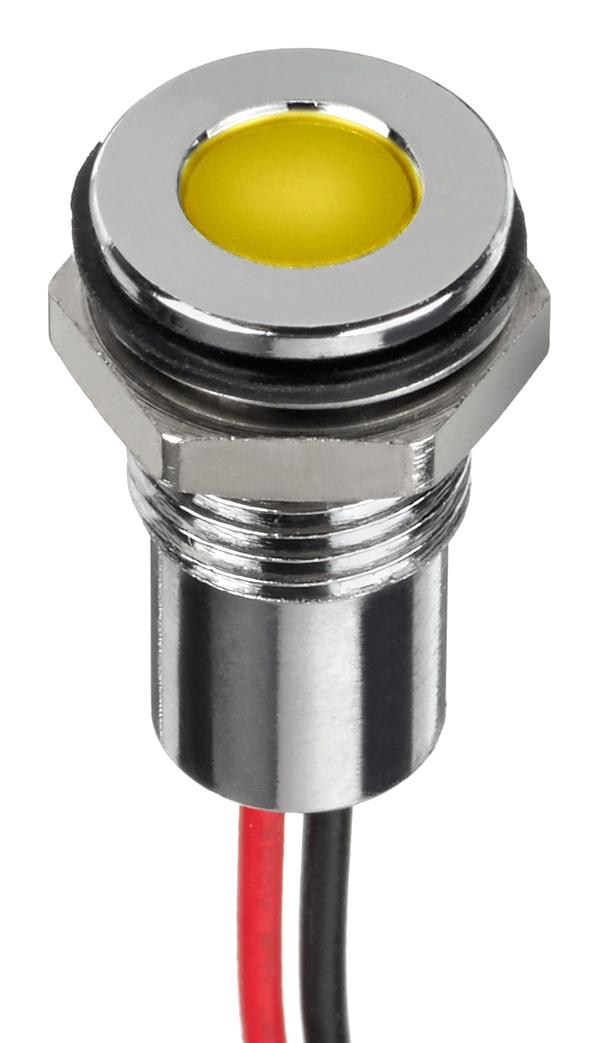

Apem Q6F5CXXHY12E LED Indicator
Q6 series are 6 mm panel mount LED indicators featuring high brightness levels, durable materials including plated brass bezels in chrome, black, or satin grey, and are available with diffused or water-clear epoxy lenses. They operate within -30°C to +85°C, with IP67 sealing options for rugged environments. These indicators include solder lug, pin, or wire terminations, with various LED colors such as red, green, yellow, blue, and white, offering long-lasting performance with a life expectancy of 100,000 hours. Suitable for industrial control panels, these indicators provide excellent visibility and reliable operation.
Apem Q6F5CXXHY12E LED Indicator Specifications:
- Lens Size: 3 mm diffused epoxy or water-clear
- Operating Temperature Range: -30°C to +85°C
- Seal: IP67 sealing option available
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Materials: Plated brass bezel, molded polycarbonate rear body
- Mounting Hole Size: 6.00 +0.15/-0.0 mm
- Panel Thickness: Max 7 mm
- Dielectric withstand voltage: 5 V reverse voltage
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- LED Intensity: Super Bright, Hyper Bright options available
- Electrical Power: Operating voltages from 1.8 V to 33 VDC, 20 mA max current
- Terminals: Solder lug, rear epoxy pins, short body wires, Faston clips
- Sealing: Unsealed or IP67 sealed variants
Buy the Q6 Series LED Indicators: Q6F5CXXHY12E
Discover the high-quality Q6 series LED indicators designed for industrial and control panel applications. Featuring durable construction with plated brass bezels, multiple lens options, and various mounting styles, these indicators ensure clear, bright visibility. They operate across a broad temperature range from -30°C to +85°C and are available sealed for IP67 protection. Choose from multiple LED colors including red, green, yellow, blue, and white, with long-lasting life expectancy of 100,000 hours. Perfect for manufacturing, automation, and instrumentation projects, order conveniently online today for fast delivery and trusted quality.
Order your Q6 series LED indicators in various colors and sealing options today from our online store and enhance the visibility of your control panels with reliable and durable lighting solutions.
Frequently Asked Questions
Where can I buy Apem Q6F5CXXHY12E?
You can click on the BUY or RFQ button to purchase Q6F5CXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5CXXHY12E?
You can download the Q6F5CXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5CXXHY12E?
Apem
