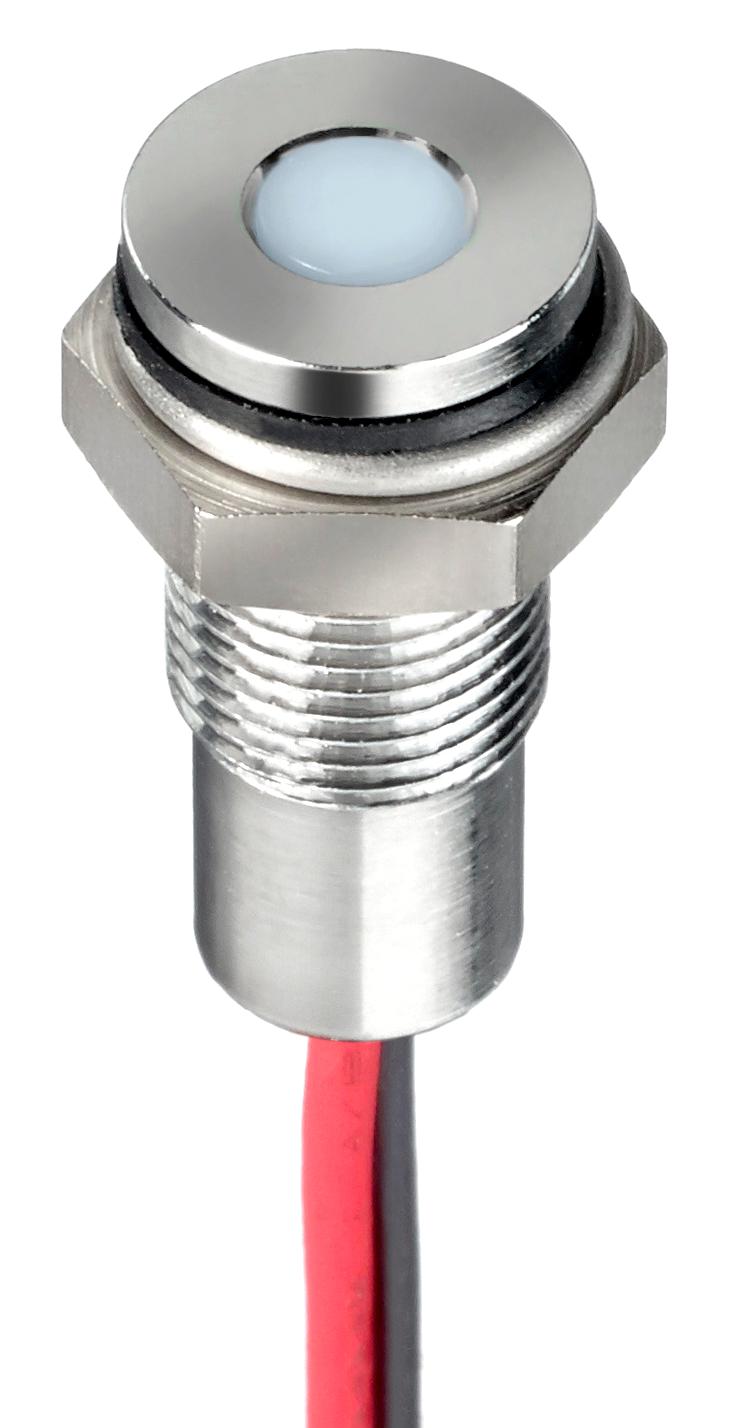

Apem Q6F5CXXW12E Panel Mount LED Indicator
The Q6 series panel mount LED indicators feature 6 mm size with water-clear or diffused epoxy lenses in multiple colors including red, green, yellow, blue, white, and orange. They offer high brightness options—standard, super bright, and hyper bright—with long life expectancy of 100,000 hours. The indicators are designed for easy mounting with various terminal configurations such as solder lug, pins, or wire terminations, and include features like IP67 sealing for rugged environments. Suitable for panel thickness up to 7 mm, they operate within -40°C to +85°C depending on body type, ensuring durability in diverse applications.
Apem Q6F5CXXW12E Panel Mount LED Indicator Specifications:
- Size: 6 mm diameter
- Lens: Diffused epoxy or water clear, 3 mm
- Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color
- Brightness Levels: Standard, Super Bright, Hyper Bright
- Viewing Angle: 30-100° (dependent on model)
- Lifespan: 100,000 hours
- Max Reverse Voltage: 5 V
- Operating Voltage: 1.8 to 33 VDC, with options at 6 V, 12 V, 24 V, 28 V
- Max Panel Thickness: 7 mm
- Sealing: Optional IP67, unsealed versions available
- Materials: Plated brass bezel, moulded polycarbonate rear body
- Terminals: Solder lug, pins, or 200 mm long wires
- Temperature Range: -40°C to +85°C (rear epoxy body), -30°C to +65°C (rear plastic body)
- Environmental Resistance: Sealed option available for harsh environments
Buy the Buy Brand Q6 Series Panel Mount LED Indicators Part Number Q6F5CXXW12E Online
Enhance your electrical or electronic projects with our Q6 series panel mount LED indicators. Available in multiple colors and brightness levels, these LEDs feature rugged construction with IP67 sealing for durability in harsh environments. Easy to install with solder lug, pins, or long wires, they operate across a wide voltage range from 1.8 to 33 VDC. Designed for long life of 100,000 hours, these indicators ensure reliable visual signaling and are perfect for industrial, automation, or control panel applications. Order online easily for quick delivery.
Get Brand Q6 Series Panel Mount LED Indicators today—designed for high visibility, long-lasting durability, and rugged environmental resistance.
Frequently Asked Questions
Where can I buy Apem Q6F5CXXW12E?
You can click on the BUY or RFQ button to purchase Q6F5CXXW12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F5CXXW12E?
You can download the Q6F5CXXW12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F5CXXW12E?
Apem
