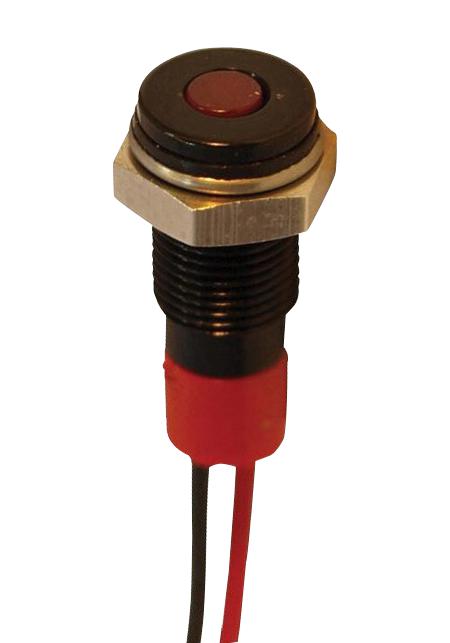

Apem Q6F7BYYRG02E Panel Mount LED Indicator
The Q6 series are 6 mm panel mount LED indicators designed for industrial use, offering various bezel styles including prominent, recessed, and flush. Features include super bright and hyper bright LEDs in multiple colors, with options for diffused epoxy lenses or water clear lenses. The indicators are sealed to IP67 standards for environmental protection, and suitable for panel thickness up to 7 mm. They operate at low voltages from 1.8 to 33 VDC with a life expectancy of 100,000 hours. Mounting options include solder lug, pins, or wires, and the materials consist of plated brass bezels and polycarbonate bodies.
Apem Q6F7BYYRG02E Panel Mount LED Indicator Specifications:
- Diameter: 6 mm
- Bezel Material: Plated brass with bright chrome, black, or satin grey finish
- Body Material: Moulded polycarbonate
- Operating Voltage: 1.8 to 33 VDC, with specific options at 6V, 12V, 24V, 28V
- Current: 20 mA max, resistor needed for desired current
- Viewing Angle: 30-100° (dependent on model)
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 7 mm
- Sealing: IP67 sealed option available
- Mounting: Solder lug, pins, short wires, or rear epoxy wires
- Reverse Voltage: 5 V Max
- LED Colors: Red, Green, Yellow, Blue, White, Orange, bi-color options
- Brightness Types: Standard, Super Bright, Hyper Bright
- Temperature Range: -40°C to +85°C depending on body type
- Solder Terminals: 2.0 x 0.5 mm, matching wire and pin options
- Environmental Compliance: IP67 sealing and temperature ratings as specified
Buy the Innovative LED Indicators Q6F7BYYRG02E – Reliable Panel Mount Indicators for Industrial Applications
Order the Q6F7BYYRG02E series LED indicators online today and enjoy fast delivery. These durable, high-brightness LEDs with IP67 sealing are perfect for industrial control panels. Suitable for multiple mounting styles including solder lug, pins, or wires, these indicators operate efficiently at 1.8 to 33 VDC and offer an impressive life expectancy of 100,000 hours. Available in various colors and brightness levels, they are designed to meet demanding environmental conditions and ensure clear, reliable visual signaling in industrial environments.
Buy the Q6F7BYYRG02E LED indicators now and enhance your industrial systems with reliable, bright illumination and versatile mounting options.
Frequently Asked Questions
Where can I buy Apem Q6F7BYYRG02E?
You can click on the BUY or RFQ button to purchase Q6F7BYYRG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F7BYYRG02E?
You can download the Q6F7BYYRG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F7BYYRG02E?
Apem
