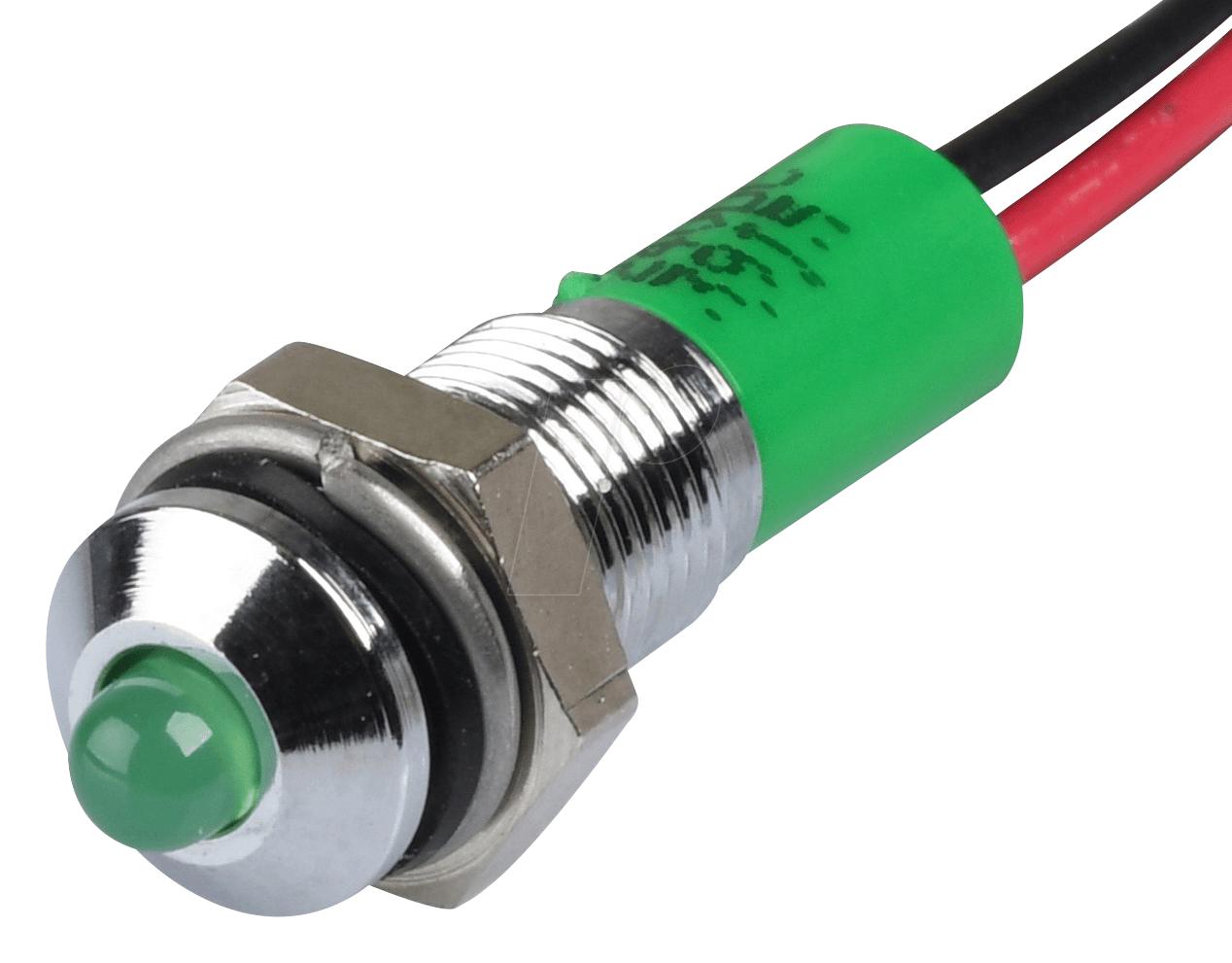

Apem Q6F7CXXG02E Panel Mount LED Indicator
The Q6 series panel mount LED indicators are designed for versatile and high-brightness applications. Featuring 6 mm diffused epoxy lenses in multiple colors including red, green, yellow, blue, white, and orange, these indicators provide excellent visibility with optional super bright and hyper bright intensities. Constructed with plated brass bezels available in chrome, black chrome, or satin grey, and molded polycarbonate rear bodies, they ensure durability and environmental sealing up to IP67. Suitable for mounting on panels up to 7 mm thick, with multiple terminal options including solder lugs, pins, or wire terminations, they operate reliably from -40°C to +85°C depending on the body, with a lifespan of 100,000 hours.
Apem Q6F7CXXG02E Panel Mount LED Indicator Specifications:
- Lens Size: 3 mm diffused epoxy, available in various colors including red, green, yellow, blue, white, orange
- Bezel Material: Plated brass with chrome, black chrome, or satin grey finish
- Rear Body Material: Polycarbonate
- Sealing: Optional IP67 environmental seal
- Operating Temperature: -40°C to +85°C, depending on body
- Maximum Panel Thickness: 7 mm
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Reverse Voltage: Max 5 V
- Electrical Interface: Solder lug, pins, or wire terminations (200 mm length, 24 AWG)
- Mounting Hole: 6 mm
- Voltage Range: 1.8 V to 33 V DC, with resistor required for some voltages
- LED Intensity: Standard, super bright, and hyper bright options for visibility
- Housing Color Options: Bright chrome, black chrome, satin grey
- Operating Current: 20 mA (typical)
- Environmental Rating: IP67 sealing optional (EN60529)
Buy the APEM Series Q6 LED: Panel Mount Illumination Indicator
Purchase the Q6 series LED indicators online today to enhance your industrial or electronic projects with durable, high-brightness illumination. Designed for panel mounting with a 6 mm hole, these indicators come with various color options including red, green, yellow, blue, white, and orange. They feature different brightness levels, including standard, super bright, and hyper bright LEDs, ensuring excellent visibility in any setting. Constructed from robust materials with optional IP67 sealing, they are suitable for demanding environments. Easy to install with solder lug, pins, or wire terminations, these indicators are perfect for industrial control panels, automation systems, and equipment requiring reliable visual status indication. Order now for fast delivery and improve your product's clarity and functionality.
Get APEM Q6 series LED indicator today—built for durability and high brightness in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q6F7CXXG02E?
You can click on the BUY or RFQ button to purchase Q6F7CXXG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6F7CXXG02E?
You can download the Q6F7CXXG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6F7CXXG02E?
Apem
