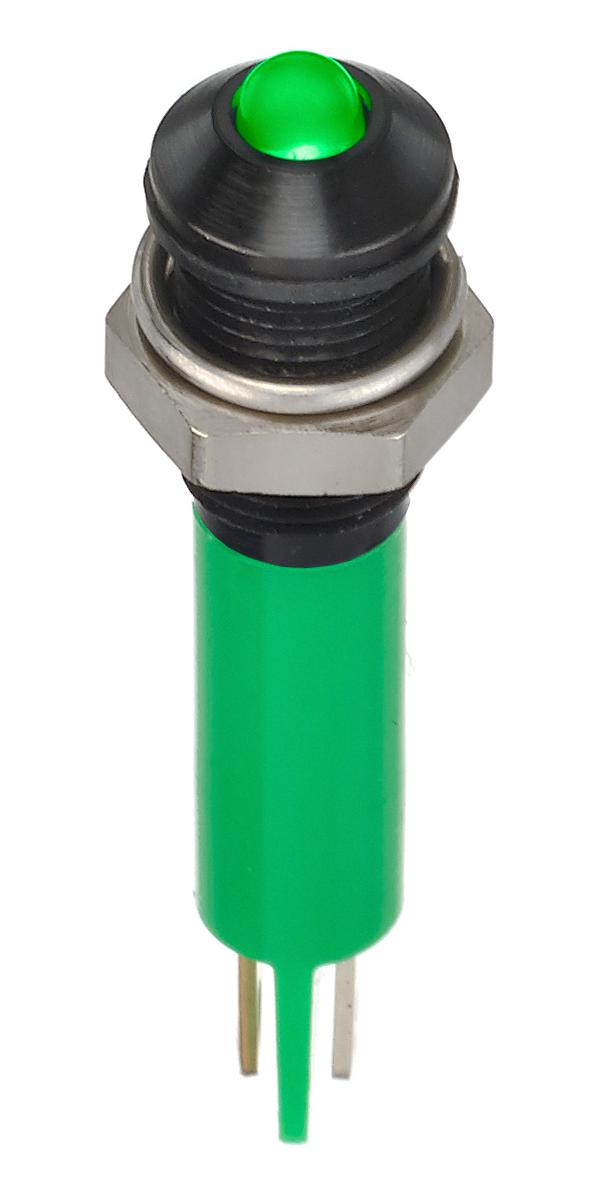

Apem Q6P1BXXHG12E Panel Mount LED Indicator
The Q6 series 6 mm panel mount LED indicators feature high brightness, with options for diffused or water-clear lenses. They include prominent, recessed, and flush bezel styles with various terminal options like solder lug, pins, or wire terminations. Operating temperature ranges from -30°C to +85°C with IP67 sealing available. Designed with plated brass bezels and molded polycarbonate rear bodies, they offer long life expectancy of 100,000 hours, making them ideal for indicator lighting applications in harsh environments.
Apem Q6P1BXXHG12E Panel Mount LED Indicator Specifications:
- Lens: 3 mm diffused epoxy or water-clear
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -30°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° (dependent on model)
- Sealing: IP67 option available
- Material: Plated brass bezel, polycarbonate rear body
- Max Panel Thickness: 7 mm
- Terminals: Solder lug, pins, or wire (200 mm typical)
- Operating Voltage: 1.8 V to 33 V DC, various models available
- Forward Voltage: Ranges from 1.2 V to 28 V depending on color and brightness level
- Current: 20 mA max, resistor recommended for voltage adjustment
- Bezel Finish: Bright chrome, black, satin grey
- Mounting Hole Size: 6 mm
Buy the Buy 6 mm Panel Mount LED Indicator Part Number Q6P1BXXHG12E Online
Order the high-brightness Panel Mount LED Indicator Q6 series online today to enhance your indicator lighting with long-lasting performance. Featuring a variety of colors, bezel styles, and IP67 sealing options, these indicators are perfect for industrial, automation, and control applications. Easy to install with solder lug, pin, or wire terminals, they operate reliably across a wide temperature range from -30°C to +85°C. Ensure your equipment is signaling accurately with these durable, easy-to-mount LED indicators, available for quick online purchase and fast delivery.
Buy 6 mm Panel Mount LED Indicator Q6P1BXXHG12E now and experience bright, reliable indicator illumination suitable for harsh environments.
Frequently Asked Questions
Where can I buy Apem Q6P1BXXHG12E?
You can click on the BUY or RFQ button to purchase Q6P1BXXHG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P1BXXHG12E?
You can download the Q6P1BXXHG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P1BXXHG12E?
Apem
