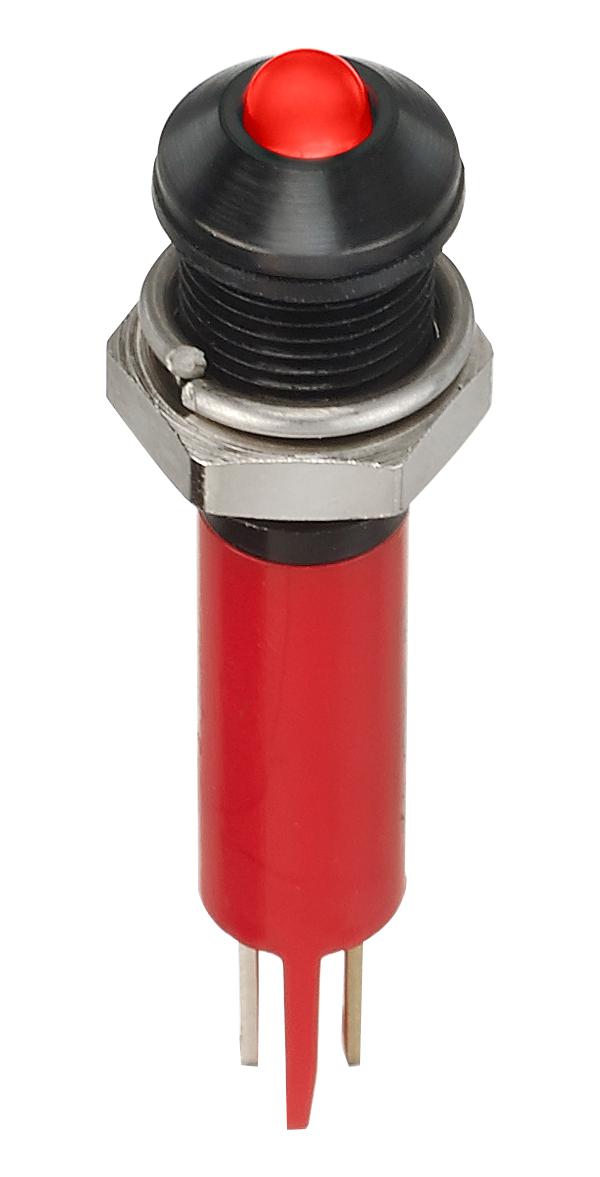

Apem Q6P1BXXHR02E LED Indicator
The Q6 series is a range of 6 mm panel mount LED indicators designed for industrial and electronic applications. These indicators feature water-clear or diffused epoxy lenses, super bright LED options, and prominent or recessed bezel styles. They are rated IP67 for sealing, with operating temperatures from -40°C to +85°C depending on body type. The indicators support multiple terminal configurations, including solder lug, pins, and wires, with various LED colors such as red, green, yellow, blue, white, and orange. Designed for durability and long life, they ensure excellent visibility and easy mounting in panels up to 7 mm thick.
Apem Q6P1BXXHR02E LED Indicator Specifications:
- Lens: 3mm diffused epoxy or water clear
- Bezel Material: Plated brass finished in bright chrome, black, or satin grey
- Body Material: Moulded polycarbonate or epoxy
- Mounting Hole Diameter: 6 mm
- Maximum Panel Thickness: 7 mm
- Sealing: IP67 option available
- Operating Temperature Range: -40°C to +85°C depending on body
- Reverse Voltage: Max 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Lighting Colors: Red, Green, Yellow, Blue, White, Orange, and bi-color options
- LED Intensity: Standard, Super Bright, Hyper Bright available
- Operating Voltage: 1.8 to 33 VDC, with specific voltages like 6V, 12V, 24V, 28V, and corresponding current of 20mA max
- Terminals: Solder lug, pins, short wires, or wires with length up to 200 mm
- Ingress Protection: IP67 sealing option (EN60529)
Buy the Buy APEM Q6 Series LED Indicators Part Number Q6P1BXXHR02E Online
Purchase the APEM Q6 Series LED indicators online today and benefit from durable, high-brightness lighting solutions suitable for industrial and electronic applications. These indicators, with IP67 sealing, support various colors like red, green, yellow, and blue, and are available in different terminal options including solder lug, pins, and wires, making installation easy. Designed for long life expectancy of 100,000 hours, they provide excellent visibility and flexible mounting options for panels up to 7 mm thick, ensuring reliability and performance in demanding environments.
Order your APEM Q6 Series LED indicator today and ensure reliable, high-brightness illumination with IP67 sealing for your industrial projects.
Frequently Asked Questions
Where can I buy Apem Q6P1BXXHR02E?
You can click on the BUY or RFQ button to purchase Q6P1BXXHR02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P1BXXHR02E?
You can download the Q6P1BXXHR02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P1BXXHR02E?
Apem
