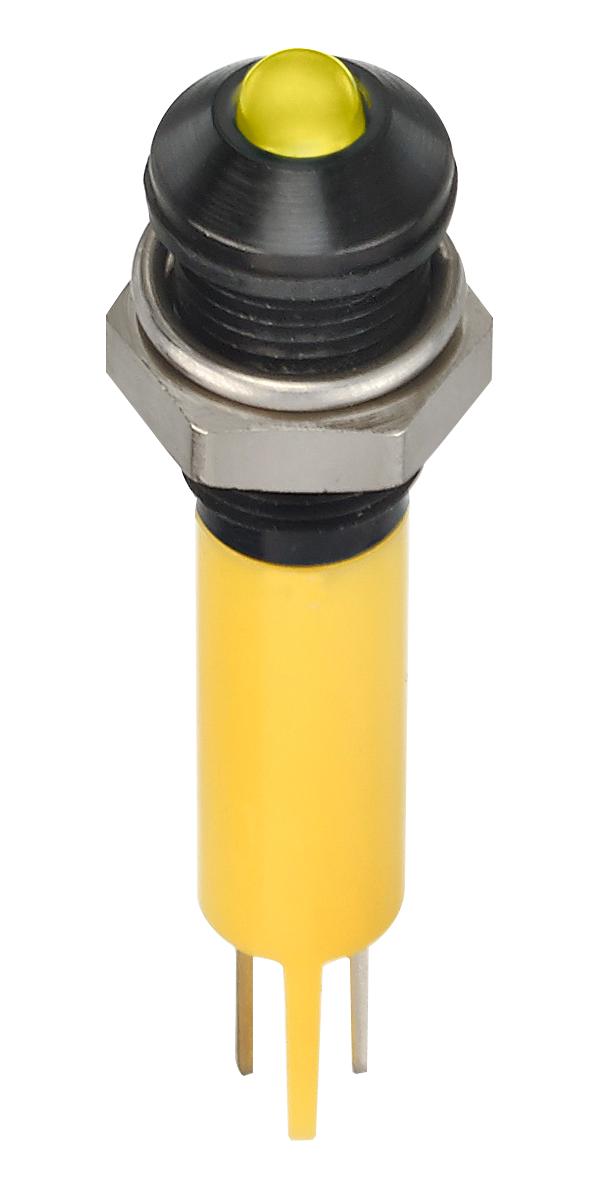

Apem Q6P1BXXHY24E Panel Mount LED Indicators
The Q6 series panel mount LED indicators are designed for industrial applications requiring reliable status indication. These LEDs feature 6 mm diffused epoxy lenses in various colors, including red, green, yellow, blue, white, and orange, available in super bright and hyper bright options. They have a durable construction with plated brass bezels finished in chrome, black, or satin grey, and molded polycarbonate rear bodies. Rated for operating temperatures from -30°C to +85°C depending on body type, with IP67 sealing available for harsh environments. Suitable for panel thickness up to 7 mm, with long-lasting LED life exceeding 100,000 hours, and multiple terminal options such as solder lug, pins, or wire terminations.
Apem Q6P1BXXHY24E Panel Mount LED Indicators Specifications:
- Lens Size: 3 mm diffused epoxy or water clear
- Color Options: Red, green, yellow, blue, white, orange
- Brightness Levels: Super Bright, Hyper Bright
- Viewing Angle: 30-100°
- Maximum Panel Thickness: 7 mm
- Operating Temperature Range: -30°C to +85°C
- Front Voltage (Red): 2V to 40V depending on brightness
- Luminous Intensity: Up to 12,000 mcd for Super Bright, higher for Hyper Bright
- Current: 20 mA (typical)
- Reverse Voltage: Max 5 V
- Sealing: IP67 option available
- Body Material: Moulded polycarbonate with plated brass bezel
- Terminal Types: Solder lug, pins, or wire (200 mm standard)
- Life Expectancy: 100,000 hours
- Operating & Storage Temperature: -40°C to +85°C depending on body type
Buy the APEM Series Q6 LED Indicators: Q6P1BXXHY24E
Enhance your industrial control panels with the Q6 series LED indicators, offering bright, reliable status indication in various colors and brightness levels. Designed for harsh environments, these indicators feature rugged construction with sealed IP67 options, ensuring durability and long operational life exceeding 100,000 hours. Multiple terminal configurations, including solder lug, pins, and wire terminations, make installation flexible and straightforward. Perfect for automation, machinery, and control system applications, these LEDs improve visibility and operational safety effectively, all available to purchase conveniently online.
Buy Q6 series LED indicators now and experience unmatched reliability and performance in industrial control systems.
Frequently Asked Questions
Where can I buy Apem Q6P1BXXHY24E?
You can click on the BUY or RFQ button to purchase Q6P1BXXHY24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P1BXXHY24E?
You can download the Q6P1BXXHY24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P1BXXHY24E?
Apem
