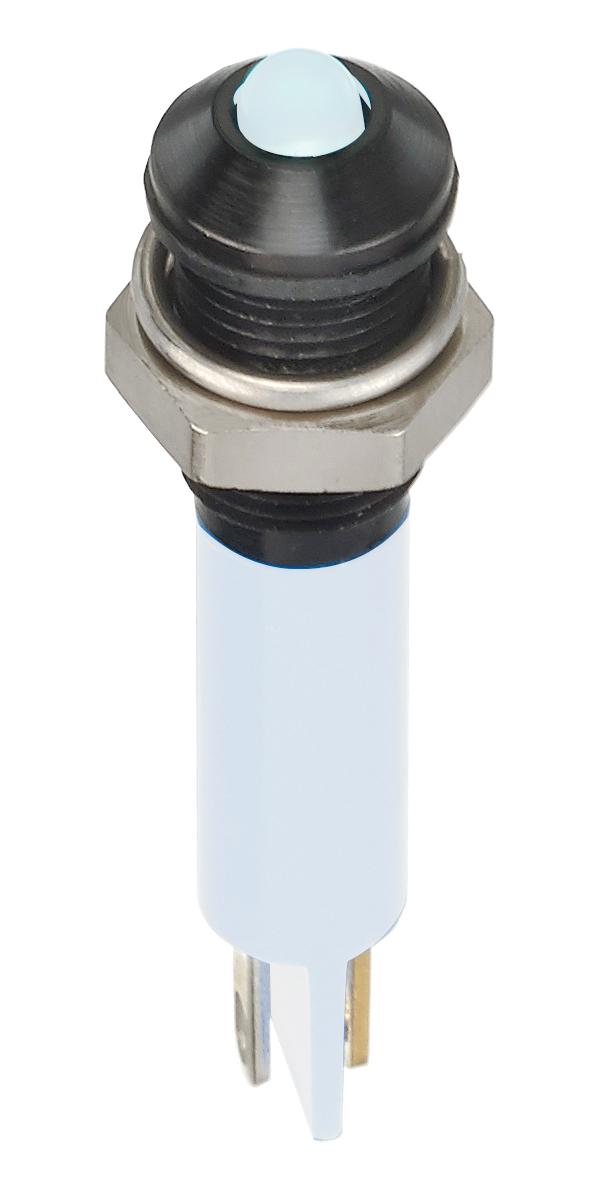

Apem Q6P1BXXW12E Waterproof LED Indicator
A 6mm wide, prominent black bezel designed for outdoor use. It features IP67 waterproof and dustproof sealing, making it ideal for harsh environments. The indicator supports 12V operation, providing high brightness with a white LED option. Its compact size, durable materials including a moulded polycarbonate rear body and plated brass bezel, and multiple terminal options such as solder lug, pins, or wires, make it versatile for industrial and outdoor lighting applications. The life expectancy exceeds 100,000 hours, ensuring long-lasting performance in demanding conditions.
Apem Q6P1BXXW12E Waterproof LED Indicator Specifications:
- Lens Diameter: 6 mm
- Bezel Material: Plated brass, finished in black, chrome, or satin grey
- Body Material: Moulded polycarbonate rear body
- Sealing: IP67 rated waterproof and dustproof
- Operating Voltage: 12 V DC (range 10.8 to 13.2 VDC)
- Current: 20 mA max
- Life Expectancy: Over 100,000 hours
- Maximum Panel Thickness: 7 mm
- Temperature Range: -30°C to +85°C (-22°F to +185°F)
- Viewing Angle: 30-100° depending on model
- Torque: 4cNm
- Ingress Protection: IP67
- Finish Options: Bright chrome, black, satin grey
- Connections: Solder lug, pins, or 200 mm wires (up to 28 VDC)
- Max Reverse Voltage: 5 V
Buy the Brisk Series LED Indicator: Q6P1BXXW12E
Purchase the waterproof LED indicator with black bezel online today. Designed for outdoor and harsh environments, it offers IP67 sealing, high brightness white LED, and a compact 6mm size. Suitable for 12V applications, this durable indicator features long life expectancy exceeding 100,000 hours. Its versatile mounting options include solder lug, pins, or wire termination, making it perfect for industrial controls, outdoor signage, and rugged equipment. Secure your project’s lighting needs easily and reliably by buying online now.
Order your Brisk Series Q6P1BXXW12E waterproof LED indicator today and ensure reliable outdoor performance with high brightness and durable design.
