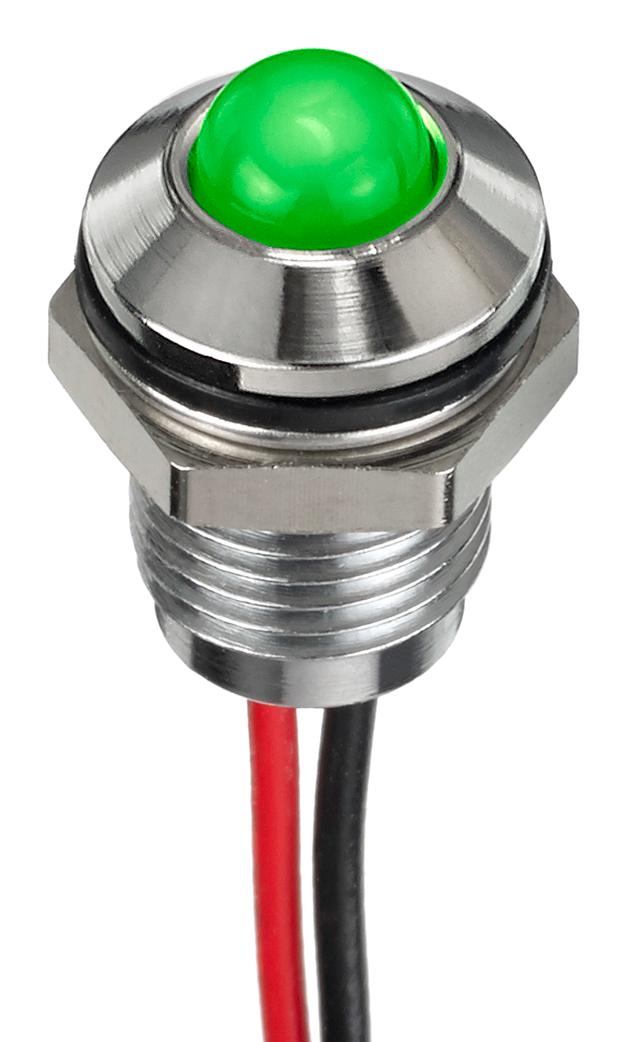

Apem Q6P5CYYRG12E LED Indicator
The Q6 series are 6 mm panel mount LED indicators designed for a variety of industrial and electronic applications. They feature water-clear or diffused epoxy lenses, prominent or flush bezel styles, and multiple terminal options including solder lug, pins, or wire terminations. These LEDs offer high brightness with super bright and hyper bright options, and are sealed to IP67 for environmental protection. With long lifespan up to 100,000 hours and operating temperatures ranging from -40°C to +85°C, they are suitable for demanding environments and panel thicknesses up to 7 mm.
Apem Q6P5CYYRG12E LED Indicator Specifications:
- Lens: Diffused epoxy or water-clear 3 mm
- Bezel Material: Plated brass finished in bright chrome, black, or satin grey
- Rear Body Material: Moulded polycarbonate or epoxy
- Max Panel Thickness: 7 mm
- Operating Temperature Range: -40 °C to +85 °C (epoxy body), -30 °C to +65 °C (plastic body)
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° (depending on model)
- Life Expectancy: 100,000 hours
- Torque: 4 cNm
- Wiring: 200 mm long wires or terminal types including solder lug and pins
- Sealing: IP67 option available
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Bi-color options
- Voltage Range: 1.8 V to 33 VDC, with resistor options for certain models
- Brightness Options: Standard, Super Bright, Hyper Bright LED, with forward voltages up to 28 V
- Current: 20 mA max (recommended) under specified voltages
Buy the Acme Q6P5CYYRG12E – Reliable LED Indicator for Industrial Applications
Enhance your industrial or electronic projects with the Acme LED Indicator from the Q6 series. Featuring high-brightness LEDs, IP67 sealing for tough environments, and versatile mounting options, these indicators ensure long-lasting performance. Choose from various colors including red, green, yellow, blue, white, and orange, as well as bi-color models. The durable construction, long lifespan of up to 100,000 hours, and operating temperature range up to 85°C make these indicators ideal for critical industrial and automation applications. Purchase online now for fast delivery and reliable operation.
Buy Acme Q6P5CYYRG12E now and experience unmatched reliability and high brightness for demanding industrial applications.
Frequently Asked Questions
Where can I buy Apem Q6P5CYYRG12E?
You can click on the BUY or RFQ button to purchase Q6P5CYYRG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P5CYYRG12E?
You can download the Q6P5CYYRG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P5CYYRG12E?
Apem
