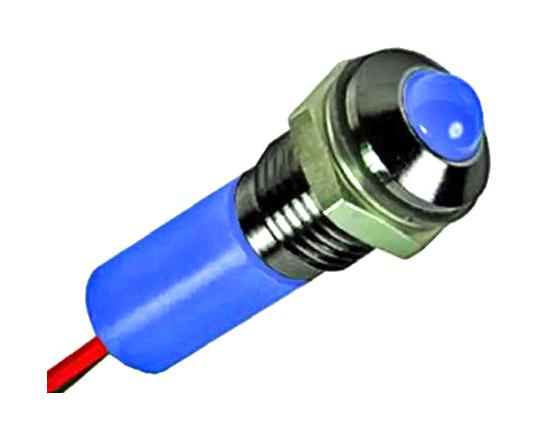

Apem Q6P7BXXB12E LED Indicator
The Q6 series panel mount LED indicators feature 6 mm diameter, water-resistant sealed bezel options, high brightness LEDs, and various mounting and wiring configurations. They operate in temperatures from -40°C to +85°C, with an IP67 sealing rating, making them suitable for demanding industrial environments. These indicators provide long life expectancy of 100,000 hours, with different LED colors including red, green, yellow, blue, white, and orange. Available in recessed, flush, and prominent bezel styles, they support a range of voltages from 1.8V to 33V DC and AC/DC and are equipped with solder lug, pins, or wire terminations.
Apem Q6P7BXXB12E LED Indicator Specifications:
- Diameter: 6 mm
- Sealing: IP67 option available
- Operating Temperature Range: -40°C to +85°C
- Operating Voltage: 1.8V to 33V DC/AC
- LED Colors: Red, Green, Yellow, Blue, White, Orange
- LED Types: Standard, Super Bright, Hyper Bright
- Viewing Angle: 30-100° (dependent on model)
- Lifespan: 100,000 hours
- Material: Moulded polycarbonate rear body, plated brass bezel with chrome, black, or satin grey finish
- Max Panel Thickness: 7 mm
- Terminals: Solder lug, pins, or wire (200 mm length)
- Mounting Styles: Recessed, flush, prominent
- Reverse Voltage Max: 5 V
- Torque: 4 cNm
- Body Diameter: 6 mm
Buy the Brand Series Q6 LED Indicator: Q6P7BXXB12E
Enhance your control panels with the high-quality LED indicator from the Q6 series. Featuring various colors, bright illumination, and sealed IP67 design, these indicators ensure reliable performance in harsh environments. Suitable for industrial use, their versatile mounting options include recessed, flush, and prominent bezel styles. Operating voltages range from 1.8V to 33V DC/AC, supporting your specific power requirements. With a lifespan of 100,000 hours, they deliver long-term durability and visibility, making them an excellent choice for automation and control applications. Buy online now for fast delivery and dependable operation.
Order your Brand Series Q6 LED indicator today and enhance your industrial panels with durable, high-brightness LED solutions built for demanding environments.
Frequently Asked Questions
Where can I buy Apem Q6P7BXXB12E?
You can click on the BUY or RFQ button to purchase Q6P7BXXB12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P7BXXB12E?
You can download the Q6P7BXXB12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P7BXXB12E?
Apem
