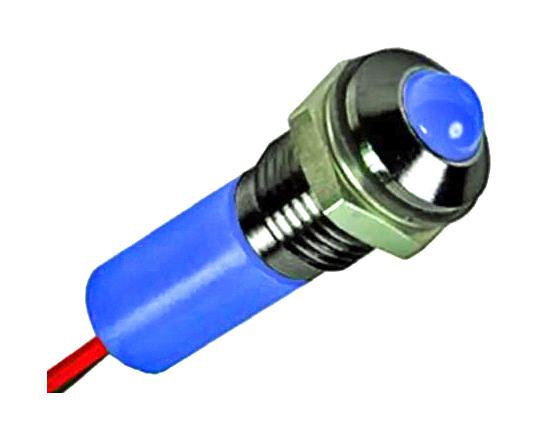

Apem Q6P7BXXB24E Panel Mount LED Indicator
The Q6 series 6 mm panel mount LED indicators offer high brightness with options for diffused or water-clear lenses, and a variety of bezel finishes including bright chrome, black, and satin grey. They feature recessed, flush, and prominent styles, with flexible terminal types such as solder lug, rear epoxy, or wires up to 200 mm. These indicators are suitable for various environments with seal options up to IP67, operating temperature ranges from -40 °C to +85 °C depending on the body material, and a life expectancy of 100,000 hours, making them ideal for industrial, control, and automation applications.
Apem Q6P7BXXB24E Panel Mount LED Indicator Specifications:
- Lens: 3 mm diffused epoxy or water-clear
- Material: Plated brass bezel, molded polycarbonate body
- Bezel Finishes: Bright Chrome, Black, Satin Grey
- Mounting Hole Size: 6.00 ±0.15 mm
- Operating Temperature: -40 °C to +85 °C (body dependent)
- Sealing: Up to IP67 (optional)
- LED Types: Standard, Super Bright, Hyper Bright
- Forward Voltage: Ranges from 2V to 33V depending on color and brightness
- Luminous Intensity: Up to 1200 mcd for standard, higher for brightness variants
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 7 mm
- Terminals: Solder lug, rear epoxy, short wires, Faston (up to 6 wires), wire length 200 mm
- Max Reverse Voltage: 5 V
- Viewing Angle: 30°–100° depending on model
- Torque: 4 cNm
- Environmental Ratings: Optional IP67 sealing for harsh environments
Buy the Buy Brand Q6 Series 6 mm Panel Mount LED Indicators Part Number Q6P7BXXB24E Online
Purchase the Brand Q6 Series 6 mm Panel Mount LED Indicator online today for high-brightness, durable design, a variety of lens options, and sealing up to IP67. With multiple bezel finishes including bright chrome, black, and satin grey, and terminal types such as solder lug, rear epoxy, or wires up to 200 mm, these indicators suit industrial and control applications requiring reliable operation in extreme temperatures from -40°C to +85°C. Easy to install with a mounting hole of 6.00 mm, they offer longevity and environmental resistance, ensuring optimal performance for your projects.
Order your Brand Q6 Series 6 mm Panel Mount LED Indicator today and enhance your industrial control projects with reliable, high-brightness illumination.
Frequently Asked Questions
Where can I buy Apem Q6P7BXXB24E?
You can click on the BUY or RFQ button to purchase Q6P7BXXB24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P7BXXB24E?
You can download the Q6P7BXXB24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P7BXXB24E?
Apem
