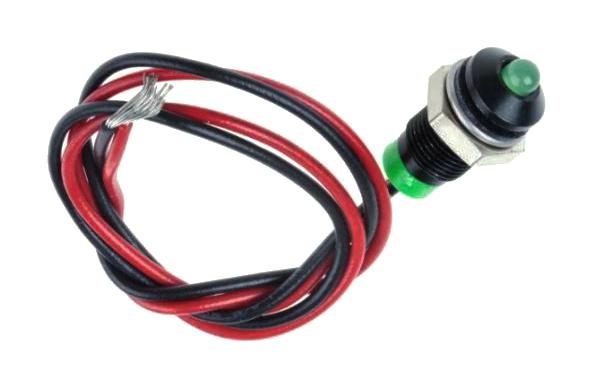

Apem Q6P7BXXG02E Panel Mount LED Indicator
The Q6 series is a range of 6 mm panel mount LED indicators designed for industrial and electronic applications. Featuring water clear or diffused epoxy lenses, super bright LEDs, and optional IP67 sealing, these indicators are suitable for harsh environments. They offer various mounting styles, terminal options, and color choices including red, green, yellow, blue, white, and orange. With a lifespan of 100,000 hours and operating temperature ranges from -40°C to +85°C, they ensure long-lasting, reliable illumination for control panels and status indicators.
Apem Q6P7BXXG02E Panel Mount LED Indicator Specifications:
- Diameter: 6 mm
- Lens Types: Diffused epoxy, Water clear
- LED Colors: Red, Green, Yellow, Blue, White, Orange (standard and super bright options)
- Operating Voltage: 1.8 to 33 VDC (various models), 6V to 28V DC/AC compatibilities
- Forward Voltage: Ranges from 2V to 28V depending on color and brightness level
- Luminous Intensity: Up to 1,200 mcd for standard LEDs; higher for super and hyper bright types
- Viewing Angle: 30° to 100°, depending on model
- Lifespan: 100,000 hours
- Temperature Range: -40°C to +85°C for epoxy body, -30°C to +65°C for plastic body
- Sealing: Optional IP67 with sealing gasket
- Terminals: Solder lug, pins, wires (200 mm)
- Material: Brassed bezel, molded polycarbonate body, epoxy lens
- Max Panel Thickness: 7 mm
- Bezel Finish Options: Bright chrome, black, satin grey
- Torque: 4 cNm
- Max Reverse Voltage: 5 V
Buy the Buy BrandName 6 mm Panel Mount LED Indicator Part Number Q6P7BXXG02E Online
Discover the high-quality 6 mm panel mount LED indicator with various color options and optional IP67 sealing, ideal for industrial control panels. These indicators feature super bright LEDs with a lifespan of 100,000 hours, ensuring durable and reliable operation in rugged environments. Suitable for a range of voltages from 1.8 to 33 VDC, they come with multiple terminal options including solder lug, pins, and wires. Their compact size supports panel thickness up to 7 mm, making them a versatile choice for your electrical and automation projects.
Buy BrandName Q6P7BXXG02E now and experience long-lasting, high-brightness LED indicators perfect for industrial panels and control systems.
