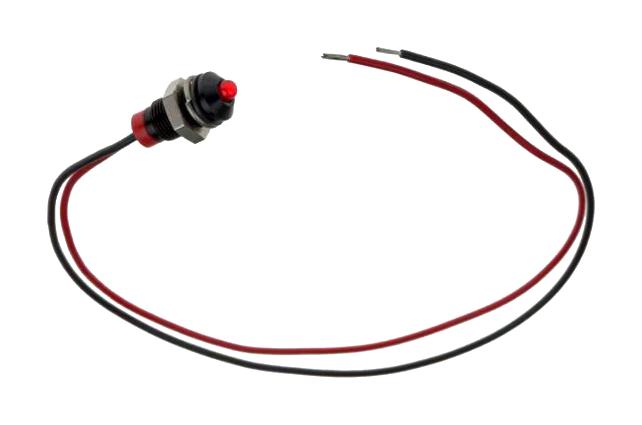

Apem Q6P7BXXR24E LED Indicator
The Q6 series panel mount LED indicators offer a variety of high-brightness LED options with diffused or water-clear lenses, dedicated bezel styles, and multiple terminal types including solder lug, pins, and wire. They feature an IP67 sealing option, high durability with a life expectancy of 100,000 hours, and operate in temperatures from -40°C to +85°C depending on body material. Suitable for control panels and industrial applications, these indicators provide reliable visual signaling with various voltages from 1.8V to 28V DC, featuring prominent or recessed bezel designs and easy mounting options.
Apem Q6P7BXXR24E LED Indicator Specifications:
- Lens Options: 3mm diffused epoxy or water-clear lens
- Bezel Styles: Prominent, recessed, flush
- Bezel Material: Plated brass finished in bright chrome, black, or satin grey
- Operating Temperature Range: -40°C to +85°C (epoxy body), -30°C to +65°C (plastic body)
- Ingress Protection: IP67 sealing option available
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Luminosity: Prominent, super bright, Hyper bright options available
- Electrical Ratings: 1.8V to 28V DC, 20mA operating current, resistor required for desired current
- Terminals: Solder lug, pins, wire (200mm)
- Material: Moulded polycarbonate rear body, plated brass bezel
- Panel Thickness: Max 7mm
- Mounting Hole Diameter: 6mm
- Sealed or unsealed options available
Buy the Marking Series Q6 LED: Q6P7BXXR24E
Discover the high-quality LED indicators of the Q6 series suitable for industrial control panels and equipment. These 6mm panel mount indicators feature durable construction, bright illumination options, and versatile mounting styles like prominent, recessed, or flush bezels. Choose from diffused or water-clear lenses, various terminal configurations, and sealed IP67 models for demanding environments. Ideal for machinery, automation, and control systems, these indicators ensure easy installation and dependable performance across a wide temperature range, providing clear visual status signals for your projects.
Order your Marking Series Q6 LED indicator today and enhance your control panel with reliable, high-brightness signaling components.
Frequently Asked Questions
Where can I buy Apem Q6P7BXXR24E?
You can click on the BUY or RFQ button to purchase Q6P7BXXR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P7BXXR24E?
You can download the Q6P7BXXR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P7BXXR24E?
Apem
