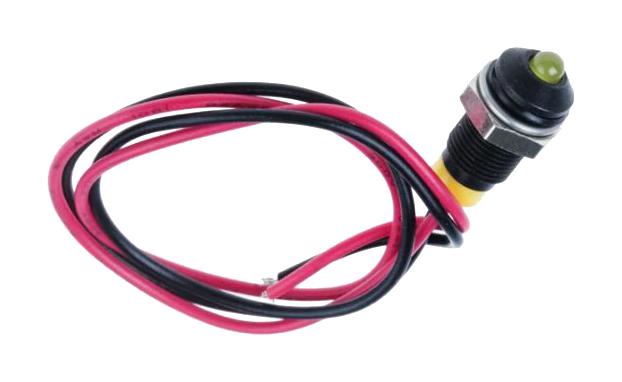

Apem Q6P7BXXY12E LED Indicator
The Q6 series panel mount LED indicators feature 6 mm size with options for prominent, recessed, and flush bezel styles, designed for easy installation with solder lug terminals, pins, or wire terminations. They offer high brightness LEDs in multiple colors such as red, green, yellow, blue, white, and orange, including super bright and hyper bright variants. These indicators are suitable for industrial environments, with IP67 sealing options, operating temperatures from -30°C to +85°C, and a life expectancy of 100,000 hours. Made from molded polycarbonate and plated brass bezel, they ensure durability and visibility across applications.
Apem Q6P7BXXY12E LED Indicator Specifications:
- Size: 6 mm panel mount
- Bezel styles: Prominent, recessed, flush
- LED colors: Red, green, yellow, blue, white, orange (including super bright and hyper bright variants)
- Viewing angle: 30-100° (dependant on model)
- Max reverse voltage: 5 V
- Operating temperature: -30°C to +85°C (rear epoxy body), -30°C to +65°C (rear plastic body)
- Life expectancy: 100,000 hours
- Sealing: IP67 options available
- Materials: Plated brass bezel, molded polycarbonate rear body
- Maximum panel thickness: 7 mm
- Terminals: Solder lug, pins, or wire (200 mm length)
- LED forward voltage: Ranging from 2V to 33V depending on color and brightness
- Operating current: Up to 20 mA
- Solder temperature: 300°C for 3 seconds
- Physical dimensions: Bezel diameter 6 mm, mounting hole diameter 6 mm
- Environmental ratings: Suitable for industrial use, with sealing and temperature resilience
Buy the APEM Q6P7BXXY12E – Reliable LED Indicator for Industrial Applications
Enhance your industrial equipment with the Q6 series LED indicators, offering high brightness, multiple color options, sealing, and durability. Easy to install with solder lug, pins, or wire terminations, these indicators are perfect for panel mounting in harsh environments. They feature a lifespan of 100,000 hours, IP67 sealing, and operate across a wide temperature range, ensuring reliable performance. Purchase online today and upgrade your control panels with these durable, high-performance LED indicators that ensure clear visibility and long-lasting operation under demanding conditions.
Buy Q6 series LED indicators now and experience unmatched brightness and durability for your industrial projects.
Frequently Asked Questions
Where can I buy Apem Q6P7BXXY12E?
You can click on the BUY or RFQ button to purchase Q6P7BXXY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6P7BXXY12E?
You can download the Q6P7BXXY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6P7BXXY12E?
Apem
