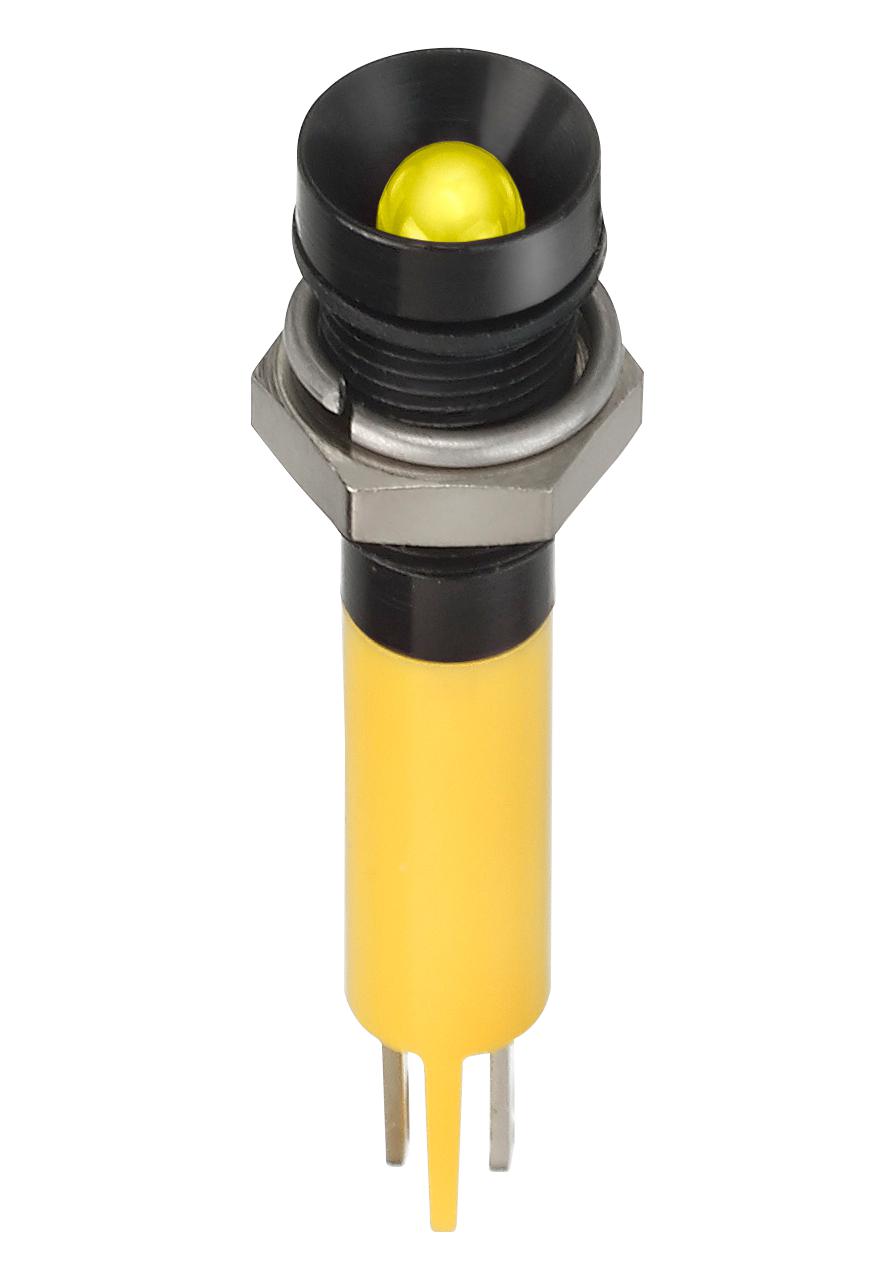

Apem Q6R1BXXY24E Panel Mount LED Indicator
The 6mm recessed black bezel LED indicator features IP67 sealing, making it highly suitable for industrial and outdoor environments that demand waterproof and durable indicators. Designed to operate at 24V DC, it offers reliable illumination with different brightness options, including super bright and hyper bright LEDs in multiple colors like red, green, yellow, blue, white, and orange. Its robust construction, including a plated brass bezel finished in black chrome or satin grey, combined with options for terminal types and sealing, ensures long-lasting performance in demanding conditions.
Apem Q6R1BXXY24E Panel Mount LED Indicator Specifications:
- Diameter: 6mm
- Bezel Material: Plated brass finished in black chrome or satin grey
- Mounting: Panel mount with M6 x 0.5 thread
- Sealing: IP67 (waterproof)
- Operating Voltage: 2VDC to 28VDC (24VDC standard)
- Operating Temperature Range: -40°C to +85°C
- Materials: Epoxy lens in diffused or super/hyper brightness
- Connection Terminals: Solder lug, pins, or 200mm wire leads (24AWG)
- Luminous Intensity: Ranges from 8mcd to 4,500mcd depending on color and brightness
- Viewing Angle: 30-100° depending on model
- Forward Voltage: 2.0V to 3.5V depending on color and brightness
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: SV
- Certifications: UL Recognized, EN60529 (IP67)
Buy the APEM Series Q6 LED: Indicator IP67 Waterproof Panel Mount Light
Order the APEM Q6 series waterproof panel mount LED indicator now to enhance your industrial or outdoor applications. Featuring IP67 sealing and a robust black bezel, this 6mm LED indicator ensures reliable long-term operation even in harsh conditions. With multiple brightness options such as super bright and hyper bright in various colors, it is suitable for status indication, control panels, and safety systems. Easy to install with terminal options including solder lug, pins, and long wires, this indicator combines durability and high visibility for critical signaling needs. Shop online today for fast delivery and expert support.
Get APEM Q6R1BXXY24E today—built for precision, durability, and outdoor industrial signaling.
