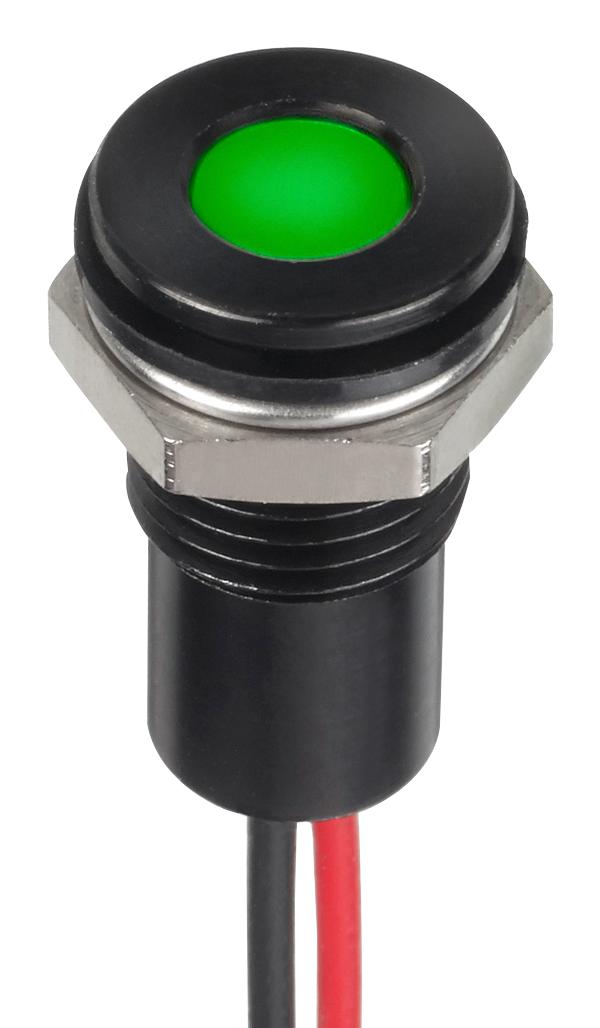

Apem Q8F5BXXHG12E LED Indicator
The Q8 series panel mount LED indicators combine high-brightness LEDs with durable materials, featuring recessed or flush bezel styles and various termination options. Designed for environmental resistance with IP67 sealing, they operate in temperatures from -40 °C to +85 °C. Available in multiple colors including red, green, yellow, blue, white, and orange, these indicators deliver a life expectancy of 100,000 hours and a viewing angle of 30-100°. Suitable for panel thickness up to 7 mm, they are ideal for industrial automation and control applications requiring reliable visual signaling.
Apem Q8F5BXXHG12E LED Indicator Specifications:
- Operating Temperature Range: -40 °C to +85 °C
- Storage Temperature Range: -40 °C to +85 °C
- Ingress Protection: IP67 sealing option available
- Material: Plated brass bezel finished in bright chrome, black, satin grey, or stainless steel in flush version
- LED Types: Super Bright, Hyper Bright, available in multiple colors: Red, Green, Yellow, Blue, White, Orange
- Forward Voltage: 1.8V to 33V depending on LED type and color
- Operating Current: Up to 20mA
- Life Expectancy: 100,000 hours
- Viewing Angle: 30° to 100°
- Max Panel Thickness: 7 mm
- Termination Options: Solder lug, Fastons, pins, or wire terminations (200 mm long)
- Max Reverse Voltage: 5 V
- Sealing: IP67 available
- Mounting Style: Prominent, recessed, flush bezel with various termination and finish options
Buy the Acme Series Q8 LED Indicator: Q8F5BXXHG12E
Purchase the Q8 series LED indicators online today and enjoy exceptional visibility, durability, and reliability for your industrial applications. These high-brightness, sealed indicators are designed to withstand harsh environments, ensuring long operational life. With various colors, mounting styles, and termination options, they provide flexible installation for control panels and automation systems. Enhance your equipment with these rugged, energy-efficient LED indicators—order now and benefit from fast shipping and competitive prices for your signaling needs.
Buy Acme Q8F5BXXHG12E now and experience unmatched reliability and performance with high-brightness LEDs and robust sealing for industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q8F5BXXHG12E?
You can click on the BUY or RFQ button to purchase Q8F5BXXHG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5BXXHG12E?
You can download the Q8F5BXXHG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5BXXHG12E?
Apem
