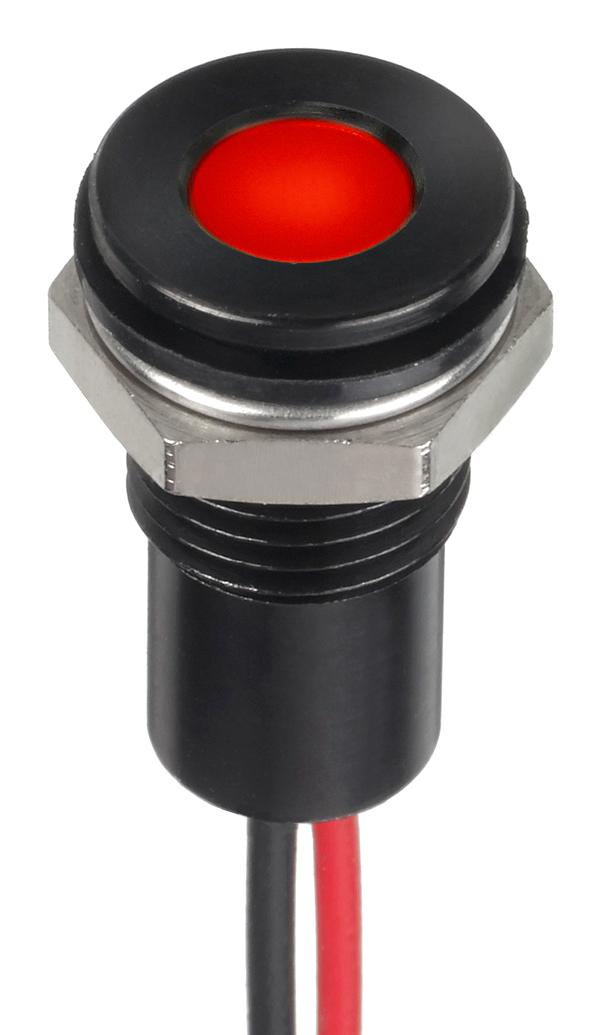

Apem Q8F5BXXHR220E Panel Mount LED Indicator
The Q8 series panel mount LED indicators offer high brightness and long life, featuring 8 mm size, diffused epoxy lens options, and various bezel styles including recessed and flush designs. They are available with standard, hyperbright, and super bright LEDs, ensuring excellent visibility across multiple environments. The indicators support a variety of terminal connections such as solder lug, faston, pins, and wire terminations, with environmental sealing options up to IP67. Suitable for panel thicknesses up to 7 mm, they are mounted easily with robust materials including plated brass and stainless steel bezels, ideal for industrial and manufacturing applications.
Apem Q8F5BXXHR220E Panel Mount LED Indicator Specifications:
- Size: 8 mm diameter
- Lens: 5 mm diffused epoxy or water clear
- LED Brightness: Standard, hyperbright, super bright options
- Viewing Angle: 30-100° depending on model
- Reverse Voltage: Max 5 V
- Operating Voltage: 1.8 to 33 VDC, 110 V, 220 V AC options
- Operating Current: Typically 20 mA at 20 VDC, 6 mA at 110 VAC, 3 mA at 220 VAC
- Luminous Intensity: Up to 110,000 med for super bright LEDs
- Sealing: Up to IP67 with sealing option (EN60529)
- Operating Temperature Range: -30°C to +85°C depending on body type
- Material: Moulded polycarbonate rear body, plated brass bezel, stainless steel in flush version
- Panel Thickness: Max 7 mm
- Terminals: Solder lug, fastons, pins or wires (200 mm length)
- Mounting: Recessed or flush bezel styles
- Life Expectancy: 100,000 hours
- Torque: 20-25 cNm
Buy the Buy Brand X 8 mm Panel Mount LED Indicator Part Number Q8F5BXXHR220E Online
Purchase the Brand X 8 mm Panel Mount LED Indicator online today to enhance your control panel visibility. Designed with high brightness LEDs, multiple lens options, and robust materials, this indicator delivers reliable performance in harsh environments. Available in diffused or water clear lenses, with sealed IP67 variants, supporting various terminal connections including solder lug, faston, pins, and wires. Easy to install and suitable for panel thicknesses up to 7 mm, this versatile indicator ensures long-term durability, making it an excellent choice for industrial, manufacturing, and automation applications.
Get Brand X Q8F5BXXHR220E today—built for high visibility, long-lasting durability, and versatile mounting options for industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q8F5BXXHR220E?
You can click on the BUY or RFQ button to purchase Q8F5BXXHR220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5BXXHR220E?
You can download the Q8F5BXXHR220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5BXXHR220E?
Apem
