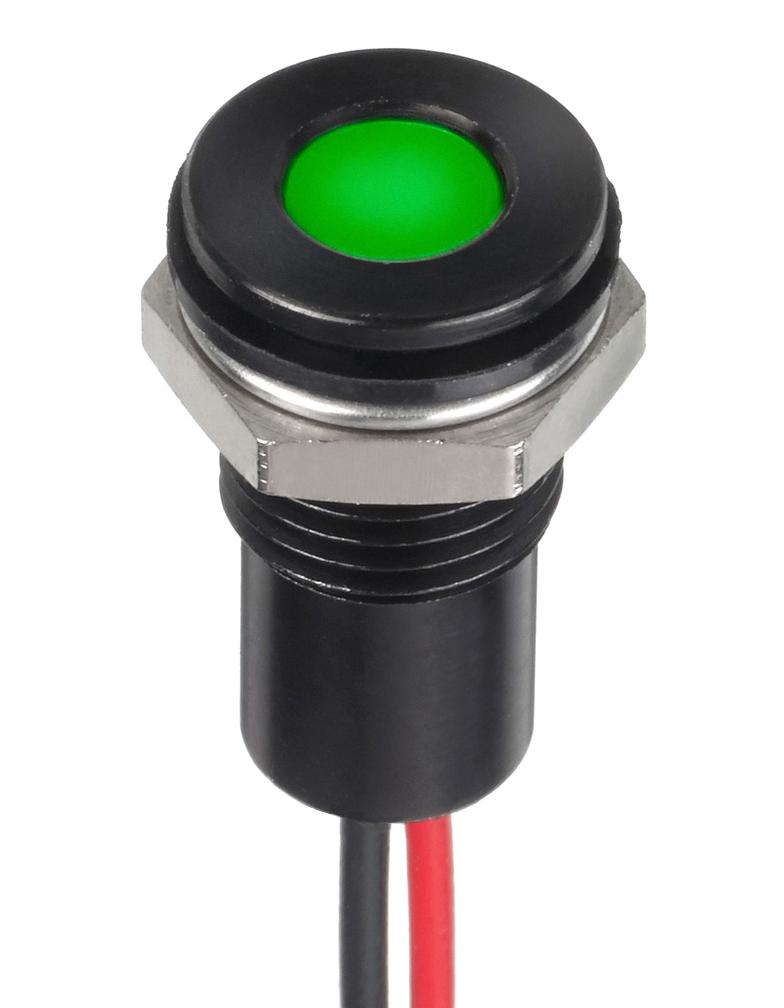

Apem Q8F5BYYHRG12E LED Indicator
The Q8 series panel mount LED indicators feature 8 mm diffused epoxy lenses with high brightness LEDs for visibility. They offer prominent, recessed, and flush bezel styles with various termination options, including solder lug, fastons, pins, or wires. Compatible with operating voltages from 1.8 V up to 235 VAC, these indicators are suitable for diverse industrial and control applications. Sealed IP67 variants provide environmental protection. Made with durable materials like plated brass, stainless steel, and molded polycarbonate, they ensure long life and reliability in demanding environments.
Apem Q8F5BYYHRG12E LED Indicator Specifications:
- Lens Type: 5 mm diffused epoxy or water clear
- LED Brightness: Super Bright and Hyper Bright options available
- Voltage Range: 1.8 V to 235 VAC, including 110 VAC and 220 VAC
- Viewing Angle: 30-100° (depending on model)
- Life Expectancy: 100,000 hours
- Terminal Types: solder lug, fastons, pins, or wire terminations
- Sealing: IP67 sealing option
- Operating Temperature: -40°C to +85°C (epoxy body), -30°C to +65°C (plastic body)
- Materials: plated brass bezel, stainless steel 316L (flush version), molded polycarbonate rear body
- Maximum Panel Thickness: 7 mm
- Bezel Finish: Bright chrome, black, satin grey, or stainless steel
- Max Reverse Voltage: 5 V
- Operating Current: up to 20 mA depending on LED color and type
- Physical Size: 8 mm diameter, suitable for panel mounting
Buy the Acem Series Q8 LED Indicators: Q8F5BYYHRG12E
Purchase the high-quality LED indicator from the Acem Series Q8F5BYYHRG12E today. Designed with durable materials, these indicators feature super bright LEDs, multiple termination options, and IP67 sealing for environmental protection. Perfect for industrial and control applications, they come in various bezel styles and sizes, including prominent and flush mounts. With an operating voltage that ranges from low to high AC/DC voltages, these indicators offer long life expectancy and reliable performance. Get your LED indicator now for efficient, clear visual signaling in demanding environments.
Order your Acem Series Q8F5BYYHRG12E LED indicator today and ensure reliable, high-brightness illumination for your control panels and industrial equipment.
Frequently Asked Questions
Where can I buy Apem Q8F5BYYHRG12E?
You can click on the BUY or RFQ button to purchase Q8F5BYYHRG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5BYYHRG12E?
You can download the Q8F5BYYHRG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5BYYHRG12E?
Apem
