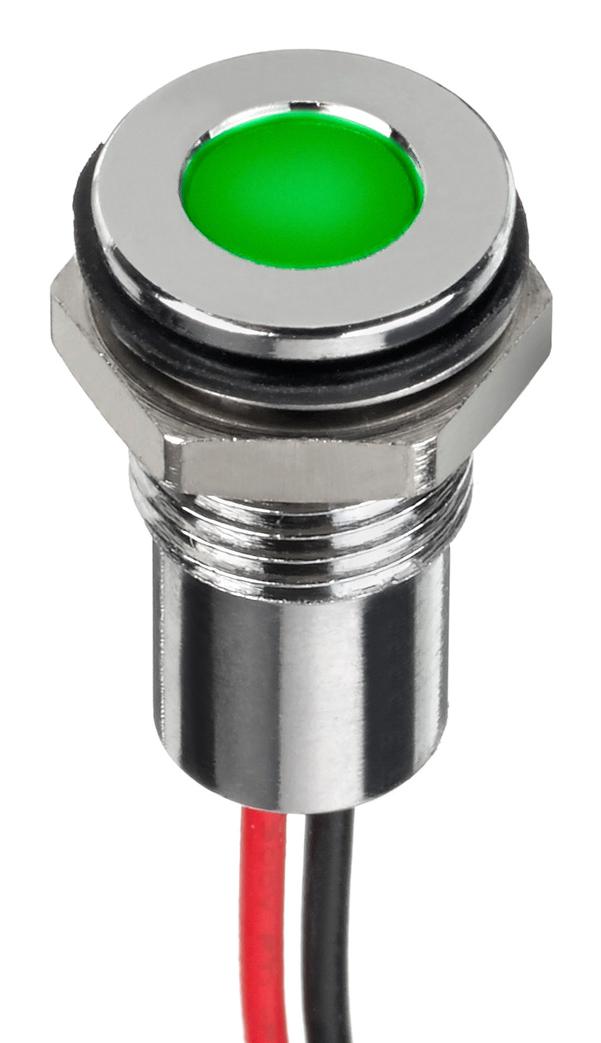

Apem Q8F5CXXHG110E LED Indicator
The Q8 series panel mount LED indicators feature 8 mm diameter lenses with super bright LEDs, available in prominent and flush bezel styles. Constructed with durable materials such as plated brass or stainless steel 316L, these indicators support various mounting options including solder lug, faston terminals, pins, or wire terminations. They offer high luminous intensity (up to 110,000 mcd), wide viewing angles, and IP67 sealing for harsh environmental conditions. Operating voltage ranges from 1.8 V to 235 V DC/AC, with a lifespan of 100,000 hours, suitable for industrial signaling and control applications.
Apem Q8F5CXXHG110E LED Indicator Specifications:
- Lens Diameter: 8 mm
- Lens Type: Diffused epoxy or water clear
- Bezel Materials: Plated brass with chrome, black, satin grey finishes, or stainless steel 316L
- Mounting: Panel mount with solder lug, faston terminals, pins, or wires
- Environmental Sealing: IP67 (optional)
- Operating Voltage: 1.8 V to 235 V DC/AC depending on model
- Operating Current: Max 20 mA
- Viewing Angle: 30-100° (dependant on model)
- Luminous Intensity: Up to 110,000 mcd for super bright LEDs
- Lifespan: 100,000 hours
- Max Panel Thickness: 7 mm
- Temperature Range: -40°C to +85°C (epoxy body), -30°C to +65°C (plastic body)
- Reverse Voltage: Max 5 V
- Torque: 20 to 25 cNm
Buy the APEM Series Q8 LED Indicator Durable Panel Mount: Q8F5CXXHG110E
Purchase the Q8 series LED indicators online today to enjoy durable construction, wide voltage compatibility, high luminous intensity, and IP67 sealing. Perfect for industrial signaling, control panels, and machinery, these indicators provide clear visual alerts with long-lasting performance. The range includes various bezel styles, mounting options, and high brightness levels ensuring they meet your specific application needs. Shop now to benefit from quick delivery, competitive pricing, and trusted quality that guarantees reliable operation in demanding environments.
Buy Q8 LED indicators now and experience unmatched reliability and high brightness for industrial signaling systems.
