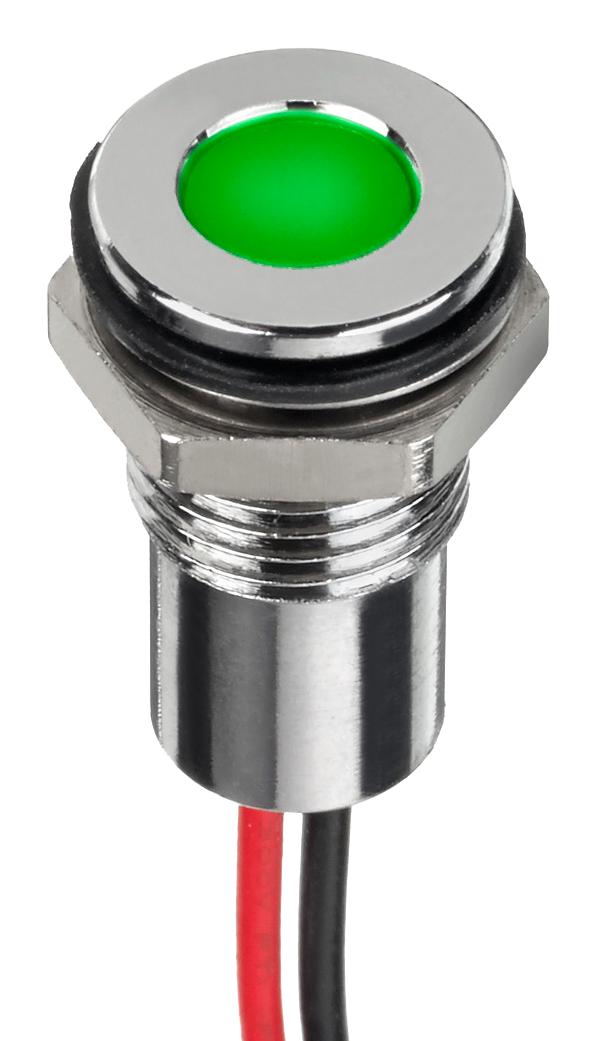

Apem Q8F5CZZRYG12E Panel Mount LED Indicator
The Q8 series panel mount LED indicators feature 8 mm size with prominent and flush bezel styles, providing high visibility with super bright LEDs and multiple color options including red, green, yellow, blue, white, and orange. They are designed for harsh industrial environments with IP67 sealing options and operate across a wide temperature range from -40°C to +85°C. The series supports various termination types such as solder lug, faston terminals, pins, or wire terminations, and includes models with dual or tri-color illumination for versatile indicator applications.
Apem Q8F5CZZRYG12E Panel Mount LED Indicator Specifications:
- Size: 8 mm
- Sealing: IP67 (optional)
- Operating Temperature: -30°C to +85°C (rear epoxy), -40°C to +85°C (rear plastic)
- Bezel Material: Bright chrome, black, satin grey, or stainless steel 316L
- LED Colors: Red, green, yellow, blue, white, orange, and tri-color options
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Operating Voltage: 1.8 to 33 VDC (typical), 6 to 240 VAC (optional)
- Max Reverse Voltage: 5 V
- Electrical Current: 20 mA max
- Max Panel Thickness: 7 mm
- Mounting: Solder lug, faston terminals, pins, wire terminations
- Dimensions: Approximate mounting hole diameter 8 mm, with various body lengths and bezel styles
- Material: Molded polycarbonate, plating options available
- Torque: 20 to 25 cNm
Buy the Brand Q8 – Reliable Indicator for Industrial Applications
Order the Q8 series panel mount LED indicators today online and ensure your industrial setups are equipped with high-quality, durable, and visually striking indicators. Designed for demanding industrial environments, these indicators feature super bright LEDs in various colors, IP67 sealing, and multiple mounting options to suit your specific application needs. Whether for status indication or control panels, our easy-to-order indicators provide long life, excellent visibility, and reliable performance, making them an essential choice for professionals seeking top-tier industrial indicators.
Buy Q8 series LED indicators now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem Q8F5CZZRYG12E?
You can click on the BUY or RFQ button to purchase Q8F5CZZRYG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5CZZRYG12E?
You can download the Q8F5CZZRYG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5CZZRYG12E?
Apem
