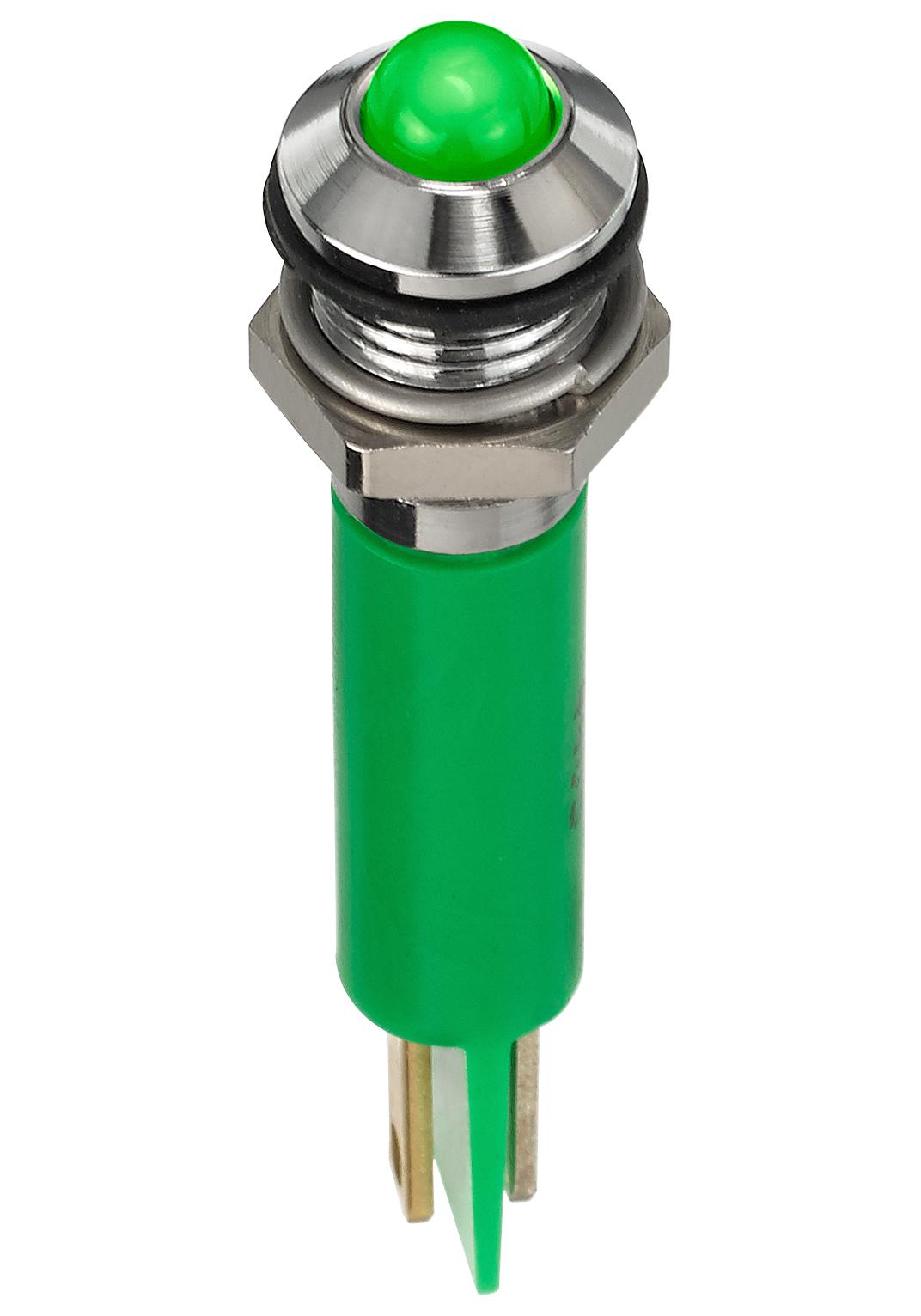

Apem Q8P1CXXHG220E LED Indicator Light
The Q Series 8mm panel mount LED indicators are designed for versatile applications in industrial and equipment signaling. Featuring various LED types including standard, super bright, and hyper bright in multiple colors, these indicators offer a range of voltages from 2VDC to 220VAC, with IP67 sealing for durability. They include options with prominent or recessed bezels, multiple terminal types such as solder lugs, pins, and wire terminations, and are suitable for panel thickness up to 7mm. The indicators operate at a life expectancy of 100,000 hours, with high luminous intensity for clear visibility.
Apem Q8P1CXXHG220E LED Indicator Light Specifications:
- Diameter: 8mm (.315 inch)
- Voltage Range: 2VDC to 220VAC
- Current: 20mA (typical)
- Viewing Angle: 30-100 degrees
- Life Expectancy: 100,000 hours
- Operating Temperature: -40°C to +85°C
- Sealing: IP67 (optional)
- Bezel Finish: Bright Chrome, Black Chrome, Satin Grey
- Terminals: Solder lug, pins, wire (200mm)
- Panel Thickness Max: 7mm
- Reverse Max Voltage: 5V
- Forward Voltage: 2.0V to 3.3V depending on color
- LED Types: Standard, Super Bright, Hyper Bright
- Colors: Red, Green, Yellow, Blue, White, Orange, RGB combinations
Buy the APEM Series Q LED Indicators: Q8P1CXXHG220E
Purchase the durable LED Indicator Light today and enhance your device visibility with reliable, high-quality lighting solutions. Designed with versatile voltages and sealing options, these indicators are perfect for industrial panels, control systems, and machinery. Our LED indicators feature long operational life, wide viewing angles, and various mounting options including prominent or recessed bezels. Whether you need standard or high brightness LEDs in multiple colors, this product ensures clear indications, excellent durability, and easy installation. Buy now to improve your equipment's signaling efficiency.
Get APEM Q8P1CXXHG220E today—built for precision, high visibility, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Apem Q8P1CXXHG220E?
You can click on the BUY or RFQ button to purchase Q8P1CXXHG220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P1CXXHG220E?
You can download the Q8P1CXXHG220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P1CXXHG220E?
Apem
